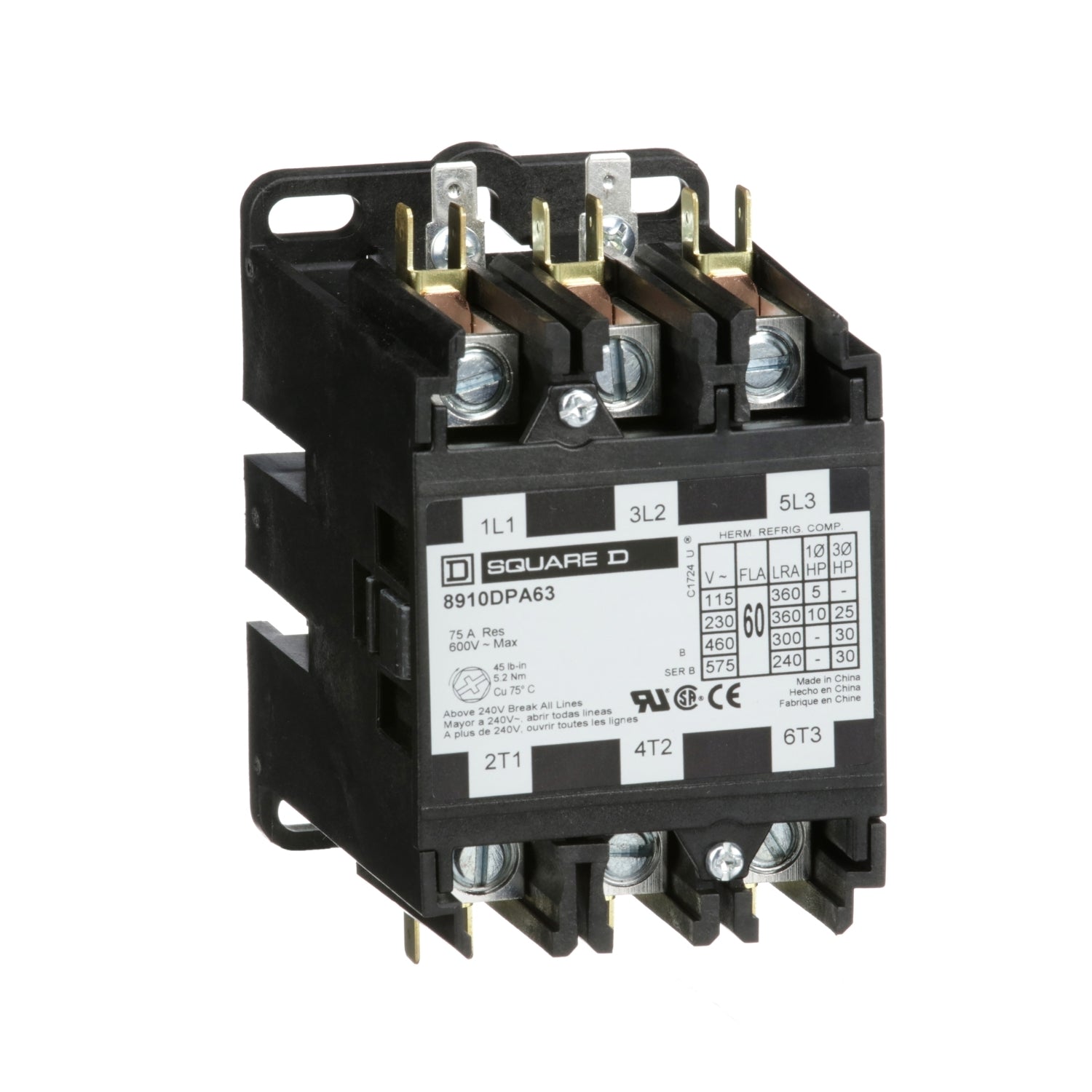

8910DPA63V09 | Schneider Electric Contactor, Definite Purpose
- Regular price
- $274.00
- Sale price
- $274.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 8910DPA63V09
Description
The 8910DPA63V09 is a definite purpose magnetic contactor designed specifically for heating, air conditioning, and refrigeration applications. This three-pole contactor features a maximum current rating of 60 A and a resistive current rating of 75 A, suitable for various load conditions. It supports motor HP ratings ranging from 5 HP at 115 VAC single phase to 30 HP at 575 VAC three phase, accommodating a wide range of operational requirements.
Equipped with a nonreplaceable coil, the contactor is available with a 208/240 VAC 60 Hz coil voltage configuration. It features straight-through wiring for simplified installation and maintenance. The compact dimensions of 4.06 inches by 2.56 inches by 3.67 inches (103 mm x 65 mm x 93 mm) ensure space-efficient integration into electrical systems.
Technical Specifications
|
Part # |
8910DPA63V09 |
|
Category |
Contactors & Starters |
|
Subcategory |
Definite Purpose Contactor |
|
Product or Component Type |
Definite Purpose Contactor |
|
Line Rated Current |
60 A |
|
Number of Poles |
3P |
|
Pole contact composition |
3 NO |
|
Range of Product |
DPA |
|
[Ue] rated operational voltage |
600 V AC |
|
[Uc] control circuit voltage |
208...240 V AC 60 Hz, 220 V AC 50 Hz |
|
Phase |
3 phase |
Information About 8910DPA63V09
The 8910DPA63V09 definite purpose magnetic contactor is engineered specifically for applications in heating, air conditioning, and refrigeration systems. These contactors are part of the 8910DP series, designed to handle a wide range of electrical loads with robust performance capabilities. They are rated up to 120 amperes resistive and can manage motors up to 50 HP at 600 VAC.
This three-pole contactor provides a full load rating of 60 amperes and a resistive rating of 75 amperes, ensuring reliable operation across varying electrical conditions. It supports motors with specific power requirements: 5 HP at 115 VAC single phase, 10 HP at 230 VAC single phase, 25 HP at 230 VAC three phase, 30 HP at 460 VAC three phase, and 30 HP at 575 VAC three phase.
The contactor features a nonreplaceable coil available in multiple voltage configurations, with the 208/240 VAC 60 Hz coil specified for this model. Its design includes straight through wiring for simplified installation and maintenance. Physical dimensions of the contactor measure 4.06 inches in length, 2.56 inches in width, and 3.67 inches in height, ensuring compatibility with standard mounting arrangements.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
