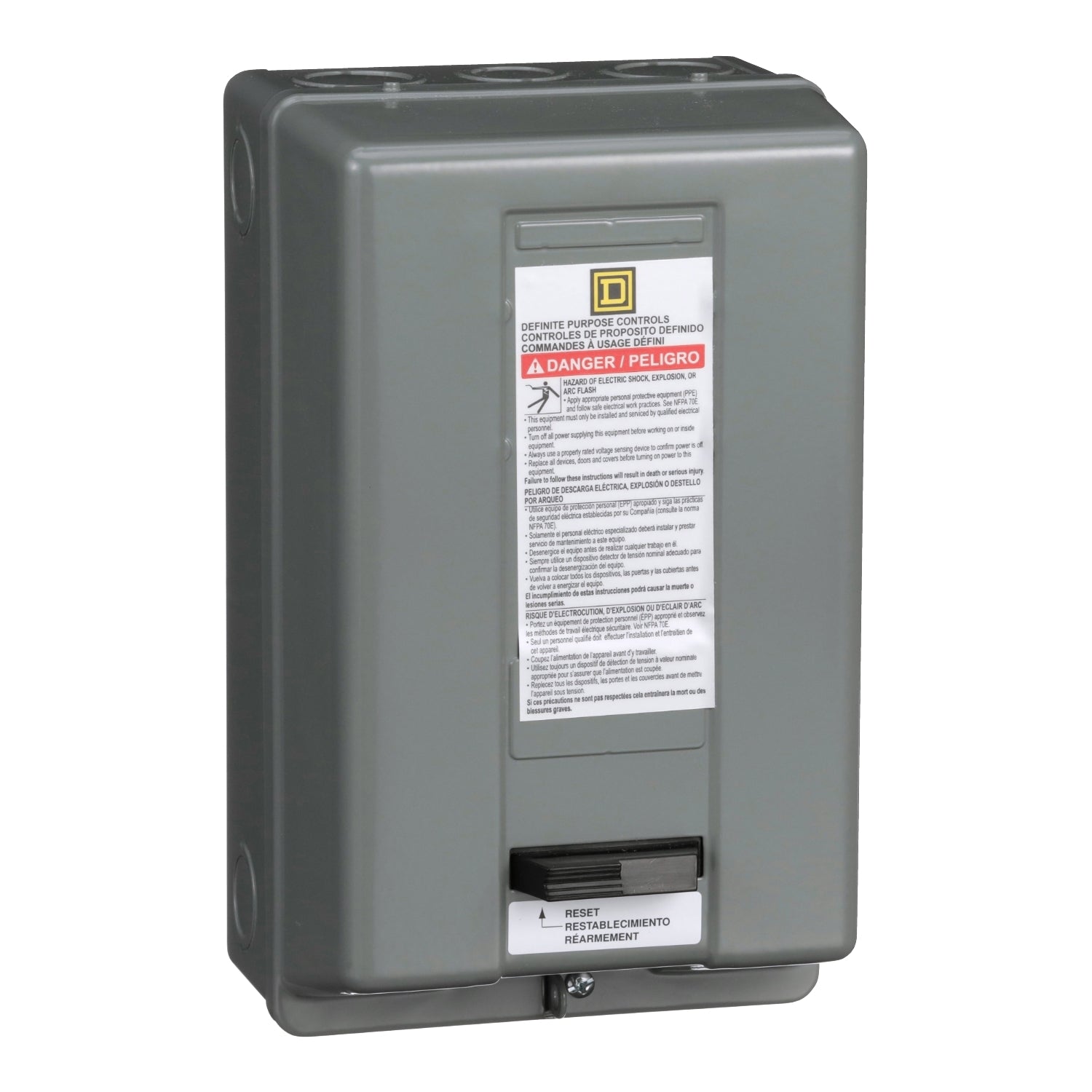

8911DPSG42V09 | Schneider Electric Definite Purpose Starter
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 8911DPSG42V09
Description
The 8911DPSG42V09 is a Definite Purpose Starter designed for applications with relatively low duty cycles, such as air compressors, agricultural equipment, pumps, and HVAC equipment. This two-pole starter has a full load rating of 40 amperes and is suitable for single-phase systems with ratings of 3 HP at 115 VAC and 7.5 HP at 230 VAC.
Equipped with a nonreplaceable coil available in various voltages, this device features a 220/208 to 240 VAC 50/60 Hz coil and straight-through wiring. The melting alloy type overload relay utilizes Type B thermal units to detect overcurrent conditions.
Technical Specifications
|
Part # |
8911DPSG42V09 |
|
Category |
Contactors & Starters |
|
Subcategory |
Starter Product - Definite Purpose Starter |
|
Ampere Rating |
40 A |
|
Horsepower Rating |
3 hp at 115 V AC, 1 phase |
|
Horsepower Rating |
7.5 hp at 230 V AC, 1 phase |
|
Maximum Voltage Rating |
600 V AC |
|
Control Circuit Voltage |
220 V AC 50 Hz |
|
Control Circuit Voltage |
208...240 V AC 60 Hz |
|
Phase |
1 phase |
|
Enclosure Material |
Painted sheet steel |
|
Enclosure Rating |
NEMA 1 |
|
Number of Poles |
2P |
|
Range |
DPS |
|
Overload Type |
Melting alloy |
|
Number of Thermal Units |
1 |
Information About 8911DPSG42V09
The 8911DPSG42V09 is a Definite Purpose Starter designed for applications with relatively low duty cycles, providing cost-effective starting solutions for various equipment types including air compressors, agricultural machinery, pumps, and HVAC systems. This two-pole starter boasts a full load rating of 40 amperes, catering to diverse electrical requirements.
With ratings of 3 horsepower at 115 volts AC and 7.5 horsepower at 230 volts AC in single-phase configurations, this starter offers versatility in powering different types of machinery. The nonreplaceable coil is offered with a variety of coil voltages, with this device featuring a 220/208 to 240 volts AC 50/60 Hz coil.
Featuring straight-through wiring, the starter ensures simplified installation and setup procedures. Equipped with a melting alloy type overload relay utilizing Type B thermal units, it effectively senses overcurrent conditions, enhancing operational safety.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
