9001BG201 | Schneider Electric Complete Control Station
- Regular price
- $110.00
- Sale price
- $110.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: 9001BG201
Description

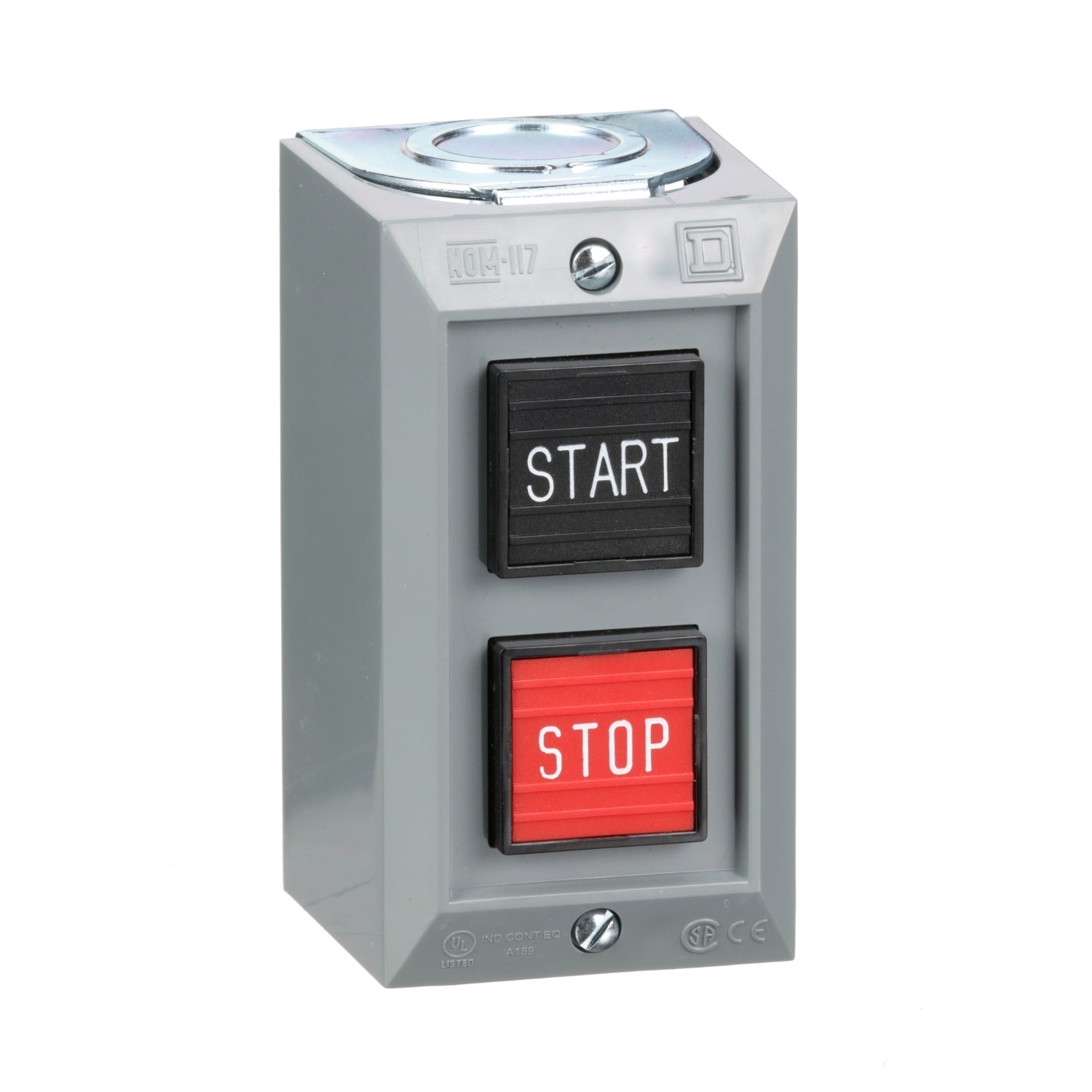

The 9001BG201 is a complete control station from the Harmony 9001B series, featuring two push buttons for START/STOP functions. Operating at 5A and 600V AC, it includes 1 normally open (NO) and 1 normally closed (NC) contact. Enclosed in a NEMA 1-rated housing, this surface-mounted control station comes with standard duty-rated push button contacts, rated B600 for inductive loads and P600 for DC loads. The contacts utilize classic screw clamp connections for control circuit wiring. UL Listed and CSA certified, this control station ensures compliance with safety standards.
Technical Specifications
|
Part # |
9001BG201 |
|
Category |
Pilot Devices |
|
Subcategory |
Pendant Station Control station composition |
|
Control station composition |
2 push-buttons START-STOP |
|
Contacts type and composition |
1 NO + 1 NC |
|
Connections - terminals |
Screw clamp terminal |
|
[Ie] rated operational current |
5 A 600 V |
|
Device mounting |
Surface |
|
Type of Installation |
Indoor |
Information About 9001BG201
The 9001BG201 is a complete control station from the Harmony 9001B series, offering standard duty functionality with an enclosure, operators, and contacts. Featuring two square momentary push buttons, it includes a START button with a normally open (NO) contact and a STOP button with a normally closed (NC) contact. This NEMA 1 general purpose control station is designed for surface mounting.
The push button contacts are standard duty rated with a B600 rating, indicating a break rating of 360 VA for an inductive load with a 35% power factor or 5A resistive. Additionally, the contacts have a P600 rating for DC loads. The control station utilizes classic screw clamp connections for connecting to control circuits, ensuring secure and reliable connections.
Rated for 5A at 600V AC, this control station provides robust performance suitable for various industrial applications. Its design meets UL Listing and CSA certification requirements, ensuring compliance with safety and quality standards.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
