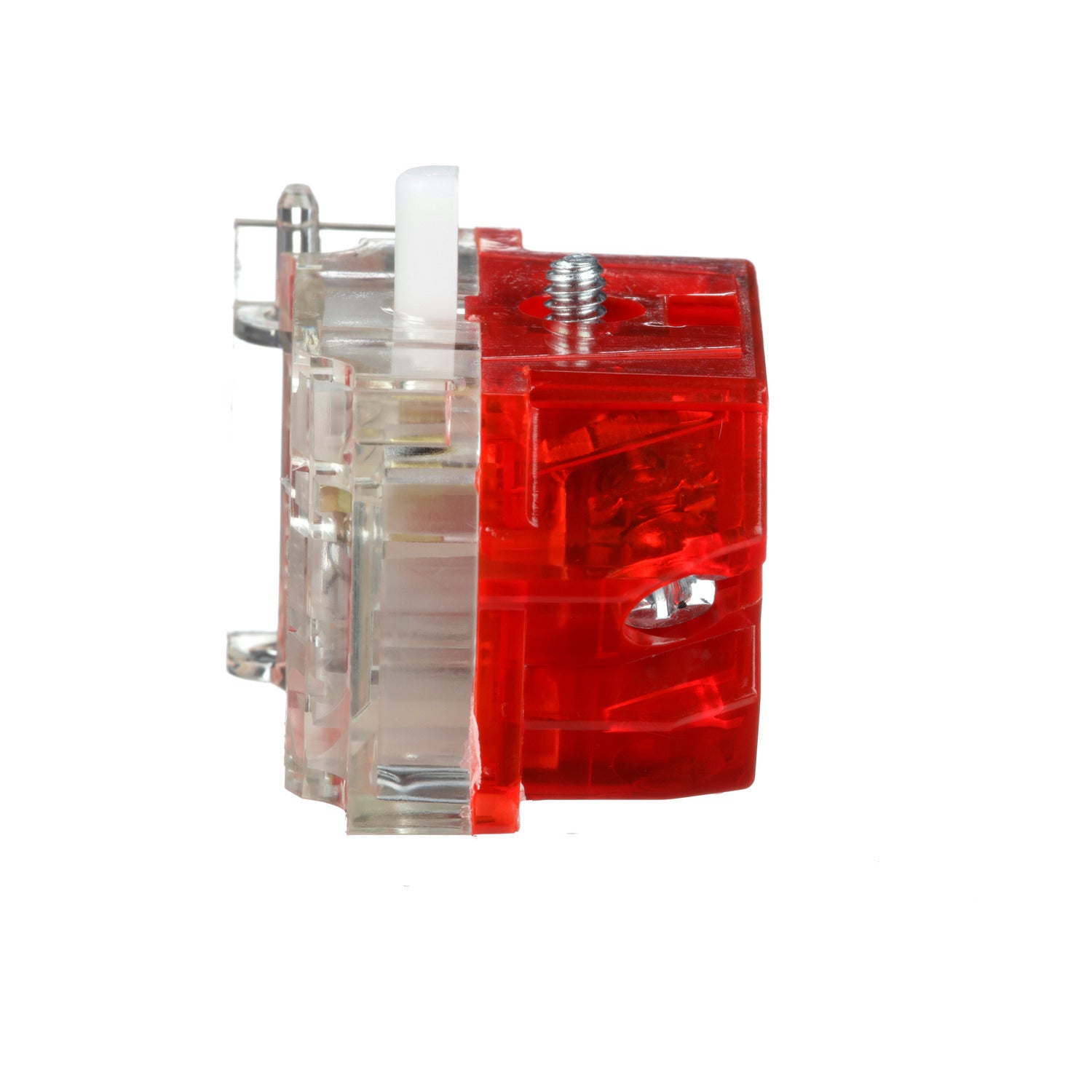

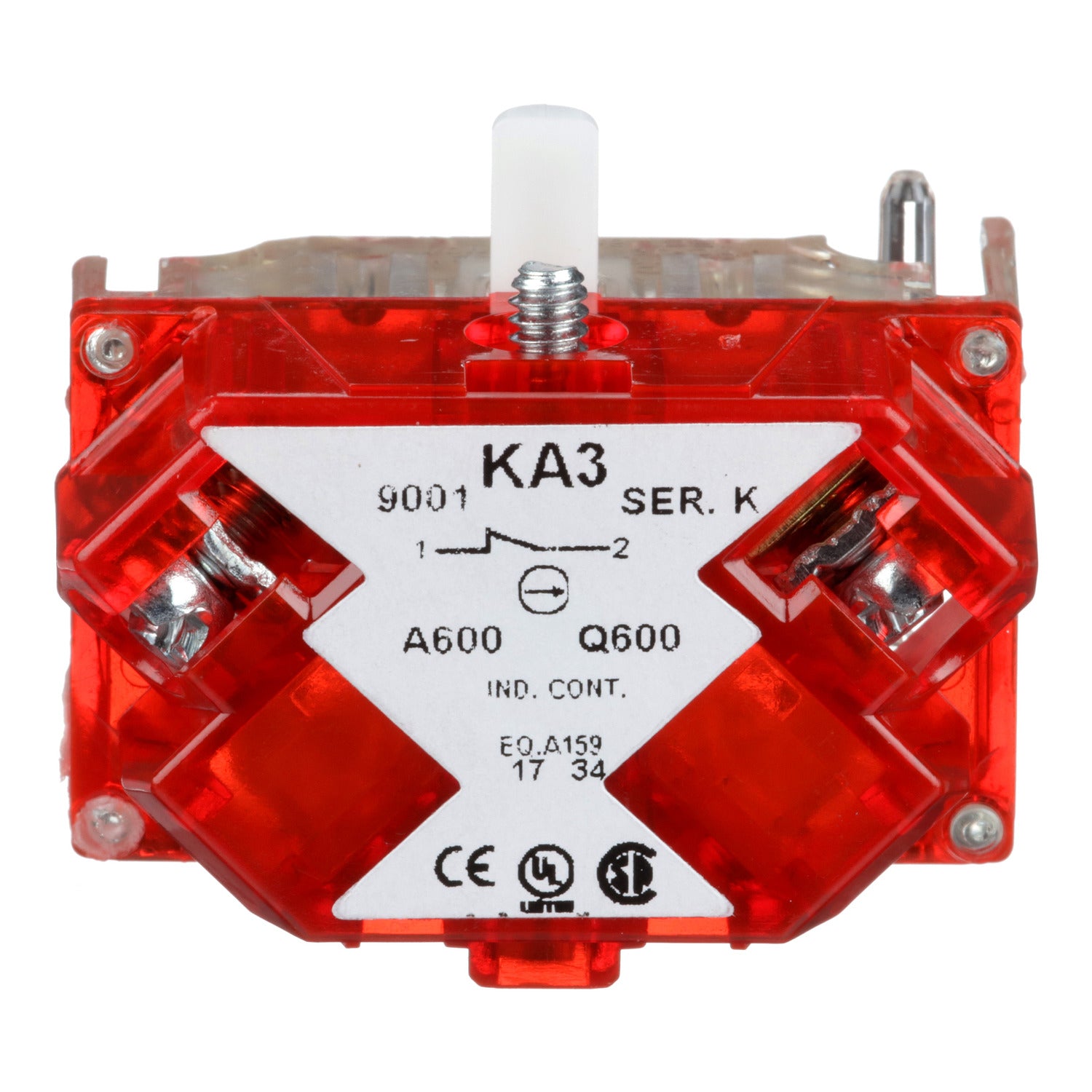

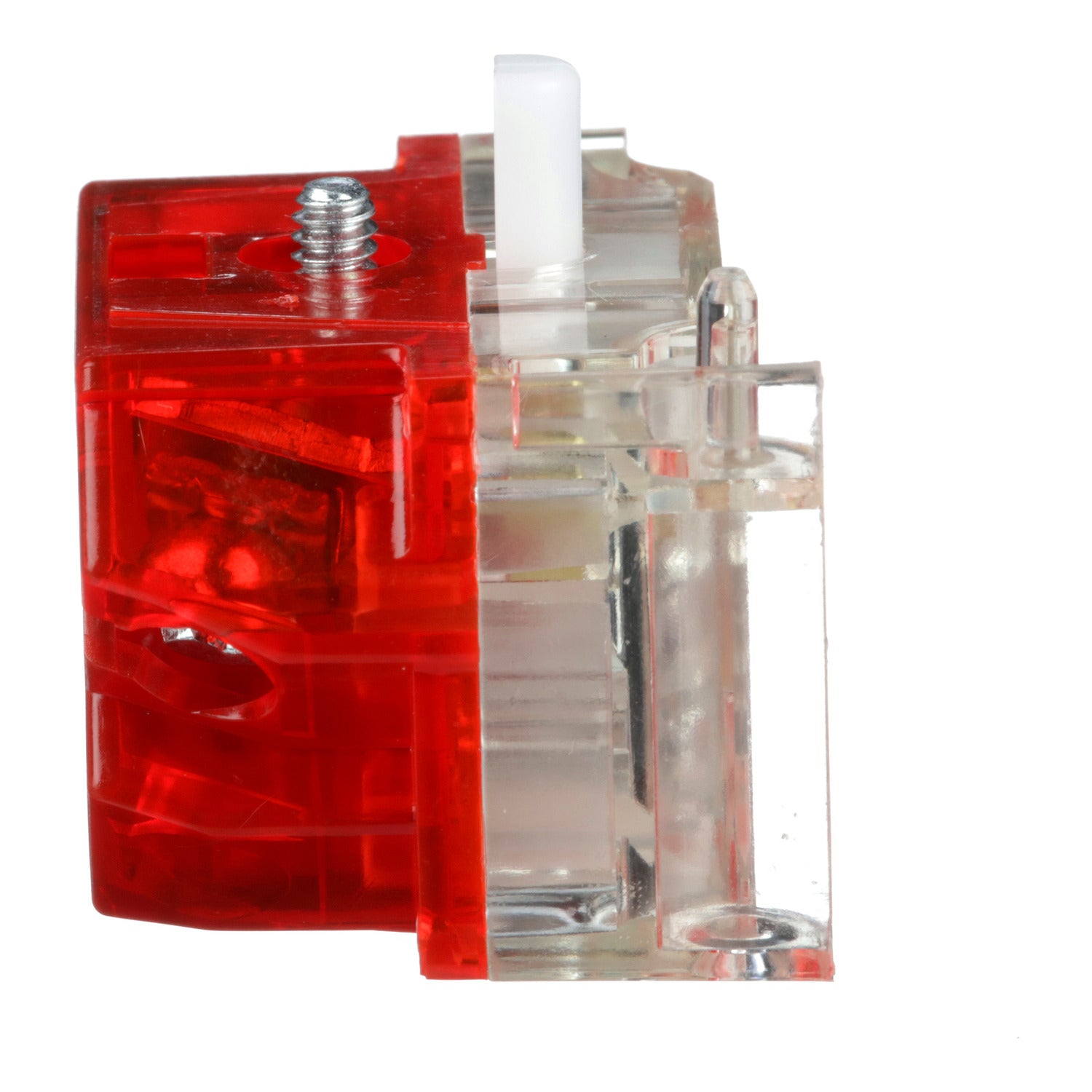

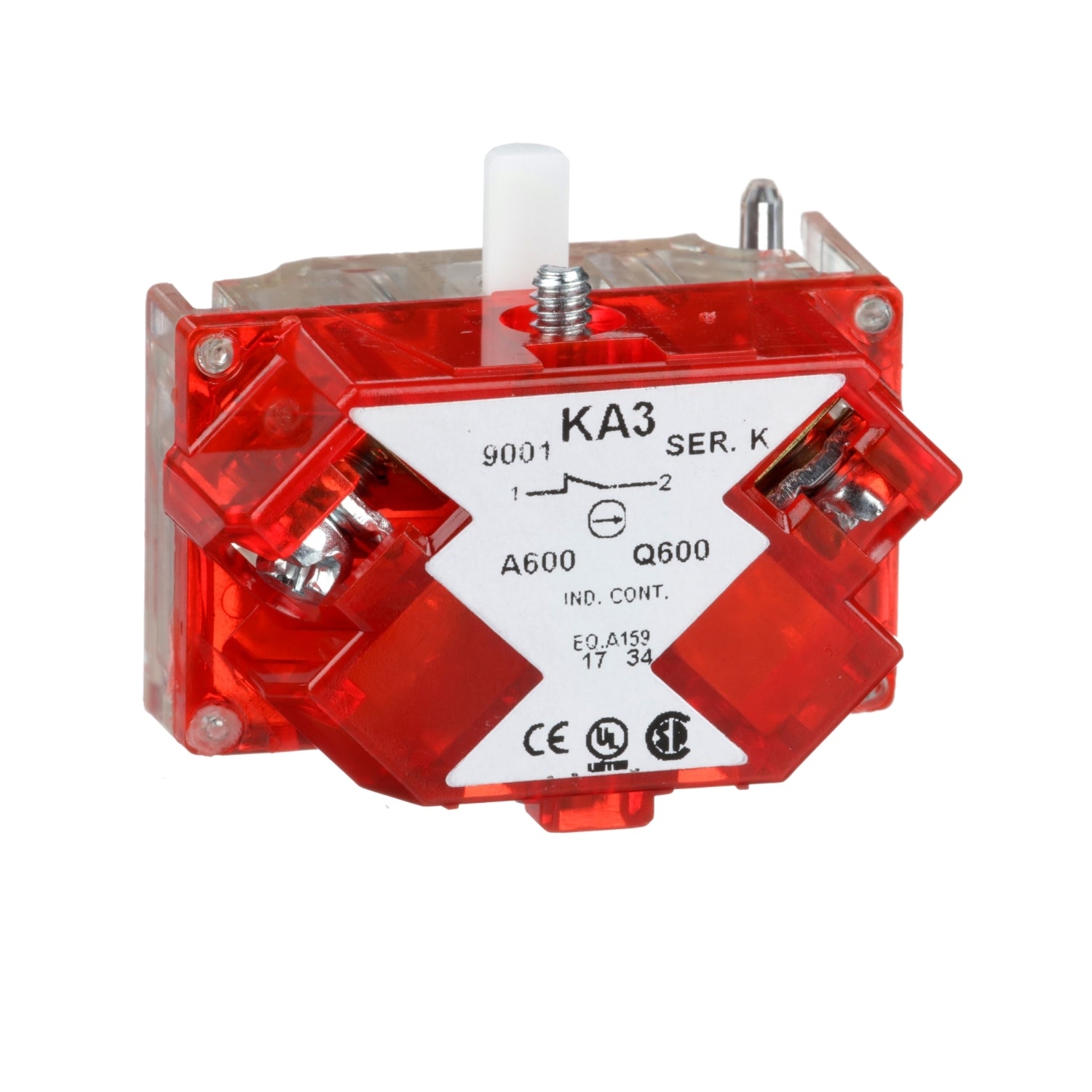

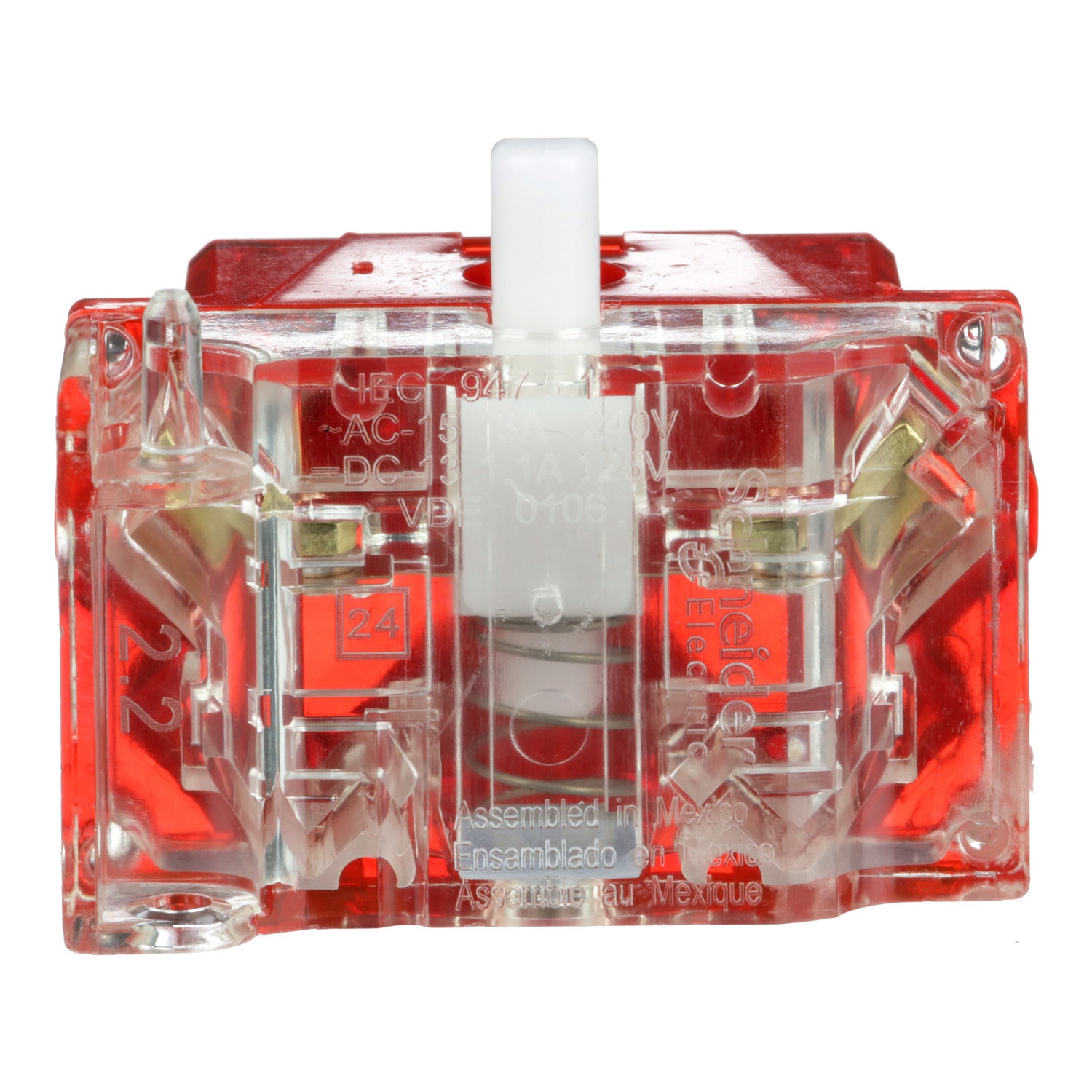

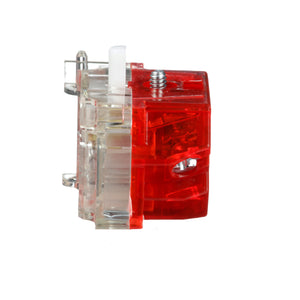

9001KA3 | Schneider Electric 30mm Push Button, Types K, SK or KX, Contact Block, 1 NC
- Regular price
- $39.00
- Sale price
- $39.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 9001KA3
Description
The 9001KA3 is a 30mm push button contact block designed for robust performance in industrial settings and challenging environments. Part of the 9001K, SK, or KX series, it offers long-term reliability and durability. The 9001K series features a metal operator base, while the 9001SK series utilizes a plastic base. These push button operators are part of a comprehensive range that includes emergency stop mushroom head push buttons, selector switches, key operated switches, and various other types such as pilot lights (LED, incandescent, and neon), joystick controllers, and wobble stick operators. They are available as complete units or subassemblies, allowing customization to specific application requirements.
Technical Specifications
|
Part # |
9001-KA3 |
|
Category |
Pilot Devices |
|
Subcategory |
Accessory/Bulb/Cap/Contact/Transf |
|
Product or Component Type |
Contact block |
|
Device Short Name |
9001K |
|
Contacts Type and Composition |
1 NC (3-4)NO |
|
Net Weight |
0.05 lb(US) (0.023 kg) |
|
Contact Operation |
Positive opening |
|
IEC 60947-5-2 |
Yes |
|
Connections - Terminals |
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1 |
|
Tightening Torque |
7.08 lbf.in (0.8 N.m) IEC 60947-1 |
|
Shape of Screw Head |
Cross slotted |
|
Contacts Material |
Silver alloy contacts |
|
Short-Circuit Protection |
10 A cartridge fuse IEC 60947-5-1 |
|
[Ith] Conventional Free Air Thermal Current |
10 A |
|
[Ui] Rated Insulation Voltage |
250 V IEC 60947-1 |
|
[Uimp] Rated Impulse Withstand Voltage |
2.5 kV IEC 60947-1 |
|
[Us] Rated Supply Voltage |
0...600 V |
|
Connections - Terminals |
Screw-clamp terminals |
|
Protective Treatment |
TC |
|
Ambient Air Temperature for Storage |
-40…158 °F (-40…70 °C) |
|
Ambient Air Temperature for Operation |
-13…158 °F (-25…70 °C) |
|
Electrical Shock Protection Class |
Class II IEC 61140 |
|
IP Degree of Protection |
IP20 IEC 60529 |
Information About 9001KA3
The 9001KA3 30mm push button and its variants, such as Types K, SK, or KX, represent a robust and reliable range suitable for heavy-duty industrial applications and challenging environments. These push button operators are designed to endure extreme conditions and offer long-term performance reliability.
The 9001K operators feature a metal base, while the 9001SK operators utilize a plastic base within this extensive line of push button operators. This diverse range includes push buttons, emergency stop mushroom head push buttons, selector switches, key-operated switches, operators with potentiometers, pilot lights (LED, incandescent, and neon), joystick controllers, wobble stick operators, and multifunction operators. These operators are available as complete units or as subassemblies that users can configure to meet specific operational requirements.
The 9001K metal 30mm push buttons are automatic self-grounding operators, eliminating the need for additional wiring, and are ABS Certified. They feature an IP20 protection index, safeguarding operators against inadvertent contact with live circuits. Contact blocks are equipped with terminal screws positioned for efficient wiring, complemented by a wide array of available accessories. Certain operators are equipped with super bright LEDs, enhancing visibility in various operating conditions.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
