9007AW16 | Schneider Electric 15 Amp Limit Switch
- Regular price
- $287.00
- Sale price
- $287.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

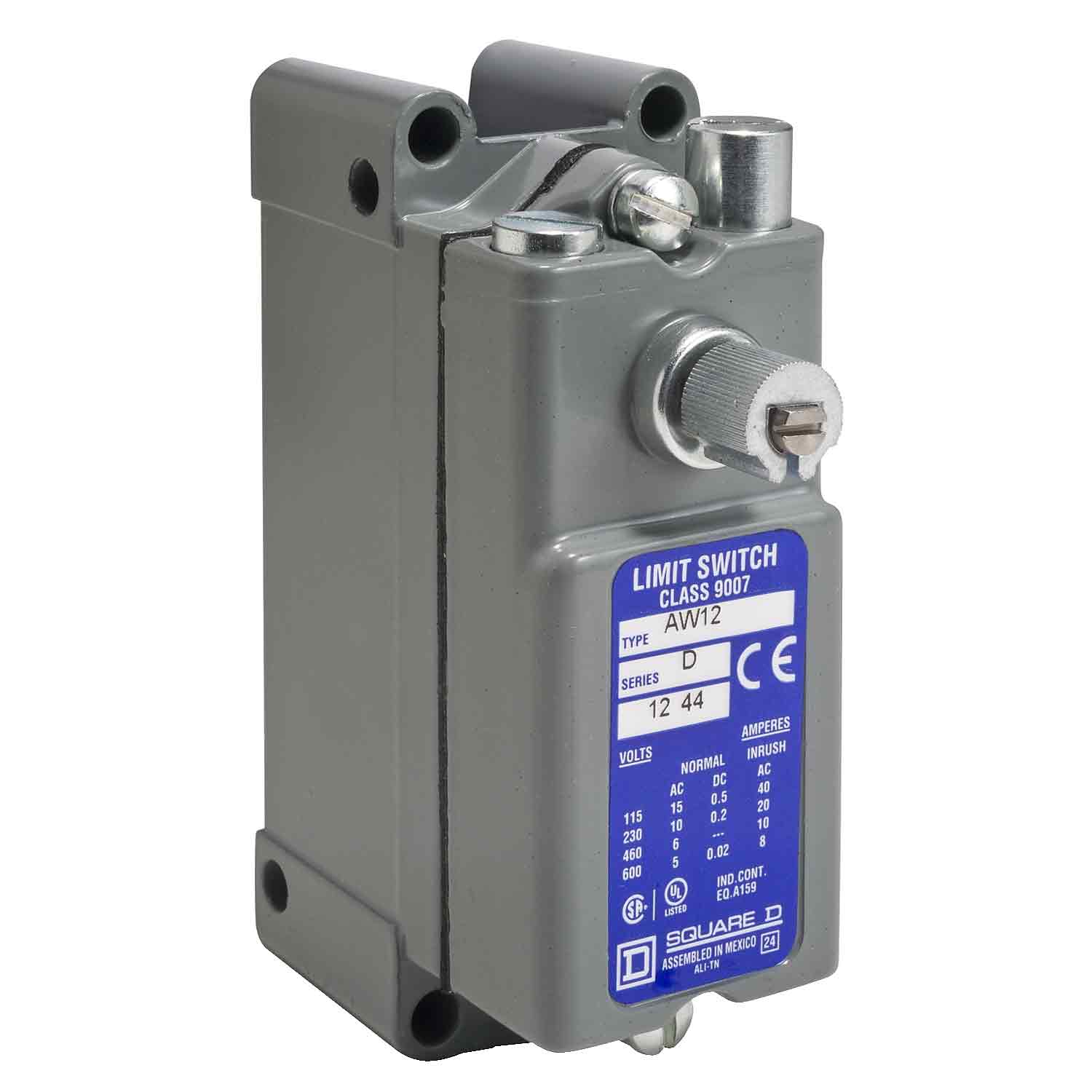

Product Description P/N: 9007AW16
Description
The 9007AW16 is a limit switch manufactured by Schneider Electric. This industrial limit switch features a heavy-duty cast zinc body and is designed for plug-in open type applications. The switch is equipped with a side rotary lever, suitable for both clockwise and counterclockwise operation.
Electrical specifications include a maximum voltage rating of 600V and a current rating of 15A. The switch uses screw clamp terminals for connections. It is UL Listed, ensuring compliance with industry standards.
Technical Specifications
|
Part # |
9007-AW16 |
|
Category |
Sensors & Switches |
|
Subcategory |
Limit Switch |
|
Range of product |
9007 |
|
Series name |
Heavy duty |
|
Product or component type |
Limit switch |
|
Device short name |
9007AW |
|
Product specific application |
Precision |
|
Body type |
Plug-in |
|
Mounting mode |
Surface mounting |
|
Operator profile |
Rotary head |
|
Material |
Metal |
|
Body material |
Cast zinc |
|
Operator material |
Cast zinc |
|
Fixing mode |
By the body |
|
Movement of operating head |
Rotary |
|
Type of operator |
Spring return without operating lever, cast zinc |
|
Switch actuation |
CCW convertible to CW |
|
Approach type |
Lateral approach, 1 direction programmable |
|
Electrical connection |
1…2 cables for screw-clamp terminals (AWG 22...AWG 12) |
|
Cable entry |
1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1 |
|
Number of poles |
1 |
|
Contacts type and composition |
NC-NO, switch function: SPDT-DB |
|
Contact form |
Form Z |
|
Contact operation |
Snap action |
|
Number of steps |
1 |
|
Contacts material |
Silver contacts |
|
Positive opening |
Without |
|
Terminals description ISO n°1 |
(1-2)NC, (3-4)NO |
|
Minimum torque for tripping |
0.31 N.m |
|
Tripping angle |
5° |
|
Maximum displacement angle |
30° |
|
[Ithe] conventional enclosed thermal current |
15 A |
|
IP degree of protection |
IP65 conforming to IEC 60529 |
|
Ambient air temperature for operation |
-54…85 °C |
|
Ambient air temperature for storage |
-54…85 °C |
|
Protective treatment |
Epoxy powder coat |
Information About 9007AW16
The 9007AW16 is an industrial limit switch manufactured by Schneider Electric. It features a cast zinc body, designed for heavy-duty applications, with a plug-in open type configuration and a side rotary lever. This industrial switch supports both clockwise and counterclockwise operation and has a maximum voltage rating of 600V with a 15A ampere rating. It utilizes screw clamp terminals for secure connections.
The 9007AW16 is designed to provide reliable operation in various industrial environments. It conforms to UL standards and offers a durable construction suitable for heavy-duty applications. With its rotary head operator profile and plug-in body type, this limit switch is well-suited for surface mounting installations. Its compact dimensions make it suitable for use in confined spaces, while the robust cast zinc body ensures long-term durability and performance.
