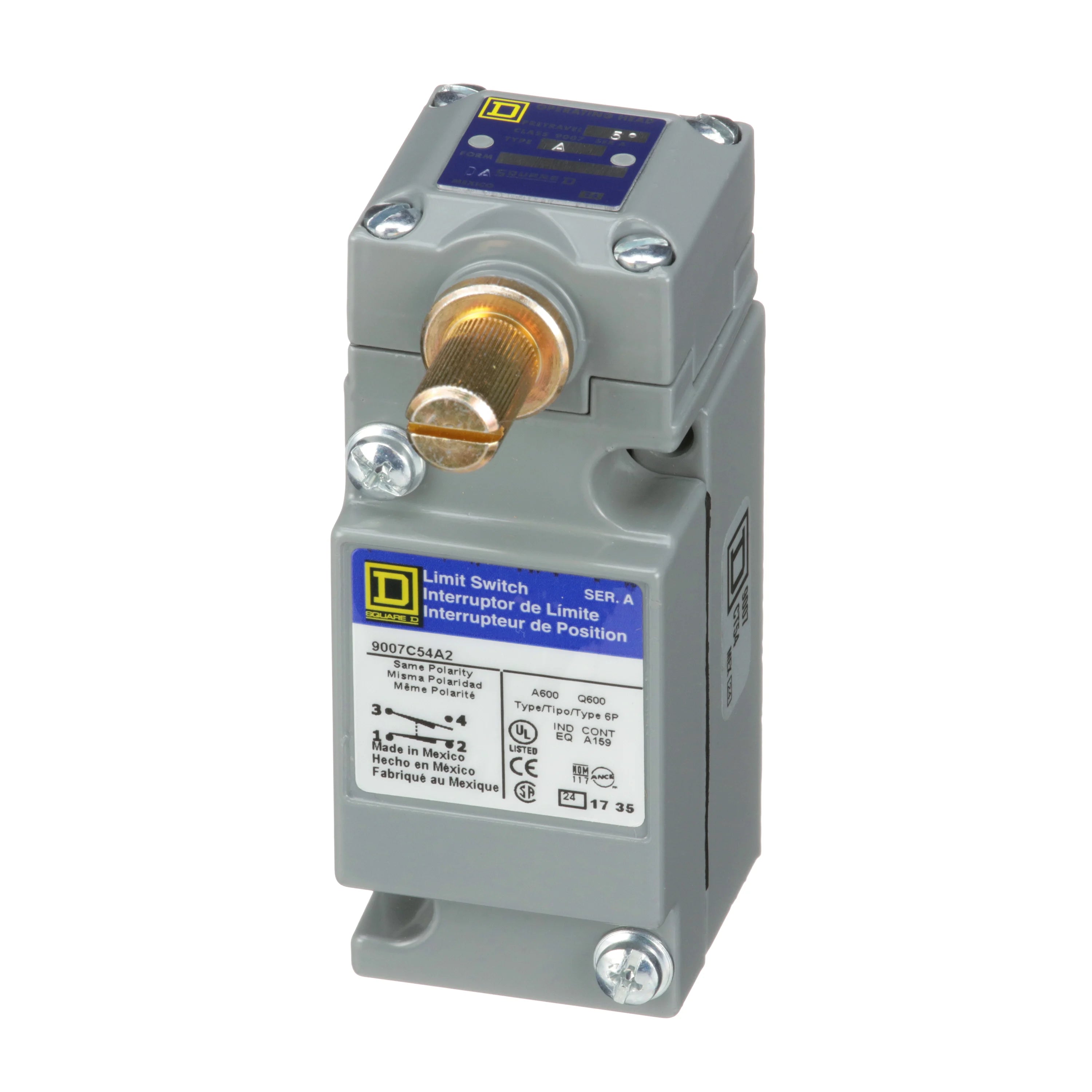

9007C54A2 | Schneider Electric Square D 9007C Rotary Actuated Limit Switch Standard Duty
- Regular price
- $169.00
- Sale price
- $169.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 9007C54A2
Description
The Schneider Electric 9007C54A2 is a heavy-duty rotary actuated limit switch designed for industrial position sensing where durability and environmental protection are essential. Built with a spring-return snap-action mechanism and a rotary lever arm actuator, it provides reliable switching for machinery, conveyors, and safety interlocks. Its zinc alloy construction and wide environmental tolerance ensure long operational life even under harsh conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Sensors & Switches |
| Part Number | 9007C54A2 |
| Subcategory | Limit Switch |
| Action | Rotary / Spring Return / Snap Action |
| Actuator | Rotary Lever Arm |
| Amperage Rating | 10 A |
| Contact Configuration | 1NO–1NC |
| Contact Rating | A600/Q600, 1.2 A at 600 VAC, 0.1 A at 600 VDC |
| Voltage Rating | 600 VAC/VDC |
| Connection Type | Screw Clamp |
| Enclosure Type | NEMA 1/2/4/6/6P/12/13, IP67 |
| Material | Zinc Alloy with Epoxy Powder Coating |
| Mounting Type | Body / Plug-In |
| Number of Poles | 1 |
| Operating Cycles | 1,000,000 Cycles |
| Operating Temperature | −20 to 185 °F |
| Environmental Conditions | −20 to 185 °F |
| Series | 9007C |
| Size | 1.55 in W × 2.5 in D × 4.02 in H |
| Type | Standard Duty |
| Ingress Protection | IP67 |
| Mechanical Style | Rotary, Spring Return |
Information About 9007C54A2
The 9007C54A2 is part of Schneider Electric’s Square D 9007C limit switch family, known for rugged construction and long service life in industrial automation environments. This model uses a rotary lever arm with spring return and snap-action contacts, enabling quick and precise mechanical switching. It is built from zinc alloy and coated with epoxy for corrosion resistance, and it features NEMA 1/2/4/6/6P/12/13 ratings, making it suitable for wet, dusty, and harsh environments. With a 1NO–1NC contact arrangement rated A600/Q600 and a verified service life of one million operations, the switch supports reliable machine feedback and position monitoring for demanding industrial processes.
Key Features:
- Durable Rotary Spring-Return Mechanism: Provides consistent actuation with snap-action switching, ensuring fast response and dependable electrical performance in repetitive motion applications.
- Industrial-Grade Construction: Zinc alloy housing with epoxy powder coating delivers high mechanical strength and corrosion resistance for tough industrial environments.
- Wide Environmental Protection: Meets NEMA 1/2/4/6/6P/12/13 and IP67 ratings, allowing installation in wet, dusty, washdown, and corrosive areas without compromising switch reliability.
- High Electrical and Mechanical Endurance: Rated for 1,000,000 electrical cycles and up to 10,000,000 mechanical cycles, supporting long-term operation in continuous-duty systems.
- A600/Q600 Rated Contacts: Suitable for heavy industrial loads, allowing reliable switching of high-voltage AC or DC circuits with strong inductive capability.
- Rotary Lever Arm Actuation: Enables multi-directional actuation including clockwise and counterclockwise operation, ideal for conveyors, cams, and rotating machinery components.
- Plug-In Body Mounting: Designed for flexible installation with body or plug-in mounting options, simplifying replacement and reducing maintenance time.
- Secure Screw Clamp Terminals: Accommodates 22–12 AWG wiring with strong terminal retention for vibration-resistant electrical connections.
The 9007C54A2 delivers the reliability and precision required for industrial position sensing, machine interlocking, and rugged limit-switch applications.
