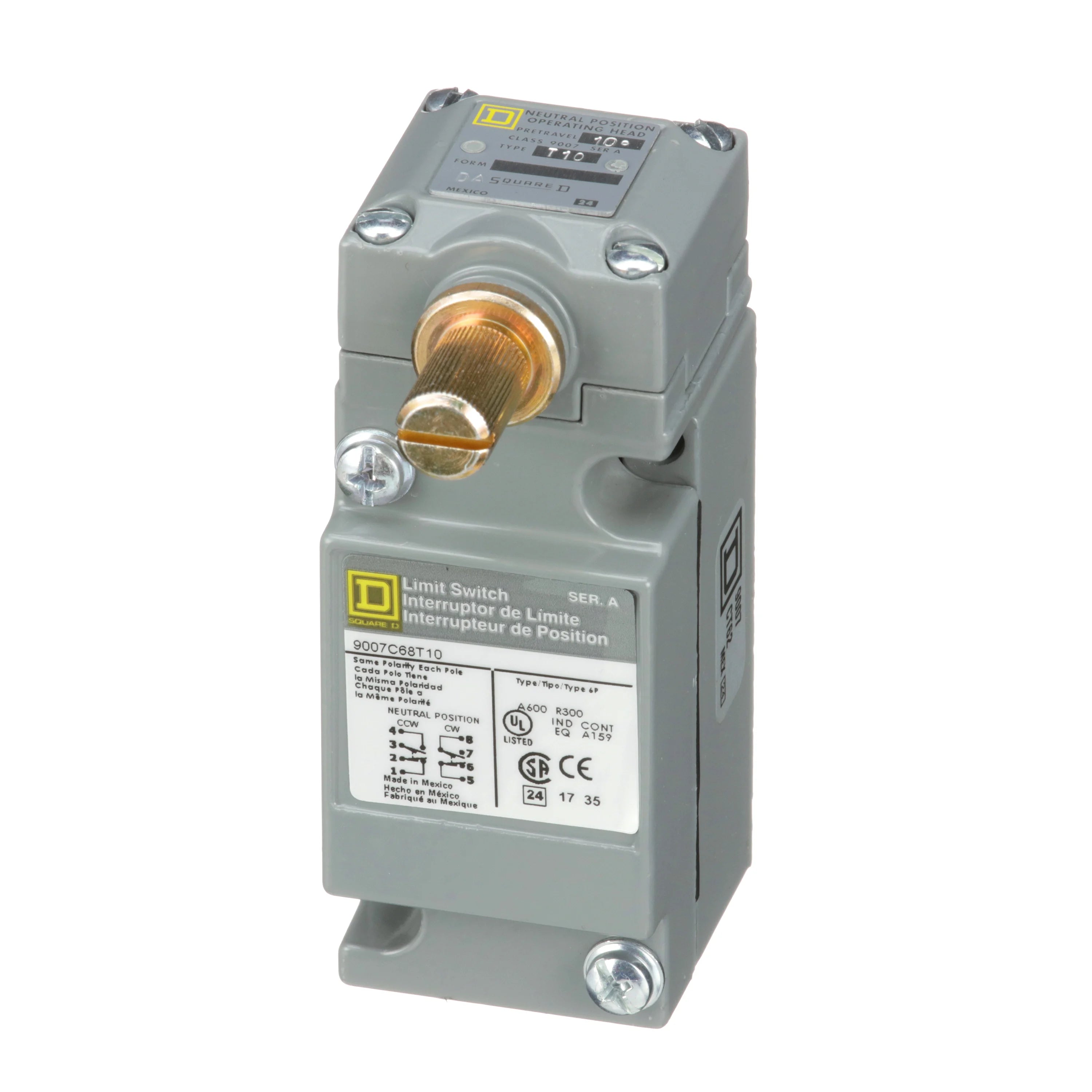

9007C68T10 | Schneider Electric Heavy Duty Rotary Limit Switch Snap Action 2NC-2NO, 9007C Series
- Regular price
- $257.00
- Sale price
- $257.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 9007C68T10
Description
Square D Rotary Actuated Limit Switch, Standard, Series: 9007C, 600 VAC, 250 VDC, 10 A, 2NO-2NC, 1.2 A at 600 VAC, 0.11 A at 250 VDC, A600/R300 Contact, 2 Pole, Rotary/Spring Return/Snap, Rotary Lever Arm, Screw Clamp, NEMA 1/2/4/6/6P/12/13, Body/Plug-In Mount, 1.55 in W x 2.5 in D x 4.02 in H, 1000000 cycles Operating Cycles, -20 to 185 deg F Operating, Zinc Alloy, Epoxy Powder Coated, Environmental Conditions: -20 to 185 deg F.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | 9007C68T10 |
| Category | Sensors & Switches |
| Subcategory | Limit Switch |
| Action | Rotary/Spring Return/Snap |
| Actuator | Rotary Lever Arm |
| Amperage Rating | 10 A |
| Connection type | Screw Clamp |
| Contact Configuration | 2NO-2NC |
| Contact Rating | 1.2 A at 600 VAC, 0.11 A at 250 VDC, A600/R300 |
| Enclosure Type | NEMA 1/2/4/6/6P/12/13, NEMA 2/4/6/6P/12/13/IP67 |
| Environmental Conditions | -20 to 185 deg F |
| Finish | Epoxy Powder Coated |
| Material | Zinc Alloy |
| Mounting type | Body/Plug-In, Plug-In |
| Number of Poles | 2 |
| Operating Cycles | 1000000 Cycles |
| Operating Temperature | -20 to 185 deg F |
| Series | 9007C |
| Size | 1.55 in W x 2.5 in D x 4.02 in H |
| Type | Standard |
| Voltage Rating | 600 VAC, 250 VDC |
Information About 9007C68T10
The 9007 MS/ML limit switches have a full range of styles available, including top push plunger, parallel roller plunger, cross roller plunger, rotary lever and omni directional whisker. Factory pre-wiring with industrial grade cable (type SJTO) eliminates the need to remove the cover to wire the switch. Bottom or side entrance cable connections and bottom or side connectors are available along with a symmetrical design and top mounting holes for easy gang mounting of several switches for multiple switching.
The heavy-duty, completely encapsulated miniature MS limit switch includes a Viton® O-ring seal on the plunger that keeps liquids from entering the switch cavity and includes an epoxy compound seal around the electrical cable connections and switch housing. In addition, they are CSA certified, NEMA Type 6P and IP67 rated. The 9007 MS limit switches also incorporate a sealed snap switch offering a 10 A continuous current rating or gold contacts for a low level logic switching.
Features
Zinc spring return without operating lever operator
From left and right, CW and CCW switch actuation
Two-direction lateral approach
Screw clamp terminal, 22 to 12 AWG electrical connection
1 cable entry for 1/2 to 14 NPT conforming to ANSI B1.20.1
1000000 cycles electrical durability, 10000000 cycles mechanical durability
25 gn (10/150 Hz) vibration-resistance
Form Z, snap action silver contact
Without positive opening
4 in-lb operating torque
1/2 in NPT conduit entrance
NEMA A600/R300
Without operating lever
