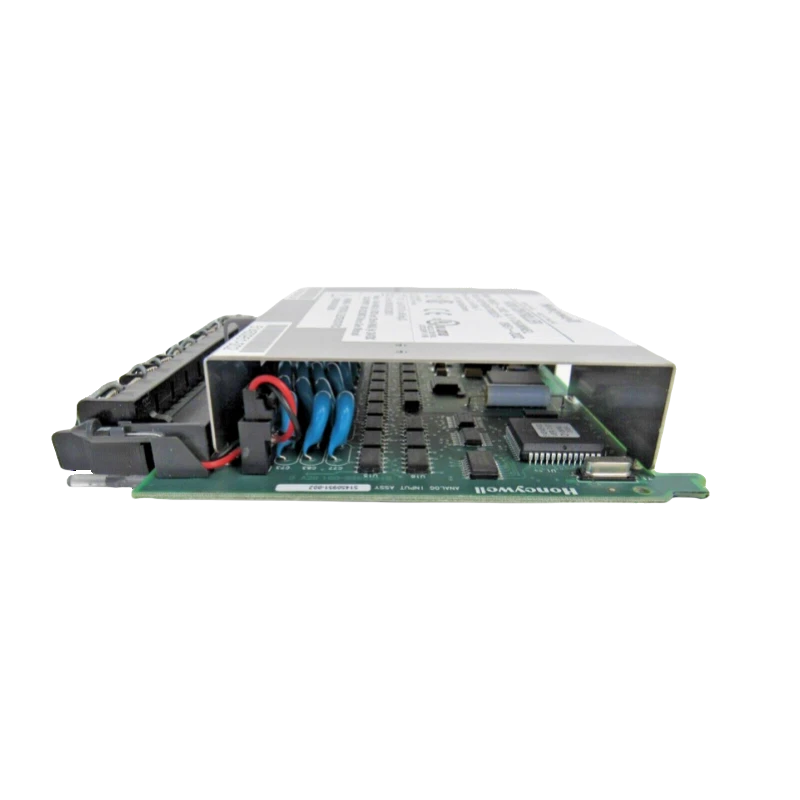

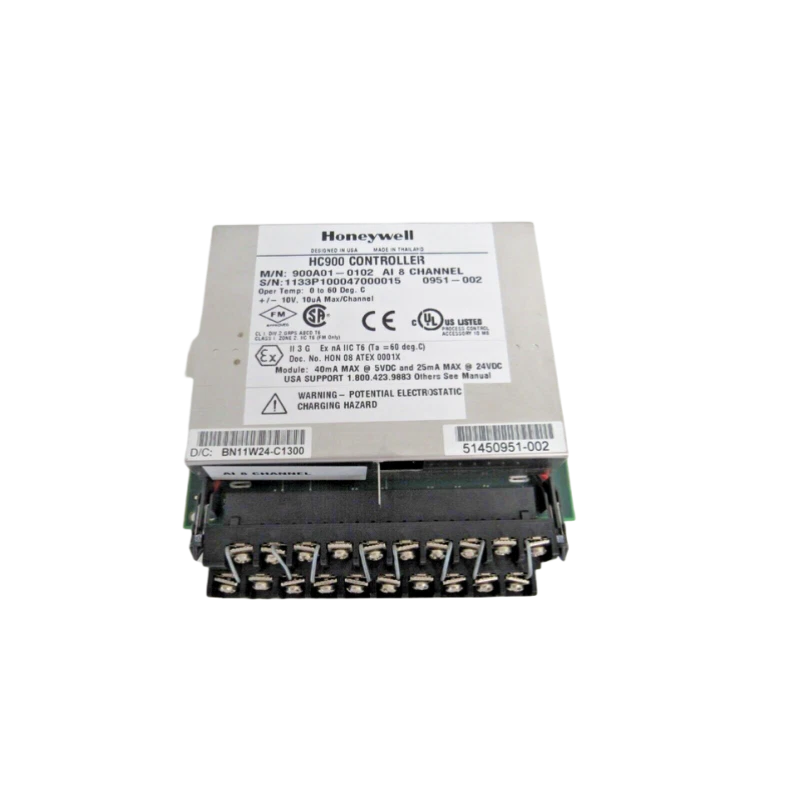

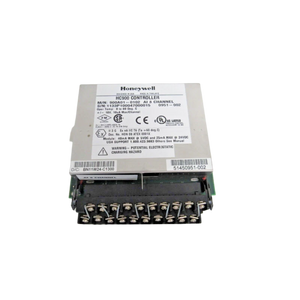

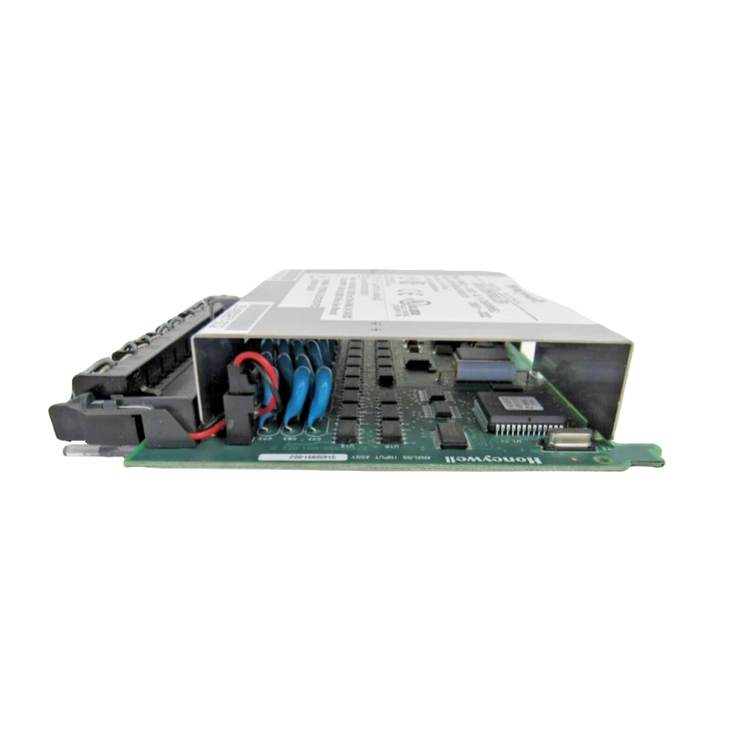

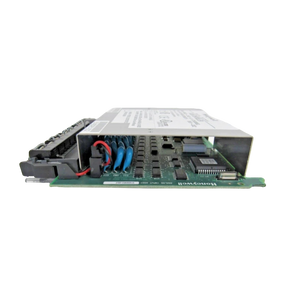

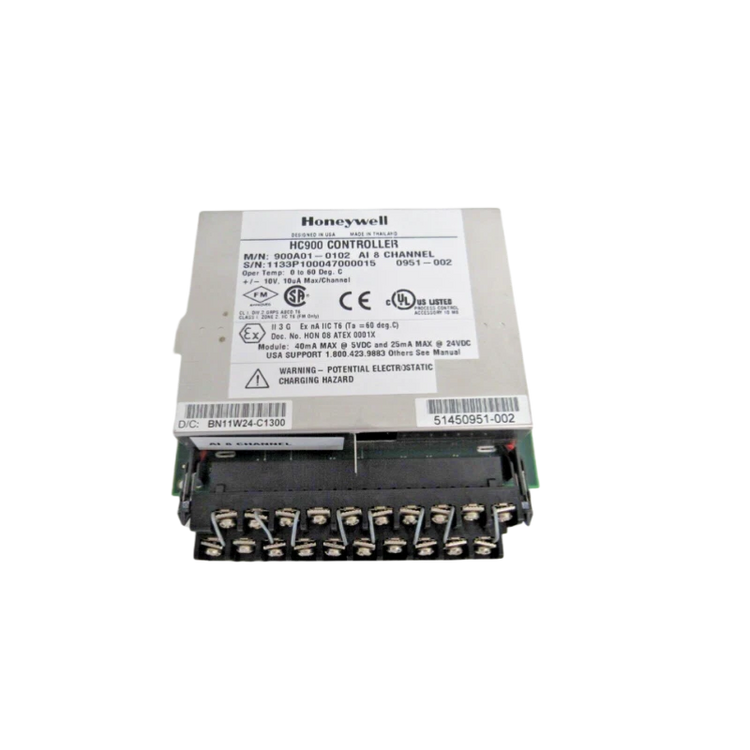

900A01-0102 | Honeywell HC900 8-Channel Analog Input Module 24VDC
- Regular price
- $639.00
- Sale price
- $639.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 900A01-0102
Description
The Honeywell 900A01-0102 is an 8-channel analog input module designed for use with HC900 process and safety controllers. It provides precise signal measurement and reliable data acquisition for industrial process control applications operating on a 24VDC supply.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Industrial Automation |
| Part Number | 900A01-0102 |
| Subcategory | Input Module |
| Type | Analog Input Module |
| Series | HC900 Control System |
| Number of Channels | 8 Analog Inputs |
| Input Signal Type | Voltage/Current (Configurable) |
| Input Range | 0–5V, 1–5V, 0–10V, 0–20mA, 4–20mA |
| Power Supply Voltage | 24 VDC |
| Power Consumption | 25/40 mA |
| Resolution | 16-bit A/D Conversion |
| Isolation | Channel-to-Bus and Channel-to-Channel Isolation |
| Communication Interface | HC900 Local I/O Network |
| Diagnostics | Open/Short Detection, Module Fault LEDs |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Mounting Type | DIN Rail or Panel Mount |
| Dimensions | Compact HC900 Module Form Factor |
| Weight | 0.44 lbs |
Information About 900A01-0102
The 900A01-0102 is part of Honeywell’s HC900 Hybrid Control System, which integrates process control, safety, and monitoring into one scalable platform. This module provides eight configurable analog input channels capable of handling a variety of process signals including voltage and current types. It converts these signals into high-resolution digital data for precise monitoring and control in critical industrial processes. Built for dependability and ease of integration, it features diagnostic LEDs, isolation protection, and plug-in terminal connections for simplified installation and maintenance.
Key Features:
- Eight Analog Input Channels: Supports multiple input types such as 0–10V and 4–20mA for versatile signal monitoring.
- High Accuracy and Resolution: 16-bit A/D conversion ensures precise measurement and stable process control.
- Input Isolation: Provides channel-to-bus and channel-to-channel isolation to prevent electrical interference and protect connected devices.
- Integrated Diagnostics: Includes onboard status LEDs and fault detection for open circuits and signal abnormalities.
- Compact Modular Design: Fits seamlessly within HC900 chassis with easy front access for wiring and maintenance.
- Flexible Configuration: Each channel can be independently configured for voltage or current input according to process requirements.
- Low Power Consumption: Operates at 24VDC with a typical draw of 25/40 mA for efficient energy use.
- Industrial-Grade Reliability: Built to perform in demanding automation environments with wide operating temperature tolerance.
The 900A01-0102 delivers the reliability and precision required for accurate signal acquisition and stable control performance in Honeywell HC900 process automation systems.
