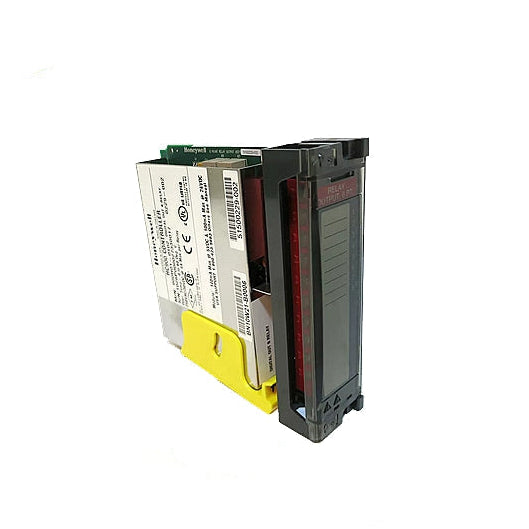

900H01-0102 | Honeywell 8-Point Digital Relay Output Module 250VAC/30VDC
- Regular price
- $722.00
- Sale price
- $722.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 900H01-0102
Description
The Honeywell 900H01-0102 is an 8-point digital relay output module designed for reliable control of AC and DC loads in industrial automation systems. It supports switching of up to 250 VAC or 30 VDC at 4 amps per relay, offering robust and flexible output interfacing for Honeywell control platforms.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Industrial Automation |
| Part Number | 900H01-0102 |
| Subcategory | Digital Output Module |
| Module Type | Relay Output |
| Number of Outputs | 8 Points |
| Output Type | Form A (SPST-NO) Relay Contacts |
| Output Voltage Rating (AC) | 250 VAC Max |
| Output Voltage Rating (DC) | 30 VDC Max |
| Output Current Rating | 4 A Max per Relay |
| Load Type | Resistive or Inductive Loads |
| Switching Capacity | 100 VA (DC) / 1000 VA (AC) Typical |
| Isolation | Channel-to-Logic and Channel-to-Channel Isolation |
| Logic Voltage | TTL/CMOS Compatible Input Interface |
| Response Time | 10 ms Typical (Operate/Release) |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Humidity Range | 5–95% Non-Condensing |
| Indicators | Individual Channel Status LEDs |
| Mounting Style | DIN Rail or Panel Mount |
| Connection Type | Screw Terminal or Pluggable Connector (depending on configuration) |
| System Compatibility | Honeywell ControlEdge and Similar I/O Systems |
| Construction | Industrial-Grade PCB with Protective Coating |
| Power Supply | Derived from Backplane Connection |
| Certifications | CE, UL, and CSA Approved |
| Dimensions | Standard I/O Module Form Factor |
| Weight | 1.58 lbs (0.72 kg) |
Information About 900H01-0102
The 900H01-0102 is part of Honeywell’s family of digital output modules engineered for precision and reliability in process control and automation systems. Designed to handle both AC and DC loads, this 8-point relay module provides galvanic isolation and robust switching performance up to 250 VAC or 30 VDC per channel. Each relay channel is capable of handling 4 amps, making it suitable for operating solenoids, relays, contactors, and other discrete devices. The module is built with industrial-grade components, ensuring dependable operation under temperature extremes and electrical noise conditions typical in industrial environments. With channel status LEDs and plug-in terminals, installation and troubleshooting are straightforward, reducing system downtime.
Key Features:
- 8-Point Relay Output Design: Provides eight independent channels for control of discrete AC/DC loads.
- High Switching Capacity: Supports 250 VAC or 30 VDC operation with 4A maximum per relay contact.
- Galvanic Isolation: Ensures safe and interference-free operation between control and power circuits.
- Fast Response Time: Enables precise control in time-sensitive automation tasks.
- Versatile Load Handling: Supports both resistive and inductive loads for flexible applications.
- Status LEDs per Channel: Simplifies monitoring and fault diagnosis during operation.
- Wide Operating Temperature Range: Maintains performance in environments from 0°C to 60°C.
- Compact Industrial Design: Fits standard Honeywell racks or DIN rail mounts for easy integration.
- Durable Construction: Built with coated PCB and rugged housing for long service life.
- Certified Safety and Performance: Meets CE, UL, and CSA standards for industrial automation use.
The 900H01-0102 delivers the reliability and precision required for high-performance control systems, providing efficient and safe switching in industrial process and building automation applications.
