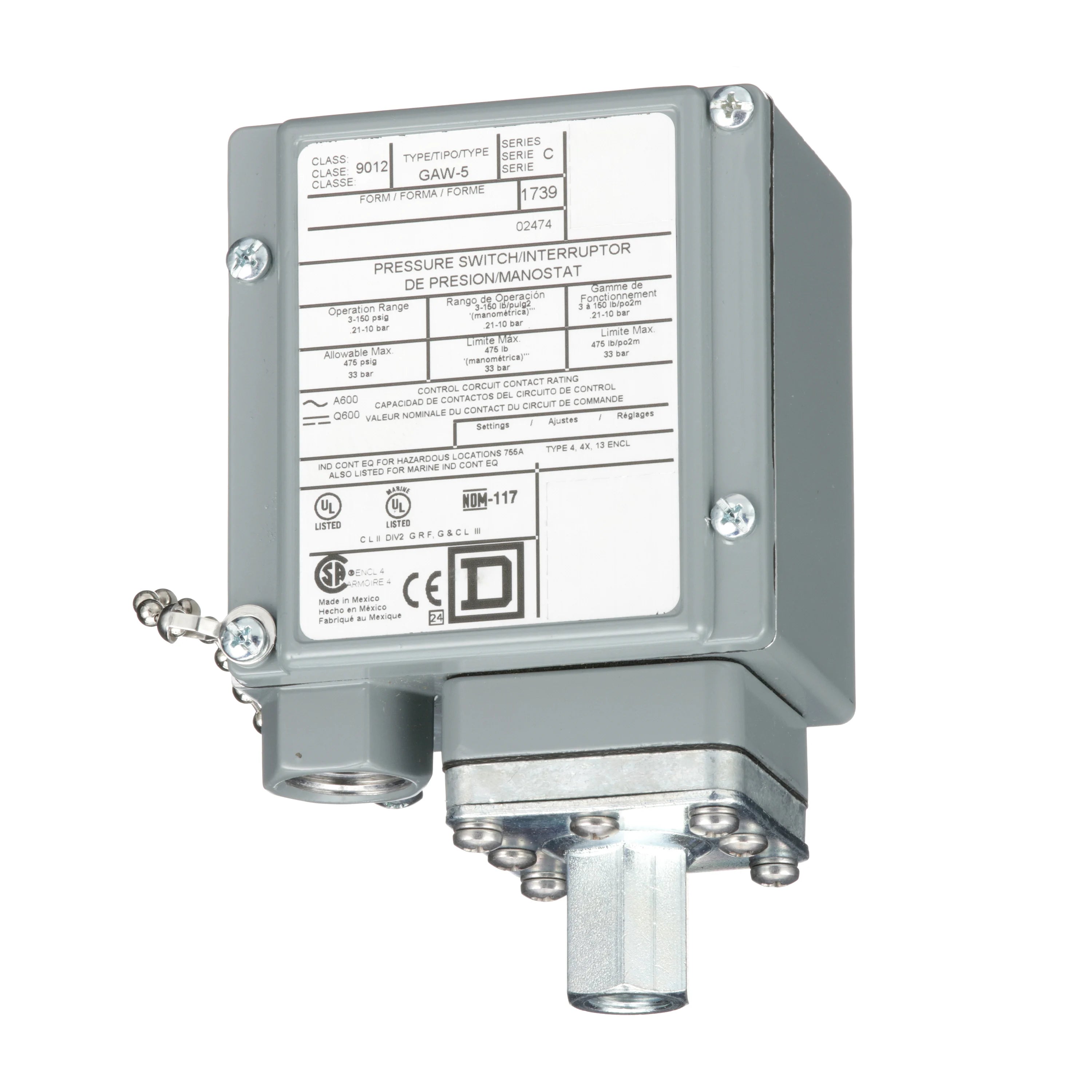

9012GAW5 | Schneider Electric Pressure Switch, 3-150 psi, 1/4 NPTF port, SPDT, UL CSA, 9012G Series
- Regular price
- $295.00
- Sale price
- $295.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 9012GAW5
Description
Schneider Electric / Square D features an adjustable pressure switch differential 6.0 to 30 psig with a maximum allowable pressure of 475 psig and maximum voltage rating of 600v flange material zinc plated steel it comes with water tight dust tight oil tight & corrosion resistant (Indoor/Outdoor) environmental conditions and NEMA 4/4X/13 enclosure type.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | 9012GAW5 |
| Category | Sensors & Switches |
| Subcategory | Pressure Switch |
| Connection type | Screw Clamp |
| Contact Configuration | 1NO-1NC SPDT-DB |
| Contact Rating | 6 A at 120 VAC/0.27 A at 250 VDC |
| Differential | 6 to 30 psi |
| Dimensions | 3.5 in W x 2.63 in D x 5.55 in H |
| Enclosure Type | NEMA 4/4X/13 |
| Housing material | Aluminum |
| Maximum Pressure | 475 psi |
| Operating Cycles | 5000000 Cycles |
| Pressure Rating | 3 to 150 psi |
| Temperature Rating (Degrees F) | -10 to 185 deg F |
| Type | Electro-Mechanical |
Information About 9012GAW5
The Square D 9012 pressure switches are control circuit rated devices used in pneumatic or hydraulic systems on a wide variety of machine and process applications to protect the equipment and control or monitor the system pressure. A variety of products are available that include Open, Nema 1, Nema 4, and Nema 7,9 enclosures; single stage, dual stage, and differential switches.
Features
High shock-resistance
High set point stability
Internal or external range adjustment
No drain line required
Dual numerical range scale (psi and kPa)
Nitrile diaphragms and zinc plated steel flanges are standard
NC-NO, SPDT-DB, form Z, snap action, silver nickel contact
Hydraulic oil (-40 to 250 deg F), non-corrosive liquid, air, non-corrosive gas controlled fluid
1/4 in 18 NPTF conforming to UL 508 fluid connection
Regulation between 2 thresholds, adjustable scale
4 screw terminal block
Screw clamp terminal, 22 to 12 AWG electrical connection
Zinc plated steel flange
Nitrile (Buna-N) diaphragm
Die cast aluminum alloy 380, 120 operating cycles/min (maximum)
1/2 in NPT conduit entrance cable entry
Watertight, dusttight, oiltight and corrosion-resistant (indoor/outdoor) environmental conditions
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
