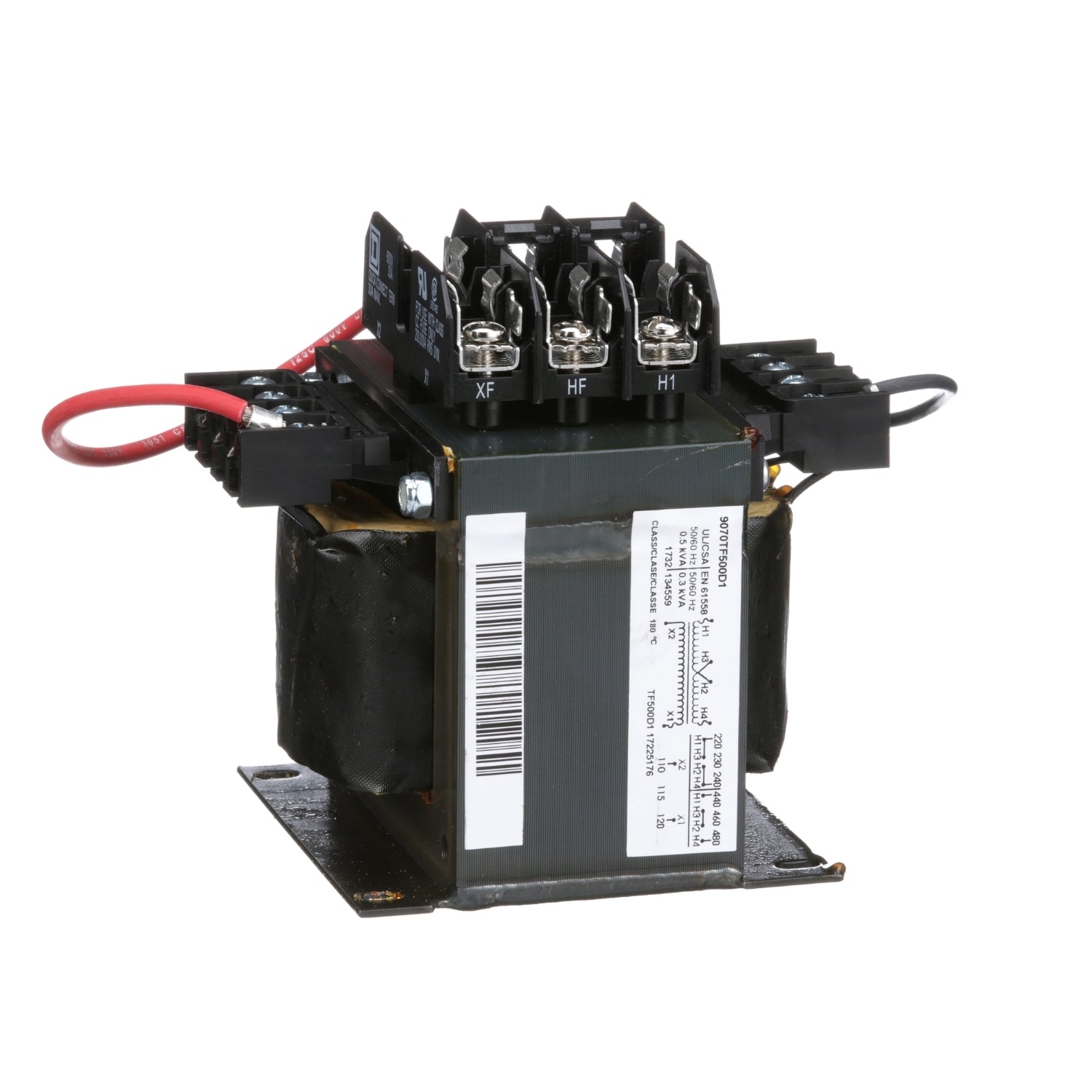

9070TF500D1 | Schneider Electric Industrial Control Transformer
- Regular price
- $262.00
- Sale price
- $262.00
- Regular price
-
Do you need help?
Product Description P/N: 9070TF500D1
Description
The 9070TF500D1 is an industrial control transformer designed by Schneider-Electric, boasting industry-leading design innovation and performance standards. It features low impedance windings that ensure excellent voltage regulation and can effectively handle the high inrush currents associated with contactors, starters, solenoids, and relays. These transformers offer versatility and come in various designs to meet the diverse needs of panel builders and machinery OEMs.
Specifically, the Type TF and EOF transformers comprise two primary fuse blocks and one secondary fuse block, which fulfills the majority of overcurrent requirements by panel builders and machinery OEMs. With pre-wired and mounted fuse blocks on top of the transformer, the Type TF and EOF units maintain the same footprint as the Type T and Type EO models, respectively.
Technical Specifications
Part Number |
9070-TF500D1 |
Category |
Transformers |
Subcategory |
Control Transformer |
Type |
TF |
Fuse Type |
0.41 x 1.50 in CC top mount |
Temperature Rise |
115 °C |
Electrical Connection |
Screw clamp terminals |
Dimensions |
|
* Height |
5.13 in (130.30 mm) |
* Width |
4.5 in (114.30 mm) |
* Depth |
5.49 in (139.45 mm) |
Material |
Copper winding |
Fingersafe Cover Compatibility |
FSC2 (Optional) |
Enclosure Type |
Not rated (open device) |
Insulation Temperature |
356 °F (180 °C) |
Information About 9070TF500D1
The 9070TF500D1 is an industrial control transformer manufactured by Schneider-Electric, renowned for its industry-leading design innovation and performance. These transformers feature low impedance windings, ensuring exceptional voltage regulation and the capacity to manage the high inrush current demands of contactors, starters, solenoids, and relays. Schneider-Electric offers a range of designs to cater to the diverse requirements of panel builders and machinery OEMs, providing unparalleled options for design engineers.
The Type TF and EOF transformers are configured with two primary fuse blocks and one secondary fuse block, which fulfill the majority of overcurrent requirements in panel building and machinery OEM applications. With pre-wired and mounted fuse blocks positioned on top of the transformer, the Type TF and EOF units maintain the same footprint as the Type T and Type EO models, respectively.
