9070TF50D1 | Schneider Electric Industrial Control Transformer

The 9070TF50D1 is an industrial control transformer manufactured by Schneider-Electric, renowned for its design innovation and performance in control power applications. Featuring low impedance windings, it ensures excellent voltage regulation and handles high inrush currents typical of contactors, starters, solenoids, and relays.

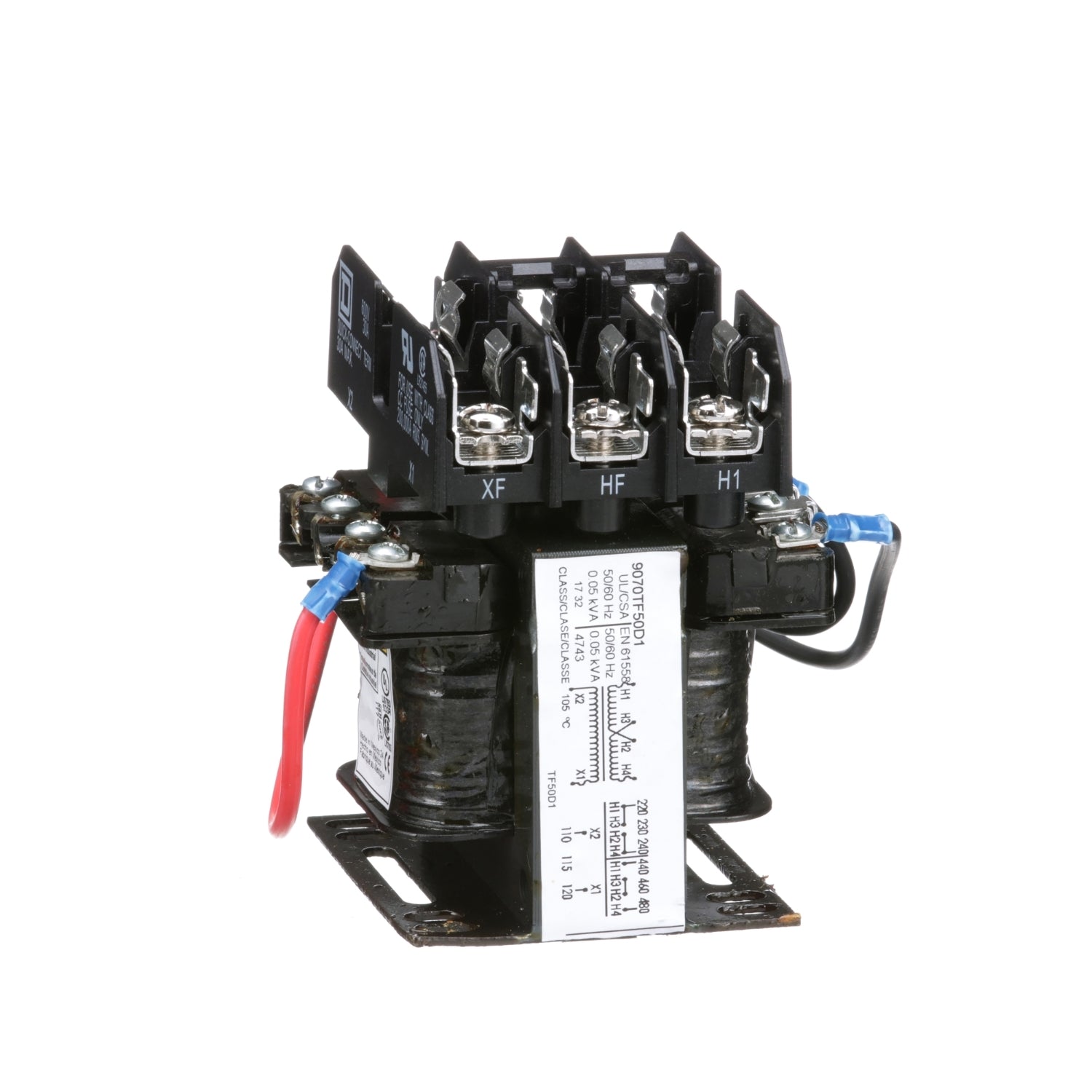

This transformer is designed to meet diverse needs, offering flexibility to panel builders and machinery OEMs. It belongs to the Type TF series and includes two primary fuse blocks and one secondary fuse block, pre-wired and mounted atop the transformer. This configuration optimizes space utilization, maintaining the same footprint as Type T units for primary and Type EO units for secondary applications.

The 9070TF50D1 is an industrial control transformer manufactured by Schneider-Electric, renowned for setting industry standards in design innovation and performance. These transformers feature low impedance windings that ensure exceptional voltage regulation, capable of handling the high inrush currents associated with contactors, starters, solenoids, and relays. Schneider-Electric offers a range of transformer designs to cater to diverse requirements of panel builders and machinery OEMs, providing extensive options for design engineers.

The Type TF transformers, including the 9070TF50D1, are configured with two primary fuse blocks and one secondary fuse block. This setup efficiently meets the majority of overcurrent protection needs in industrial applications. By pre-wiring and mounting the fuse blocks on top of the transformer, Schneider-Electric maintains a consistent footprint across transformer types, ensuring compatibility with existing installations.

This specific industrial control transformer has a power rating of 50 VA and operates on a single-phase (UL) system. It accepts primary voltages ranging from 240 x 480V and outputs a secondary voltage of 120V, conforming to UL, CSA, and CE standards for safety and performance. The transformer is equipped with CC type fuses measuring 0.41 x 1.50 inches, mounted on top of the unit for easy access and maintenance.
