9106-0082 | Reliance Electric 120VAC Servo Drive for BSA Series Model BSA-30
- Regular price
- $2,997.00
- Sale price
- $2,997.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 9106-0082
Description
The Reliance Electric 9106-0082 is a 120 VAC servo drive designed for precise control of BSA Series Model BSA-30 motion systems. Its stable single-phase input and reliable output characteristics support accurate servo performance in industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Reliance Electric |
| Category | Servo Products |
| Part Number | 9106-0082 |
| Subcategory | Servo Drive/Servo Control |
| Series | BSA Series |
| Input Voltage | 120 VAC |
| Phase | 1 Phase |
| Hz | 50/60 Hz |
Information About 9106-0082

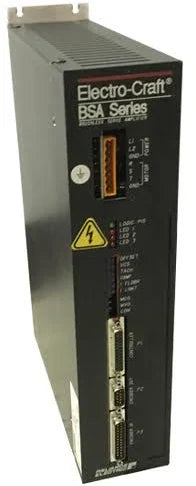

The 9106-0082 is a Reliance Electric Electro-Craft servo drive engineered for brushless motor control within the BSA Series, featuring a 120 VAC single-phase 50/60 Hz input for consistent drive operation. It provides up to 400 Hz output capability and supports several Electro-Craft motors, including LD-3009, S-3016, LD-4012, S-4030 and F-4030. The drive incorporates multiple diagnostic LEDs on the front panel to indicate system conditions such as bus over-voltage, output over-current, over-temperature, motor temperature faults, logic-supply faults and AC line loss. Equipped with a terminal strip, additional wire-connection blocks and three RS-232 ports labeled for controller and encoder interfaces, the 9106-0082 offers strong connectivity and clear fault-identification capability for efficient servo-system integration.
Key Features:
- 120 VAC Single-Phase Input: Supports stable servo-drive operation from standard industrial power sources.
- BSA Series Compatibility: Designed for use with BSA-30 servo systems and Electro-Craft brushless motors.
- Diagnostic LED Indicators: Provides clear visual fault reporting for over-voltage, over-current, temperature faults and line loss.
- Wide Output Frequency Range: Offers 0–400 Hz output capability for flexible servo-motor control.
- Multiple RS-232 Ports: Includes connections for controller input and encoder in/out communication.
- Integrated Terminal Strips: Provides structured wiring points for seven-wire and nine-wire connections.
- Front-Panel Reference Chart: Displays LED fault-pattern explanations directly on the drive for quick troubleshooting.
- Industrial-Grade Housing: Built for reliable long-term performance in servo-automation environments.
The 9106-0082 delivers the reliability and precision required for stable servo-drive control in Electro-Craft BSA Series systems.
