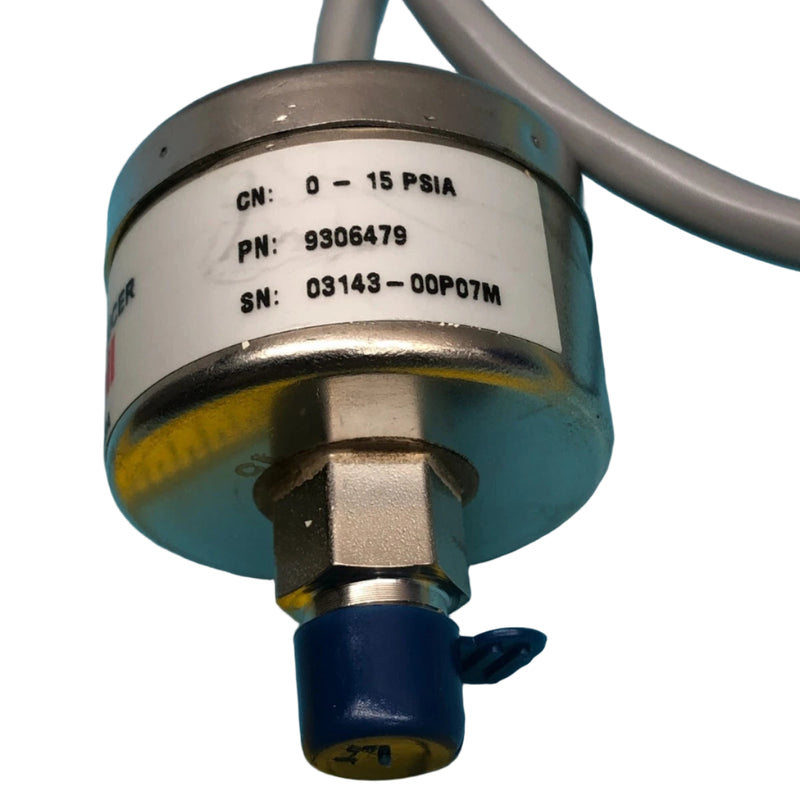

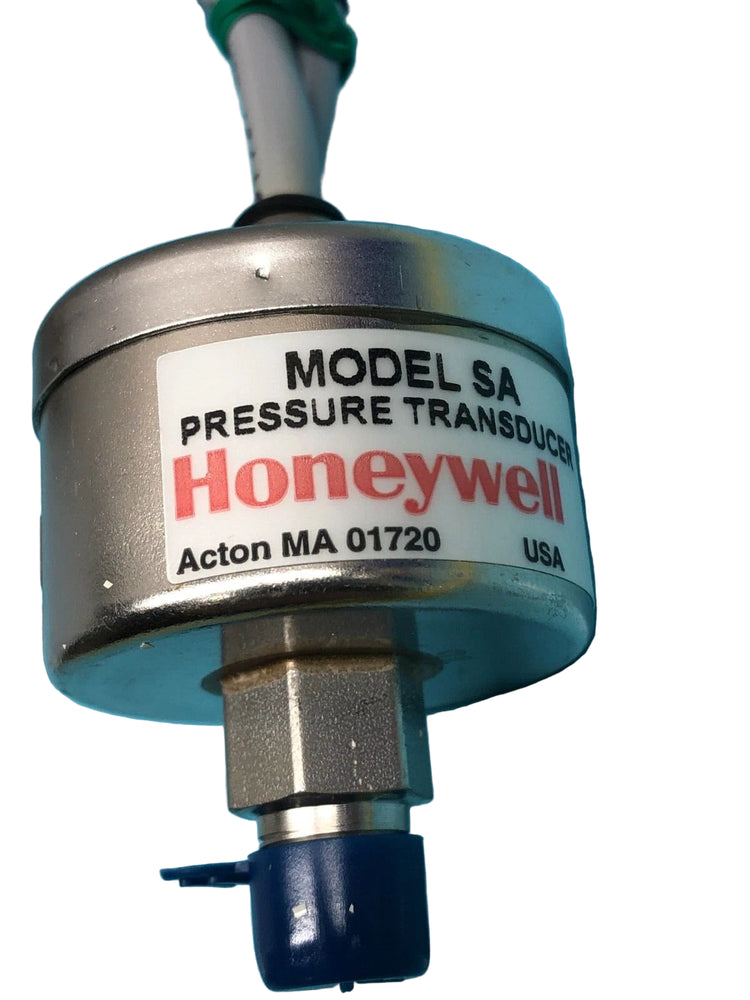

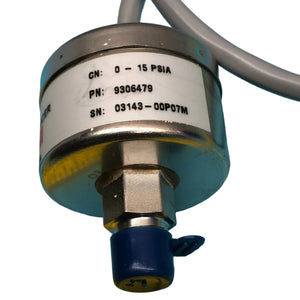

Product Description P/N: 9306479
Description
The Honeywell 9306479 is a precision pressure transducer designed for accurate measurement of absolute pressures up to 15 PSIA. It offers fast response, robust stainless-steel construction, and stable output for demanding industrial and aerospace applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Pressure Measurement |
| Part Number | 9306479 |
| Subcategory | Pressure Transducer |
| Pressure Type | Absolute |
| Pressure Range | 15 PSIA |
| Proof Pressure | 2× rated range (<500 psi) / 1.5× rated range (≥500 psi) |
| Burst Pressure | 10× rated range (<500 psi) / 5× rated range (≥500 psi) |
| Material in Contact with Media | 300 series stainless steel, braze connection |
| Weight | Less than 3 oz (without cable) |
| Shock Rating | 50 g peak (5 ms), 100 g peak (11 ms) |
| Vibration Rating | MIL-STD 810C, Figure 514-5, Curve AK |
| Output Type | Ratiometric Voltage |
| Zero Output | 1.0 ± 0.15 Vdc |
| Full Scale Output | 5.0 ± 0.1 Vdc (1.0–6.0 V range) |
| Excitation Voltage | 9–20 VDC |
| Supply Current | 15 mA typical (>500 PSI 20 mA) |
| Source Current | 10 mA nominal |
| Sink Current | 5 mA nominal |
| Response Time | <500 microseconds |
| Operating Temperature | -55°C to 105°C (-48°F to 221°F) |
| Compensated Temperature Range | -1°C to 85°C (30°F to 185°F) |
| Thermal Effect Zero | ≤ ±1.0% F.S. per 55°C within compensated range |
| Thermal Effect Full Scale | ≤ ±1.0% F.S. per 55°C within compensated range |
| Accuracy | ±1.0% F.S.O. best fit straight line |
| Electrical Connection | 3 ft shielded 3-conductor cable, 22 AWG color coded |
| Weight | Less than 3 oz (without cable) |
Information About 9306479
The 9306479 is part of Honeywell’s high-performance pressure transducer line, built to deliver reliable operation in environments with high vibration, shock, and temperature variations. Featuring a 300-series stainless steel body with a brazed connection, it ensures durability when in contact with various media. Its ratiometric voltage output design and high burst pressure capability make it suitable for use in aerospace systems, test stands, and process control instrumentation. The transducer is compatible with systems requiring a 9–20 VDC excitation and provides rapid response times for dynamic pressure measurement scenarios.
Key Features:
-
High-accuracy absolute pressure measurement: Measures up to 15 PSIA with ±1.0% full-scale output accuracy, covering non-linearity, hysteresis, and non-repeatability for precise monitoring.
-
Robust stainless steel construction: Wetted parts are made from 300 series stainless steel with a brazed connection, ensuring compatibility with a wide range of media and long-term durability.
-
Excellent shock and vibration resistance: Rated for up to 100 g shock and tested to MIL-STD 810C vibration standards for reliability in high-stress applications.
-
Stable ratiometric voltage output: Provides a consistent 1.0 Vdc zero output and 5.0 Vdc full-scale output (1.0–6.0 V range), ensuring compatibility with precision measurement systems.
-
Rapid response time: Reacts to pressure changes in less than 500 microseconds, enabling real-time monitoring in dynamic environments.
-
Wide operating temperature capability: Functions from -55°C to 105°C with a compensated range from -1°C to 85°C, maintaining accuracy in varied climates.
-
EMI/RFI protection: Shielded cable construction and compliance with EMI/RFI standards (10 V/m from 150 kHz to 1 GHz) ensure reliable operation in electrically noisy environments.
-
Low power consumption: Typical supply current of 15 mA, minimizing power requirements in continuous operation setups.
The 9306479 delivers the reliability and precision required for demanding industrial, aerospace, and process control applications where accuracy and environmental resilience are critical.
