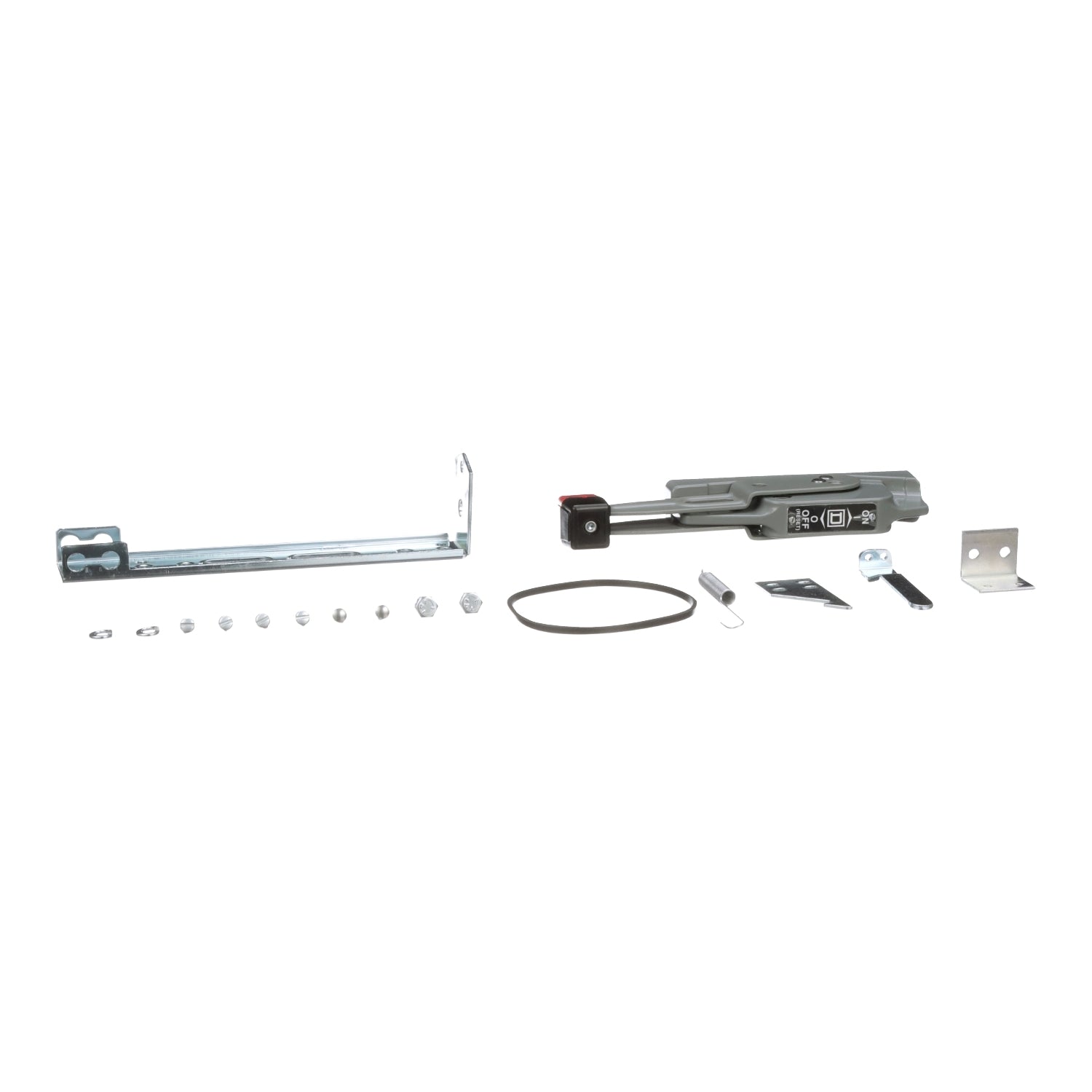

9422A1 | Schneider Electric Operating Mechanism
- Regular price
- $125.00
- Sale price
- $125.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 9422A1
Description
The 9422A1 is a flange-mounted operating mechanism designed for use with Square D's PowerPacT M, P, and R-frame circuit breakers. It enables field modification of compatible breakers throughout the design and construction process. This handle mechanism features a 6-inch handle depth and is suitable for enclosures with NEMA ratings of 1, 3R, 4, and 12.
Technical Specifications
|
Attribute |
Description |
|
|
Part # |
9422-A1 |
|
|
Category |
Panel Accessories |
|
|
Subcategory |
Handle |
|
|
Product Type |
Variable Depth |
|
|
Compatible Devices |
* All circuit breaker mechanisms * Disconnect switches (30-200 Amps) |
|
|
Enclosure Compatibility |
NEMA 1/3R/4/12 enclosures |
|
|
Handle Length |
6 inches (152.40 mm) |
|
|
Net Weight |
2.78 lb(US) (1.26 kg) |
|
Information About 9422A1
The 9422A1 is a flange-mounted operating mechanism designed for a broad range of PowerPacT M, P, and R-frame circuit breakers manufactured by Square D. This handle mechanism offers increased flexibility within the electrical construction process by enabling field installation or modification of compatible breakers at any stage, from design to final assembly.
The 9422A1 operating mechanism is suitable for various industrial applications requiring the operation of PowerPacT M, P, and R-frame circuit breakers within NEMA 1-rated (general purpose), NEMA 3R-rated (outdoor rain and ice protection), NEMA 4-rated (water-tight and dust-tight), or NEMA 12-rated (dust-tight and oil-tight) enclosures. These applications may encompass power distribution panels, motor control centers, and other industrial electrical control systems.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
