943-F4V-2D-1C0-300E | Honeywell Ultrasonic Proximity Sensor
- Regular price
- $980.40
- Sale price
- $980.40
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 943-F4V-2D-1C0-300E
Description

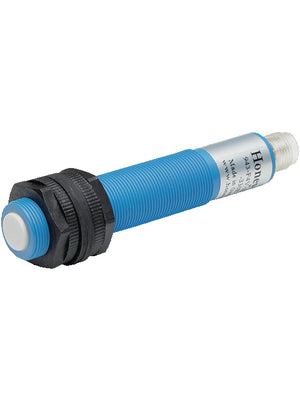

The Honeywell 943-F4V-2D-1C0-300E is an ultrasonic proximity sensor designed for non-contact object detection with high measurement accuracy. It operates over a sensing range of 200 to 800 mm and provides stable detection performance in industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Sensors |
| Part Number | 943-F4V-2D-1C0-300E |
| Subcategory | Ultrasonic Proximity Sensors |
| Sensor Technology | Ultrasonic |
| Detection Type | Proximity / Distance Detection |
| Sensing Range (Min) | 200 mm |
| Sensing Range (Max) | 800 mm |
| Switching Frequency | 150 Hz |
| Sensitivity | 0.2% or 1 mm |
| Supply Voltage (Min) | 15 VDC |
| Supply Voltage (Max) | 30 VDC |
| Mounting Style | Threaded |
| Operating Temperature (Min) | -15 °C |
| Operating Temperature (Max) | +70 °C |
| Weight | 3.01 lbs |
Information About 943-F4V-2D-1C0-300E
The 943-F4V-2D-1C0-300E is a Honeywell ultrasonic sensor developed for precise proximity and distance measurement without physical contact. It uses ultrasonic detection technology to reliably sense targets regardless of surface color or transparency. The sensor supports stable operation across a defined temperature range and integrates easily into control systems using standard DC power supplies. Its threaded housing allows secure mounting in industrial machinery and automation assemblies.
Key Features
- Ultrasonic Detection Technology: Provides reliable non-contact sensing independent of target material or color.
- Defined Sensing Range: Measures distances from 200 mm to 800 mm for controlled proximity detection.
- High Measurement Precision: Sensitivity rated at 0.2% or 1 mm for accurate position feedback.
- Fast Switching Response: Switching frequency of 150 Hz supports dynamic detection requirements.
- Wide DC Supply Range: Operates from 15 to 30 VDC for flexible system compatibility.
- Threaded Industrial Mounting: Enables secure and repeatable installation in machinery and equipment.
The 943-F4V-2D-1C0-300E delivers the reliability and precision required for ultrasonic proximity sensing in industrial automation applications.
