9905-020 | Woodward Load Sharing and Speed Control Series

Description

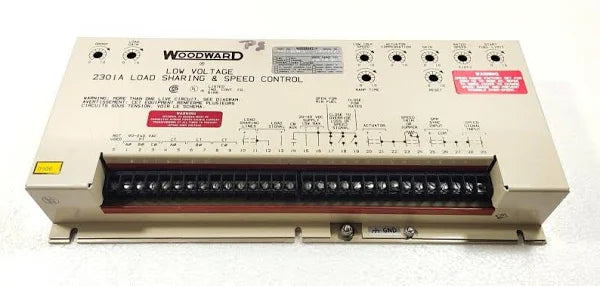

Woodward's Part 9905-020, belonging to the 2301A Load Sharing and Speed Control Series, is a forward-acting, low-voltage control unit featuring an individual actuator. Notably, it lacks a deceleration ramp function, with the actuator current ranging from 0 to 200 mA.

During power-up, the unit requires an input power of 20-40 Vdc, necessitating compliance with IEC standards for safety extra-low voltage (SELV) power sources.

Operating within a temperature range of -40 to +185 degrees Fahrenheit, this model features twenty-nine terminals. Notably, terminals two and three control the minimum fuel contact, essential for normal prime mover shutdown but not intended for emergency stop use.

Technical Specifications

Information About 9905-020

The Woodward 9905-020 is a high-performance tachometer, generator, and speed indicator, specifically designed for precise control and monitoring in various industrial applications. Falling under the controls and indicators category, and more precisely in the subcategory of tachometer/generator/speed indicators, this device plays a crucial role in maintaining the efficiency and safety of industrial machinery.

With dimensions of 15.25 inches in width, 7.125 inches in height, and 2.5 inches in depth, the Woodward 9905-020 is compact yet robust, fitting easily into a wide range of control panels and equipment setups. Despite its compact size, it is built to withstand the harshest industrial environments, ensuring long-lasting performance and reliability.

The 9905-020 operates within a wide temperature range of –40 to +85 °C (–40 to +185 °F), making it suitable for use in extreme conditions. This broad operating temperature range ensures that the device can function effectively in both very hot and very cold environments, providing reliable performance regardless of the surrounding conditions.

Belonging to the 2301A series, the Woodward 9905-020 adheres to stringent quality and performance standards. It operates on a power supply range of 20-40 VDC, offering flexibility in installation and compatibility with various power sources. The device consumes a maximum power of 15 watts, making it energy-efficient without compromising on performance.

The Woodward 9905-020 features a single actuator type with forward-acting actuation, and it supports an actuator current range of 0-200 mA. This specification is critical for ensuring precise and responsive control of machinery, enabling accurate speed measurement and adjustment. The forward-acting actuation provides quick and reliable responses to changes in speed, enhancing the overall control capabilities of the system.

Weighing 3 pounds and 14 ounces, the 9905-020 is relatively lightweight, facilitating easy handling and installation. Its manageable weight and compact size contribute to its ease of integration into existing systems, minimizing the need for significant modifications and reducing installation time.

Manufactured by Woodward, a leader in industrial control solutions, the 9905-020 tachometer/generator/speed indicator is built to the highest standards of quality and reliability. Woodward's reputation for excellence is reflected in the meticulous design and rigorous testing of this device, ensuring it meets the demanding requirements of industrial applications.

In summary, the Woodward 9905-020 tachometer/generator/speed indicator is a versatile and reliable device designed for precise speed control and monitoring in industrial environments. Its compact dimensions, wide operating temperature range, efficient power usage, and robust construction make it an ideal choice for a variety of applications. With its advanced features and adherence to high standards, the 9905-020 ensures optimal performance and reliability, supporting the efficient and safe operation of industrial machinery.
