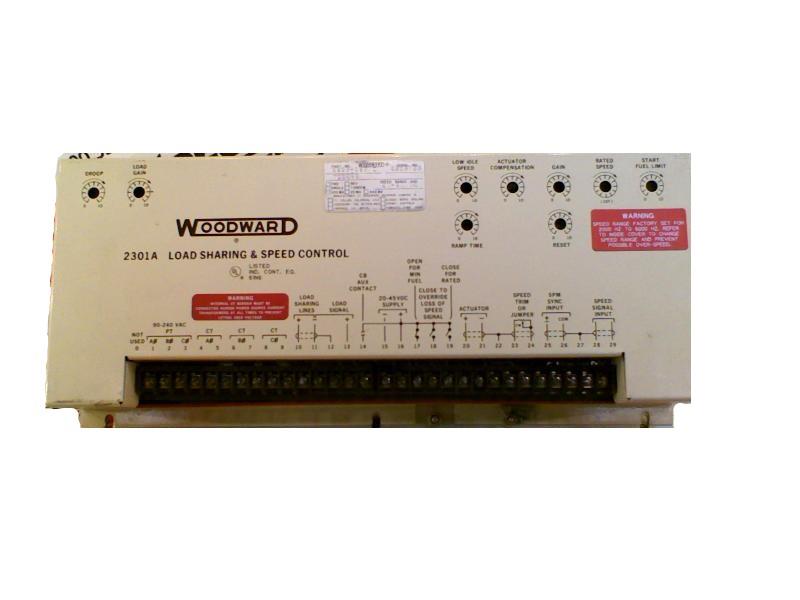

9905-068 | Woodward Load Sharing & Speed Control Module 2301A Series

Description

The 9905-068 is a Woodward Load Sharing & Speed Control Module from the 2301A Series. It is designed to regulate and control the speed of prime movers, ensuring proper load sharing in generator systems. This module is used in applications requiring precise speed control and load distribution across multiple generators or engines in parallel operation.

Technical Specifications

Information About 9905-068

The Woodward 9905-068 is a load sharing and speed control module designed for industrial applications where precise control of prime mover speed and load distribution is critical. This product, categorized under drives and subcategorized as a speed regulator or speed controller module, is part of Woodward's 2301A series, engineered to provide reliable and accurate performance in environments where load sharing and speed regulation are required for the efficient operation of generators or engines.

The 9905-068 module is built to control the speed of prime movers, such as engines and turbines, ensuring they operate at optimal speed while sharing load evenly when running in parallel with other units. The load-sharing capability is a key feature, ensuring that multiple prime movers work together efficiently, preventing overloading of any single unit and distributing the power load equally. This makes the 9905-068 ideal for applications in power generation systems where multiple generators or engines must run simultaneously and share load efficiently.

The module is equipped with screw clamp terminals, a feature designed to simplify installation and ensure secure, reliable connections. The screw clamp design offers a robust and vibration-resistant method for wiring, which is particularly beneficial in industrial environments where systems are subject to significant mechanical stress. The terminals allow for easy connection of external components, facilitating the integration of the module into existing control systems with minimal disruption or complexity.

The Woodward 9905-068 is user-adjustable, providing flexibility for system operators to configure the module according to specific application requirements. This adjustability allows for fine-tuning of the speed control and load-sharing parameters, ensuring optimal performance across various operating conditions. Whether used in standalone prime movers or systems operating in parallel with other units, the module can be adjusted to meet the specific needs of the equipment and the operational environment.

Operating in a wide temperature range of -40 to +85°C, the 9905-068 is designed to function reliably in harsh industrial environments where temperature extremes are common. This broad operating temperature range ensures that the module can be deployed in a variety of climates and industrial settings, from outdoor power generation plants to enclosed industrial systems. The ability to withstand extreme temperatures makes the 9905-068 suitable for applications in sectors such as oil and gas, power generation, and heavy industry, where equipment is often exposed to fluctuating environmental conditions.

With a power consumption of less than or equal to 15 watts, the 9905-068 is designed to operate efficiently, minimizing energy usage while providing reliable control functions. This low power consumption contributes to the overall efficiency of the system, reducing operational costs while ensuring that the speed control and load-sharing functions are performed without unnecessary energy expenditure. The module’s energy-efficient design makes it a cost-effective solution for long-term use in demanding industrial applications.

The speed sensor input impedance of the 9905-068 is rated between 100 and 300 ohms, which provides compatibility with a range of speed sensors commonly used in industrial systems. The module’s ability to interface with different types of speed sensors enhances its versatility, allowing it to be integrated into various configurations and control systems. This flexibility ensures that the 9905-068 can be used across a wide array of applications where precise speed measurement and control are necessary.

As a Woodward product, the 9905-068 is built to the high standards of quality and durability that the company is known for. Woodward is a leader in control solutions for energy, aerospace, and industrial markets, and the 9905-068 reflects this expertise with its robust design and reliable performance. The module is designed for long-term use in critical applications where dependable speed regulation and load sharing are essential for maintaining system stability and operational efficiency.

In terms of application, the Woodward 9905-068 is ideally suited for use in power generation systems, particularly those that operate multiple generators in parallel. Its load-sharing capabilities ensure that power output is evenly distributed across all units, preventing overloads and ensuring that each generator operates within its optimal performance range. Additionally, the speed control functionality allows the module to maintain precise control over the speed of the prime movers, ensuring that they operate at the required speed regardless of load variations or other external factors.

The 9905-068 can also be used in industrial engines and turbines, where speed regulation and load distribution are critical for maintaining process efficiency and equipment longevity. By ensuring that prime movers share load evenly and operate at their designated speeds, the 9905-068 helps prevent excessive wear and tear on equipment, reducing the likelihood of breakdowns and extending the life of the machinery.

In summary, the Woodward 9905-068 load sharing and speed control module is a highly reliable and efficient solution for controlling prime mover speed and load distribution in industrial applications. With features such as load sharing, screw clamp terminals, user adjustability, and compatibility with speed sensors, the 9905-068 is designed to meet the demands of modern industrial systems. Its wide operating temperature range, low power consumption, and robust design make it suitable for use in harsh environments, ensuring long-term performance and reliability in applications requiring precise control and stability.
