9905-096 | Woodward Automatic Generator Loading Control AGLC Series

Description

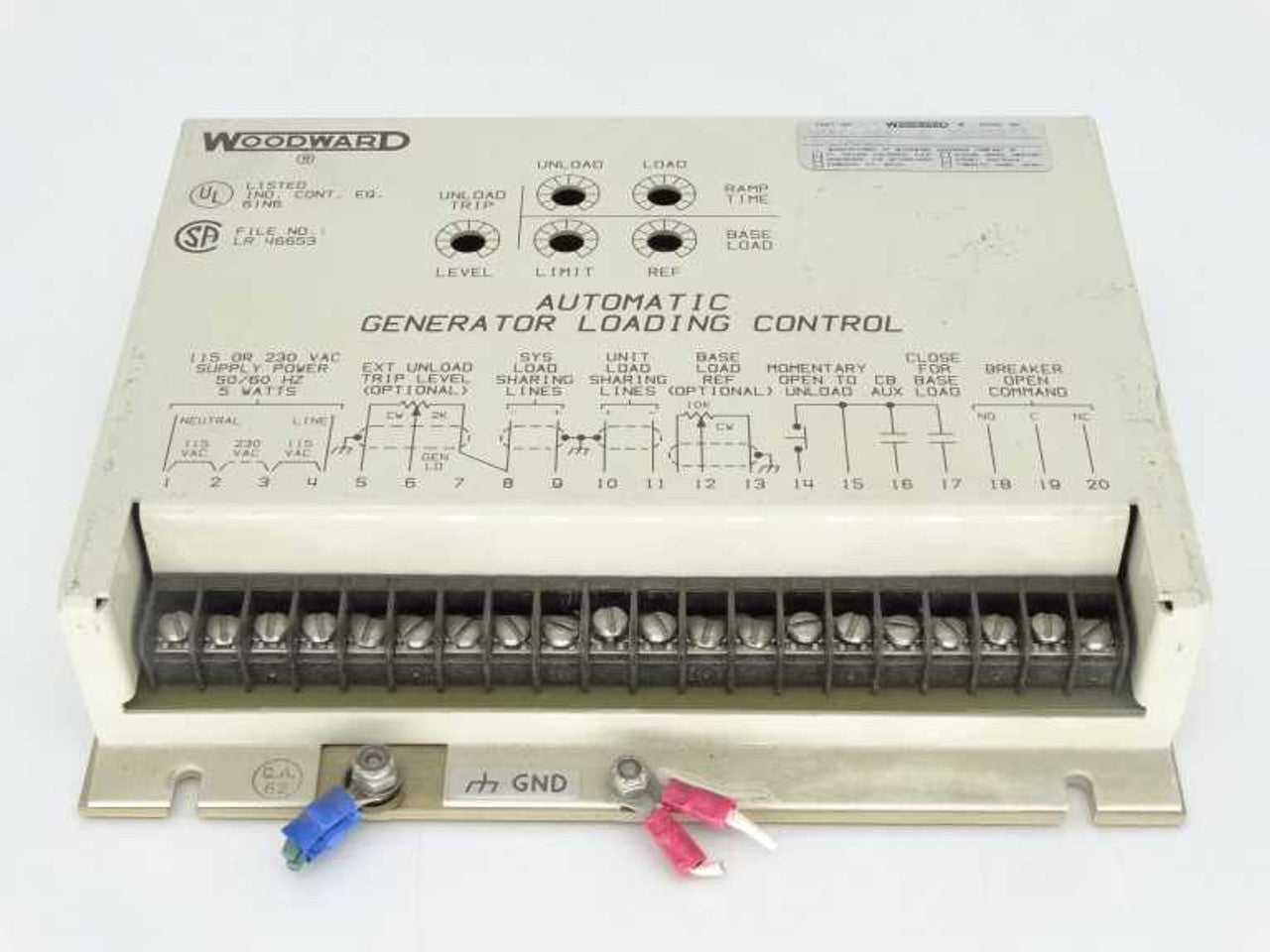

The 9905-096 is an Automatic Generator Loading Control (AGLC) from the Woodward AGLC Series. It is designed to manage and regulate the load on a generator in power generation systems. The unit provides precise control over generator loading, ensuring stable operation and efficient performance in varying load conditions. Suitable for integration into generator control systems, it is engineered for reliability in industrial applications.

Technical Specifications

Information About 9905-096

The Woodward 9905-096 is a speed regulator categorized under drives, specifically designed for use in generator and engine control systems. This device provides precise speed regulation to ensure stable and efficient generator operation in power generation applications. It is built for industrial environments, where consistent speed control is critical for maintaining generator load management and operational stability.

The 9905-096 is housed in a durable metal chassis, which ensures both physical protection and durability in challenging industrial environments. The chassis dimensions are compact, measuring 8.5 inches in width, 7.5 inches in height, and 2 inches in depth, making it suitable for integration into control cabinets and enclosures where space may be limited. Despite its robust construction, the unit is lightweight, weighing only 2.25 pounds, which facilitates easy installation and handling during system integration or maintenance.

One of the key features of the 9905-096 speed regulator is its high level of shock resistance. The unit is rated for shock resistance up to 60 Gs, allowing it to withstand high levels of mechanical stress and vibration commonly encountered in industrial environments. This level of resistance ensures long-term reliability and functionality, even in harsh operating conditions where other components may experience damage or failure due to excessive vibration or impact.

The input voltage range for the 9905-096 is 170 to 264 V, supporting both 50 Hz and 60 Hz frequencies. This wide voltage range makes the unit adaptable to various power systems and geographies, providing flexibility in terms of deployment and integration into existing generator or engine control systems. The power consumption of the unit is rated at 5 VA, which ensures efficient energy usage without overloading the electrical system.

The operating temperature range for the 9905-096 is broad, capable of functioning in temperatures as low as –40°F and as high as +185°F. This wide temperature range ensures the device’s performance in extreme environmental conditions, such as outdoor installations or industrial sites with fluctuating temperatures. The unit’s storage temperature range extends even further, from –55°C to +105°C (–67°F to +221°F), allowing the regulator to be safely stored in a wide range of climates without risk of damage.

The 9905-096 is built to meet industry safety and quality standards, being UL and CSA listed. These certifications ensure that the device complies with recognized safety and performance standards, making it a trusted component for industrial systems where safety and reliability are paramount.

Overall, the Woodward 9905-096 speed regulator is a reliable, durable, and efficient component designed for precise control of generator speed in industrial environments. Its robust metal construction, high shock resistance, wide input voltage range, and ability to operate in extreme temperatures make it well-suited for demanding applications where stability and control are essential. The compact and lightweight design also facilitates easy integration into existing control systems, while its compliance with UL and CSA standards ensures safe and consistent operation. This regulator is a crucial component for ensuring the smooth operation of power generation systems, contributing to both system efficiency and operational reliability in a variety of industrial settings.
