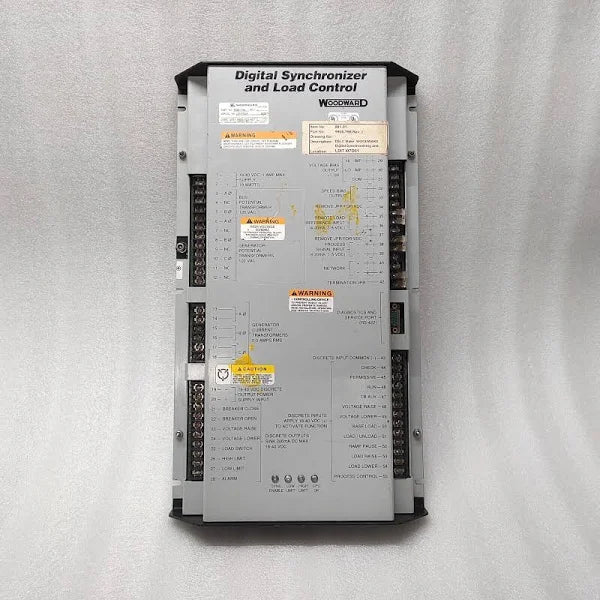

9905-796 | Woodward DSLC Digital Synchronizer Load Control Module
- Regular price
- $3,367.00
- Sale price
- $3,367.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 9905-796
Description
The Woodward 9905-796 is a legacy DSLC module designed for synchronization and load control without power factor or process control functions. It operates with PT-based sensing and is intended for industrial generator and switchgear applications using an open-delta PT configuration.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Woodward |
| Category | PLCs/Machine Control |
| Part Number | 9905-796 |
| Subcategory | PLC Module/Rack |
| Model | DSLC 9905-796 |
| PT Configuration | Open Delta |
| Nominal Input Voltage | 120 VAC |
| Minimum Sensing Voltage | 65 VAC |
| Maximum Sensing Voltage | 150 VAC |
| PT Terminal Sets | 3–5, 6–8, 8–10, 10–6 |
| Speed Bias Output | +3.0 VDC |
| Operating Temperature | -40 to +70 °C |
| Storage Temperature | -55 to +105 °C |
| Dimensions | 460.65 × 264.16 × 58.42 mm |
| Weight | < 7 lb |
| Intended Region Use | US / Canada switchgear |
Information About 9905-796
The 9905-796 is a Woodward DSLC unit developed for generator synchronization and basic load control in industrial power systems. It utilizes PT sensing with an open-delta configuration, commonly applied in US and Canadian switchgear designs where the B phase is grounded. The module requires a minimum of 65 VAC for sensing and supports up to 150 VAC, with a nominal operating voltage of 120 VAC. As a legacy device, it does not include power factor control or advanced process control capabilities, but it remains in service across installed base applications.
Key Features
- DSLC legacy design: Provides synchronization and load control without power factor or process control functions.
- Open-delta PT configuration: Uses A–B and C–B phase PTs with grounded B phase for regional switchgear compatibility.
- Defined sensing voltage range: Operates reliably from 65 to 150 VAC with a nominal 120 VAC input.
- Terminal-based PT connections: Supports multiple PT terminal sets for flexible wiring arrangements.
- Wide environmental tolerance: Rated for operation from -40 to +70 °C and storage to +105 °C.
- Compact rack-mount form factor: Fits standard control panels with manageable weight for installation and service.
- Proven field deployment: Continues to be used in legacy generator control systems worldwide.
The 9905-796 delivers the reliability and precision required for legacy synchronization and load control in Woodward DSLC-based power systems.
