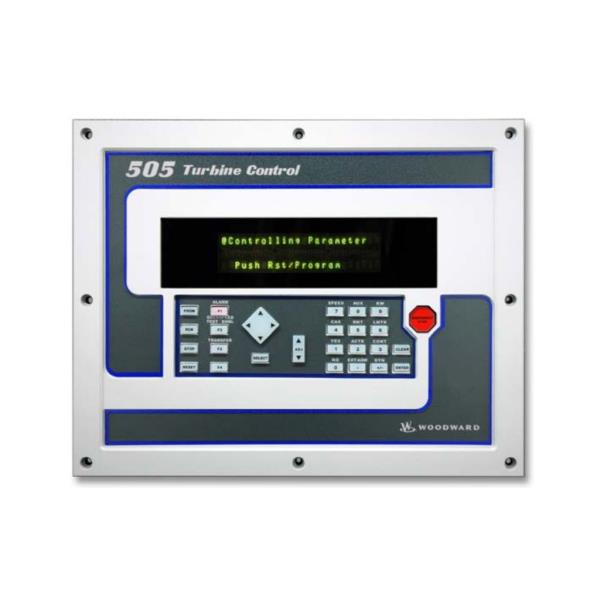

9907-163 | Woodward Configurable Turbine Digital Governor
- Regular price
- $5,964.00
- Sale price
- $5,964.00
- Regular price
-
Do you need more quantity?
Product Description P/N: 9907-163
Description
The 9907-163 is a Woodward Configurable Turbine Digital Governor designed for precise turbine control applications. This device supports advanced configuration capabilities for managing turbine speed and load with digital accuracy. It features integrated hardware and software components, ensuring reliable performance in demanding operational environments.
Technical Specifications
Part # |
9907-163 |
Category |
HMI / MMI / OIT |
Subcategory |
Operator Interface |
Weight |
8.00 lbs |
Dimensions |
W14in. x H11in. x D4in. |
Display Type |
24 character LED |
Enclosure Type |
NEMA Type 4X |
Features |
Emergency Stop Button |
Input Voltage |
24VDC |
Inputs |
6 Programmable Current Inputs, 16 Discrete Contact Inputs |
Keypad/Display |
30 Keys |
Operating Temperature |
Passes Lloyd’s type ENV3 Dry Heat test |
Slot Type |
RS232C/RS422 serial port |
Software Version |
OpView™ and 505View |
Information About 9907-163
The 9907-163 is a highly versatile and reliable Human-Machine Interface (HMI) designed for industrial applications, offering robust control and monitoring capabilities. It falls under the HMI/MMI/OIT category, specifically within the operator interface subcategory. This device is engineered to provide efficient interaction between operators and machinery, making it a crucial component in various industrial control systems.
Measuring W14 inches by H11 inches by D4 inches, the 9907-163 is compact and space-efficient, weighing 8.00 lbs, which makes it suitable for installations with limited space without compromising functionality. The unit features a 24-character LED display that ensures clear visibility and easy reading of operational data, even in low-light conditions. The LED display provides real-time feedback, allowing operators to monitor and manage system parameters efficiently.
One of the standout features of the 9907-163 is its NEMA Type 4X enclosure, which offers robust protection against harsh environmental conditions. This enclosure rating ensures that the device is resistant to corrosion, dust, and water, making it suitable for both indoor and outdoor applications in demanding industrial environments. The device also includes an emergency stop button, a critical safety feature that enables operators to quickly halt operations in case of emergencies, ensuring safety and preventing damage to equipment.
The 9907-163 operates on a 24VDC input voltage, making it compatible with a wide range of power supply systems commonly used in industrial settings. It is equipped with six programmable current inputs and 16 discrete contact inputs, providing extensive flexibility for interfacing with various sensors, switches, and other input devices. This level of input versatility makes the 9907-163 an ideal solution for complex control systems requiring multiple input channels for accurate and comprehensive monitoring.
The interface includes a 30-key keypad, designed for ease of use and efficient operation. The keypad allows operators to input commands quickly, navigate through system menus, and configure settings without the need for additional input devices. The combination of the LED display and keypad provides a user-friendly interface that enhances operational efficiency and reduces the potential for operator errors.
The 9907-163 is built to withstand challenging operational conditions. It meets the Lloyd’s type ENV3 dry heat test, demonstrating its ability to operate reliably in high-temperature environments. This makes the device suitable for installation in locations where ambient temperatures may vary significantly, ensuring consistent performance and longevity.
For communication and connectivity, the 9907-163 is equipped with RS232C/RS422 serial port slots, enabling integration with various communication networks and protocols. This connectivity option allows the device to interface with other control systems and devices, facilitating seamless data exchange and integration into broader control networks.
The device supports OpView™ and 505View software versions, providing powerful tools for configuring, monitoring, and managing system operations. These software platforms offer intuitive interfaces and advanced features for data logging, alarm management, and system diagnostics, enhancing the overall functionality and usability of the 9907-163. Operators can leverage these software tools to customize the interface and functionality of the HMI to meet specific application requirements, improving operational control and monitoring capabilities.
In summary, the 9907-163 HMI is a robust and versatile operator interface designed for demanding industrial applications. With its compact size, durable NEMA Type 4X enclosure, emergency stop feature, extensive input options, and reliable performance in varying environmental conditions, it is an ideal choice for industries seeking a reliable and efficient solution for machine control and monitoring.
Manufacturer information
Woodward is a leading manufacturer of control systems and components for the aerospace and industrial sectors. With a history spanning over 150 years, Woodward specializes in providing innovative solutions for engine and energy control, serving customers worldwide.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
