9907-164 | Woodward Digital Microprocessor Controller Module
- Regular price
- $2,787.00
- Sale price
- $2,787.00
- Regular price
-
Do you need more quantity?
Product Description P/N: 9907-164
Description

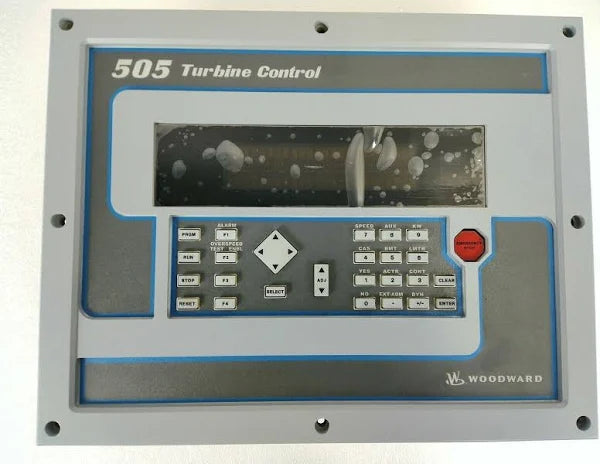

The 9907-164 model is a Digital Microprocessor Controller Module, part of the 505 and 505E Microprocessor-based governor control units. These units are specifically engineered for the operation of steam turbines, turbogenerators, and turboexpander modules. Originally developed and manufactured by Woodward Inc., a leading industrial manufacturer founded in 1870, the 505/505E series remains prominent in the market.
Designed to control steam turbines by managing single extraction and/or admission, the 9907-164 unit utilizes split-stage actuators to drive steam inlet valves. Field configuration is possible by on-site operators, facilitated by menu-driven software accessible through the integrated operator control panel on the unit's front face. The control panel features a two-line text display, with 24 characters per line.
Technical Specifications
Part # |
9907-164 |
Category |
HMI / MMI / OIT |
Subcategory |
Operator Interface |
Dimensions |
14W x 11H x 4D (Inches) |
Display Type |
Two line x 24 characters |
Enclosure Type |
IEC 60529, IP 56 |
Features |
Overspeed Test Buttons |
Humidity Standards |
20 and 55 °C at 95% for 48hrs |
Input Voltage |
+24 Vdc at 1 A |
Keypad/Display |
30 Multi-function Keypad |
Operating Temperature |
–4 to +140 F |
Slot Type |
RS-232/RS-422 with Modbus Protocol |
Software Version |
505View or OpView™ |
Storage Temperature |
-40 to +185 F |
Weight |
9.11 lbs |
Information About 9907-164
The 9907-164 is a digital microprocessor controller module, part of the 505 and 505E Microprocessor-based governor control units. Developed by Woodward Inc., an industrial manufacturer founded in 1870, it remains a prominent player in the market. Designed for steam turbines, turbogenerators, and turboexpander modules, the 9907-164 unit operates by controlling a single extraction and/or admission for the turbine, utilizing the turbine’s split-stage actuators to drive the inlet valves for steam.
Configurable in the field by on-site operators, the unit features menu-driven software controlled by the operator control panel integrated onto its front-facing side. The panel boasts a display of two lines of text, with 24 characters per line.
Equipped with a range of inputs, the 9907-164 includes 16 contact inputs (4 dedicated, 12 programmable), and 6 programmable current inputs ranging from 4 to 20 mA. Standard features of the 9907-164 encompass critical speed avoidance, valve limiters, the auto start sequence, and the first-out indicator for shutdowns.
Manufacturer information
Woodward is a leading manufacturer of control systems and components for the aerospace and industrial sectors. With a history spanning over 150 years, Woodward specializes in providing innovative solutions for engine and energy control, serving customers worldwide.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
