Product Description P/N: 9PXMBAT
Description

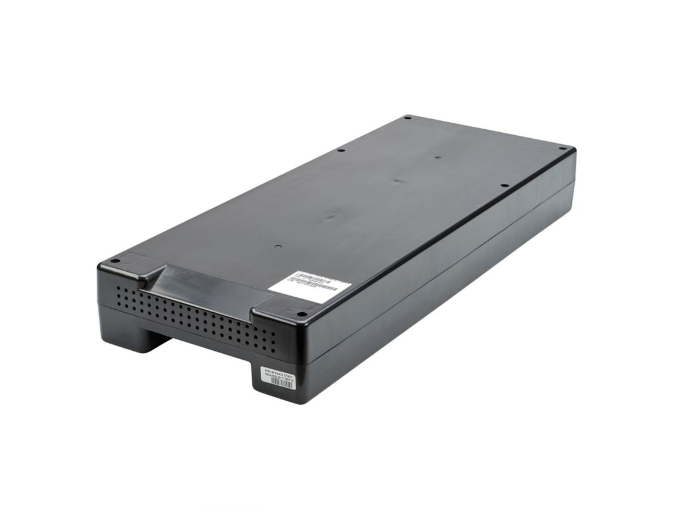

The Eaton 9PXMBAT is a replacement battery module designed for use with Eaton 9PX UPS systems, providing reliable runtime extension and hot-swappable energy storage. Built for long service life and optimized performance, this battery pack supports Eaton’s online double-conversion UPS platforms in both enterprise and industrial power-quality applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Power Protection Equipment |
| Part Number | 9PXMBAT |
| Subcategory | UPS Battery Modules |
| Compatibility | Eaton 9PX UPS Systems |
| Battery Management | ABM 3-stage charging technology |
| Extended Battery Capability | Yes |
| Hot Swap Capability | Yes |
| Topology Supported | Online / Double-conversion UPS |
| Input Frequency Range | 60 Hz (50–70 Hz), 50 Hz (40–60 Hz) |
| Output Frequency | 60 Hz (UPS dependent) |
| Input Connection | Hardwired (UPS battery interface) |
| Temperature Range | 0° to 40°C (32° to 104°F) |
| Relative Humidity | 5–95% non-condensing |
| Compliances | TAA, FCC |
| Certifications | IEC rated, cULus listed |
| Color | Black/Silver |
| Housing Type | UPS battery compartment module |
| Dimensions | 21.5 in H × 8.5 in D × 3 in W |
| Weight | 33 lb |
Information About 9PXMBAT
The 9PXMBAT is part of Eaton’s modular battery series for the 9PX UPS family, engineered to maintain clean, conditioned backup power while allowing scalable runtime through additional battery modules. This model uses Eaton’s ABM three-stage charging technology to maximize battery longevity and provide early replacement alerts. Its hardwired configuration, robust construction, and TAA/FCC-compliant design make it suitable for IT infrastructure, edge computing, industrial controls, and sensitive equipment requiring uninterrupted online power protection. Each 9PX battery slot requires two modules, ensuring balanced energy delivery and stable electrical performance.
Key Features:
- Modular Battery Design: Compatible with Eaton 9PX UPS systems for adding or replacing extended-runtime capacity.
- ABM Charge Technology: Three-stage charging increases battery life by up to 50% and provides predictive replacement alerts.
- Hot-Swappable Module: Allows safe replacement without powering down connected loads.
- TAA & FCC Compliance: Supports government, regulated, and commercial installations.
- Wide Environmental Tolerance: Operates from 0° to 40°C with up to 95% non-condensing humidity.
- High-Reliability Construction: Designed for continuous online/double-conversion UPS operation.
- Internal Bypass Support: Integrates seamlessly with UPS systems featuring internal bypass for uninterrupted operation.
- Compact Footprint: Narrow housing simplifies integration into UPS battery bays and rack systems.
The 9PXMBAT delivers the reliability and precision required for mission-critical UPS runtime extension and power-conditioning applications.
