A02B-0072-B501 | Fanuc PC Board
- Regular price
- $3,150.00
- Sale price
- $3,150.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: A02B-0072-B501
Description

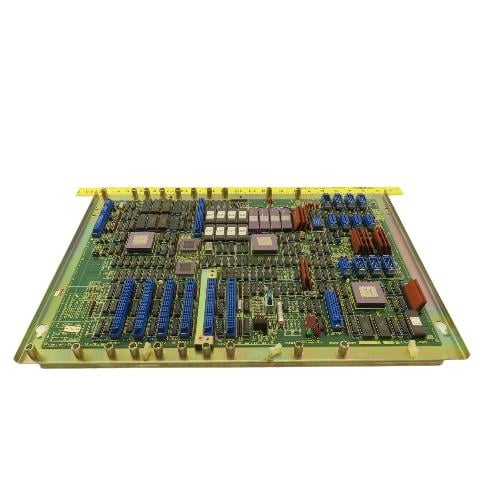

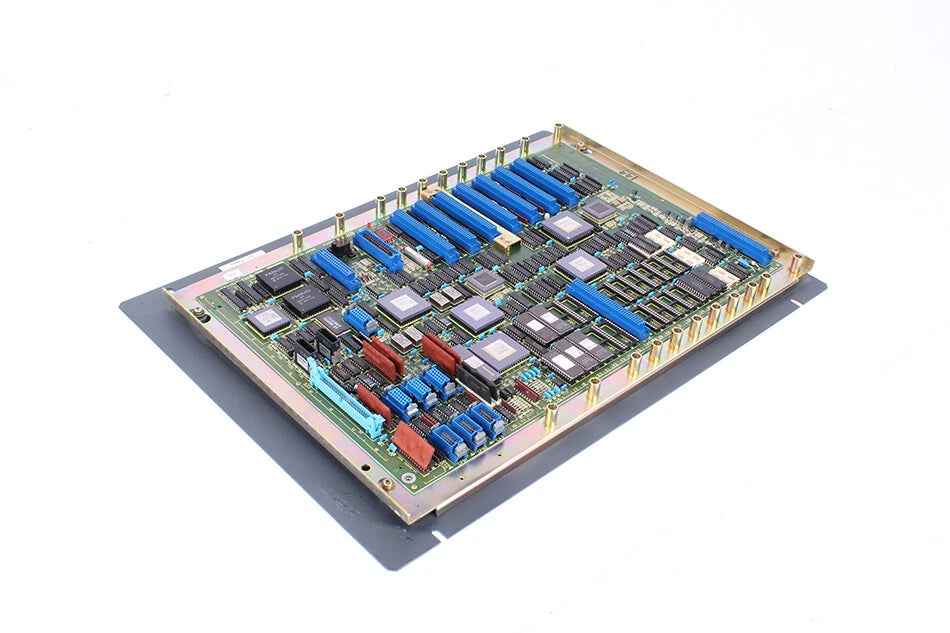

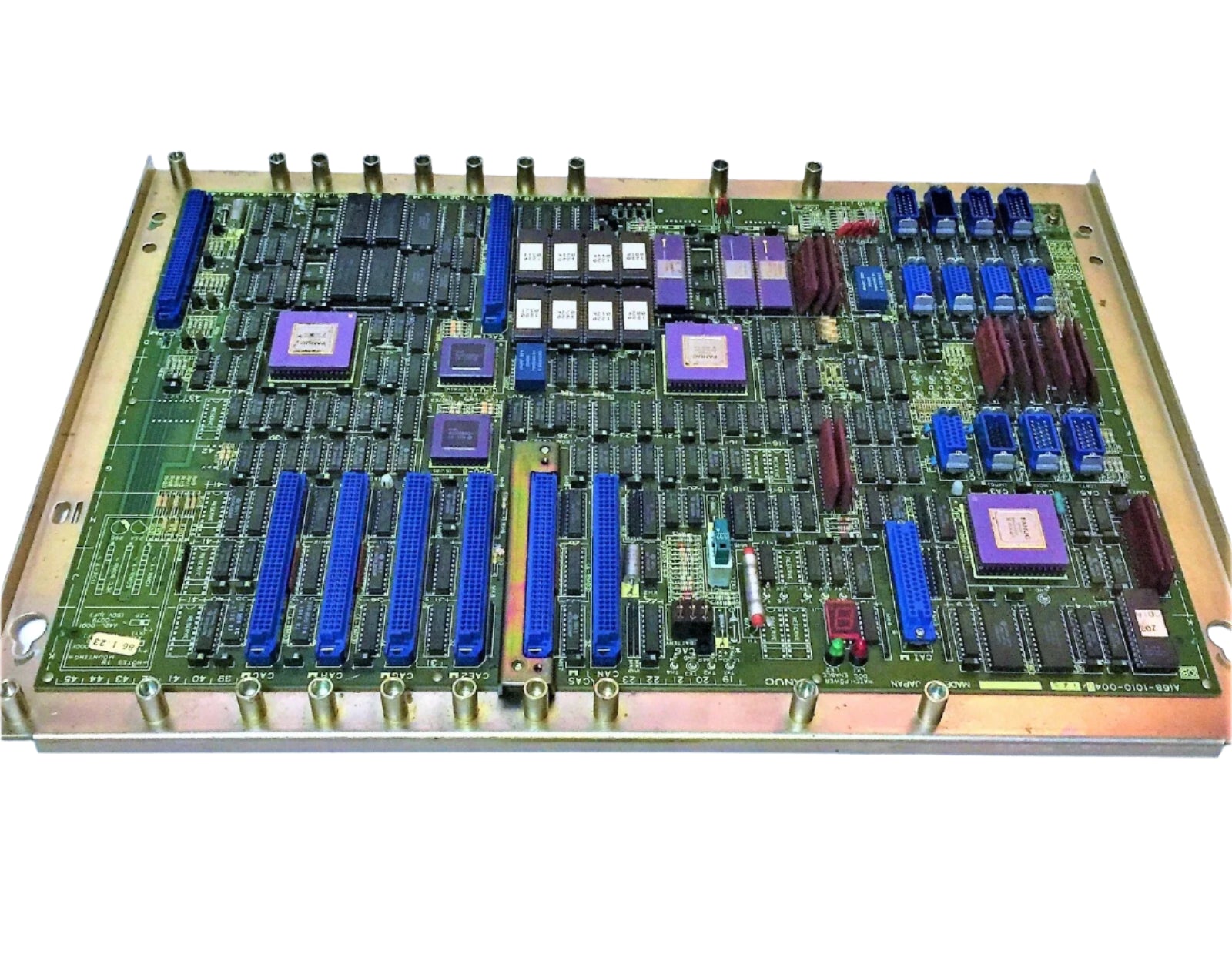

The FANUC A02B-0072-B501 is a master PC‑board / CPU control board used predominantly in Fanuc System 10 Model A controls—specifically for Series 10‑T and 10‑TA setups.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fanuc |
| Category | Controls & Indicators |
| Part Number | A02B-0072-B501 |
| Subcategory | CPU/Control Board |
| Component Type | PC Board |
| Function | Motherboard / Main PCB for CNC systems |
| Model Compatibility | FANUC System 10 / 11 Model A |
| Alternate Description | PCB - Main F10/11 |
| Control Type | Master Board for F10-A Controls |
| Associated Boards | A16B-1010-0040, A16B-1010-0041 |
| Axis Control | 3 or 4 axes |
| Ladder Logic Support | PMC-L |
| Common Applications | CNC Machines (e.g., Mazak, Yamazaki, etc.) |
| Mounting | Backplate mount with PSU and I/O boards |
| Weight | 6.00 lbs |
Information About A02B-0072-B501
The A02B-0072-B501 is a robust and essential master PC board from FANUC, specifically engineered for FANUC System 10 Model A controls. Serving as the central control unit, this main motherboard supports 3–4 axis CNC control, spindle operation, memory management, and ladder logic via PMC-L. It is typically used in conjunction with analog master boards such as A16B-1010-0040 or A16B-1010-0041 to complete the system’s core logic and motion functionality. Though officially discontinued by FANUC, the A02B-0072-B501 remains widely available in the aftermarket as a refurbished component, ensuring continued service for legacy CNC systems in industrial machining environments.
Key Features:
- Master CNC Controller Board: Acts as the central processor for FANUC System 10 Model A (10-T / 10-TA), enabling precise axis, spindle, and logic control.
- PMC-L Ladder Logic Integration: Supports programmable machine control using ladder logic, critical for automation and process control.
- Multi-Axis Support: Handles control of 3 or 4 axes, making it suitable for a broad range of CNC machine configurations.
- Compatible Master Boards: Interfaces with A16B-1010-0040 and A16B-1010-0041 to complete motion control and memory functions.
- Industrial Application Range: Used in high-precision machine tools from manufacturers such as Mazak, Yamazaki, Churchill, and Nakamura, among others.
- Panel Mount Design: Mounts via a backplate and integrates with PSU and I/O boards within standard CNC control cabinets.
- Durable and Reliable: Proven longevity in industrial environments, with robust construction and thermal tolerance.
- Weight and Dimensions: Weighs approximately 2.7 kg (6.0 lbs); physical dimensions fit standard FANUC rack configurations.
The FANUC A02B-0072-B501 master board is a critical element for sustaining legacy CNC control systems. Its performance-proven design, aftermarket availability, and compatibility with key FANUC components make it an indispensable solution for machine tool maintenance, upgrades, and extended operational life in manufacturing environments.
