A05B-2256-C113#EMH | Ge Fanuc Teach Pendant

Description

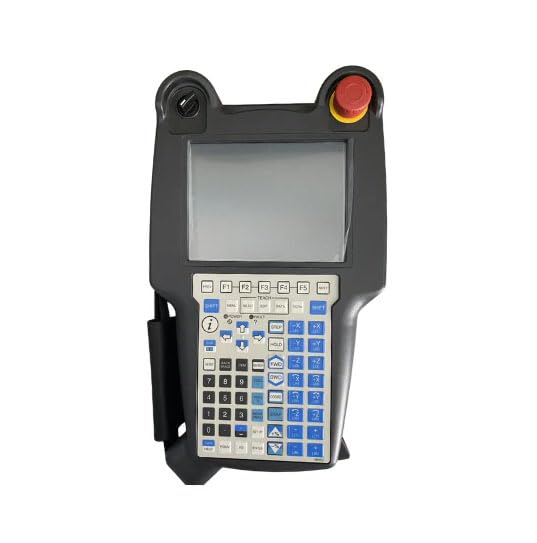

The Fanuc A05B-2256-C113#EMH is a teach pendant designed for use with Fanuc robotic systems. It provides direct control and programming capabilities, allowing operators to manually input commands and adjust robot parameters. The pendant features a user interface for navigating system functions and controlling robotic movements. It is compatible with specified Fanuc robots and is used in industrial automation environments for setup, programming, and operation.

Technical Specifications

Information About A05B-2256-C113#EMH

The Fanuc A05B-2256-C113#EMH is a teach pendant designed to provide advanced control and programming functionality for Fanuc robotic systems, falling under the Servo Products category. This device is engineered for use in industrial automation environments, allowing operators to manually control, program, and adjust robotic systems with high precision. As a teach pendant, it plays a critical role in ensuring smooth operation during setup, troubleshooting, and direct manipulation of robot movements.

Equipped with a 6.4-inch color TFT backlit LCD display, the A05B-2256-C113#EMH offers a clear and intuitive interface for operators. The screen’s resolution of 640H x 480V ensures that critical information such as system parameters, commands, and operational status can be displayed with clarity. This level of visual detail enhances the operator’s ability to program and control robots efficiently, especially in demanding industrial settings where precision is paramount. The backlit nature of the display further improves visibility in low-light environments, allowing for continuous operation without compromising the clarity of the displayed data.

The display supports a color depth of 256 colors, offering a sufficient range of color differentiation to highlight important on-screen elements. This feature helps to improve user interaction by distinguishing between different control functions, error alerts, and real-time data, making it easier for the operator to navigate through complex system menus and settings. The color display, combined with the resolution, ensures that the teach pendant provides an easy-to-use and effective interface for the user.

One of the key attributes of the Fanuc A05B-2256-C113#EMH is its lightweight design, which enhances its portability and ease of use in various industrial environments. Operators can handle the device comfortably over extended periods, reducing fatigue during long programming or troubleshooting sessions. The lightweight construction also makes it easier to move the pendant between workstations or robot cells, providing flexibility in dynamic manufacturing setups where multiple robots may need to be programmed or adjusted.

Additionally, the teach pendant is rated at IP54, ensuring protection against dust and water splashes, which are common in industrial environments. This IP rating makes the A05B-2256-C113#EMH suitable for use in harsh conditions where exposure to dust or incidental contact with liquids may occur. The IP54 protection level ensures that the device maintains reliable performance over time, even when subjected to challenging operating environments. This makes it a durable option for factories, warehouses, and production facilities that require robust equipment for continuous use.

The Fanuc A05B-2256-C113#EMH teach pendant is designed for seamless integration with Fanuc robotic systems, providing direct control over servo motors, actuators, and other system components. It enables operators to program precise movements, control speed, and monitor the performance of the robot during operation. The pendant’s interface allows users to input commands manually, making it an essential tool for tasks such as robot calibration, teaching new movement patterns, and modifying existing programs. By providing the ability to adjust parameters in real time, the teach pendant ensures that the robot operates according to the desired specifications.

In addition to its programming capabilities, the A05B-2256-C113#EMH also serves as a diagnostic tool, allowing operators to identify and correct issues within the robotic system. Error messages and alerts can be displayed on the screen, providing real-time feedback that helps technicians quickly troubleshoot and resolve any operational problems. This functionality reduces downtime by enabling faster diagnostics and adjustments, contributing to higher productivity and overall system efficiency.

The ergonomic design of the A05B-2256-C113#EMH contributes to user comfort, making it easier to hold and operate for extended periods. The layout of the controls is intuitive, ensuring that operators can access key functions quickly without having to navigate through multiple menus. This ease of use is critical in fast-paced industrial environments where efficiency and precision are key to maintaining optimal production rates.

Overall, the Fanuc A05B-2256-C113#EMH teach pendant is a high-performance tool tailored for industrial applications that demand precise control and programming of robotic systems. Its combination of a clear 6.4-inch color TFT backlit LCD display, lightweight construction, and IP54 rating makes it a durable, user-friendly device suited for various operational conditions. The pendant's integration with Fanuc systems ensures smooth operation and maximized productivity in automated environments. With its capacity for both real-time control and diagnostic functions, the A05B-2256-C113#EMH plays a vital role in enhancing the functionality and efficiency of Fanuc robotic systems, making it an essential tool for operators in industrial automation settings.

Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
