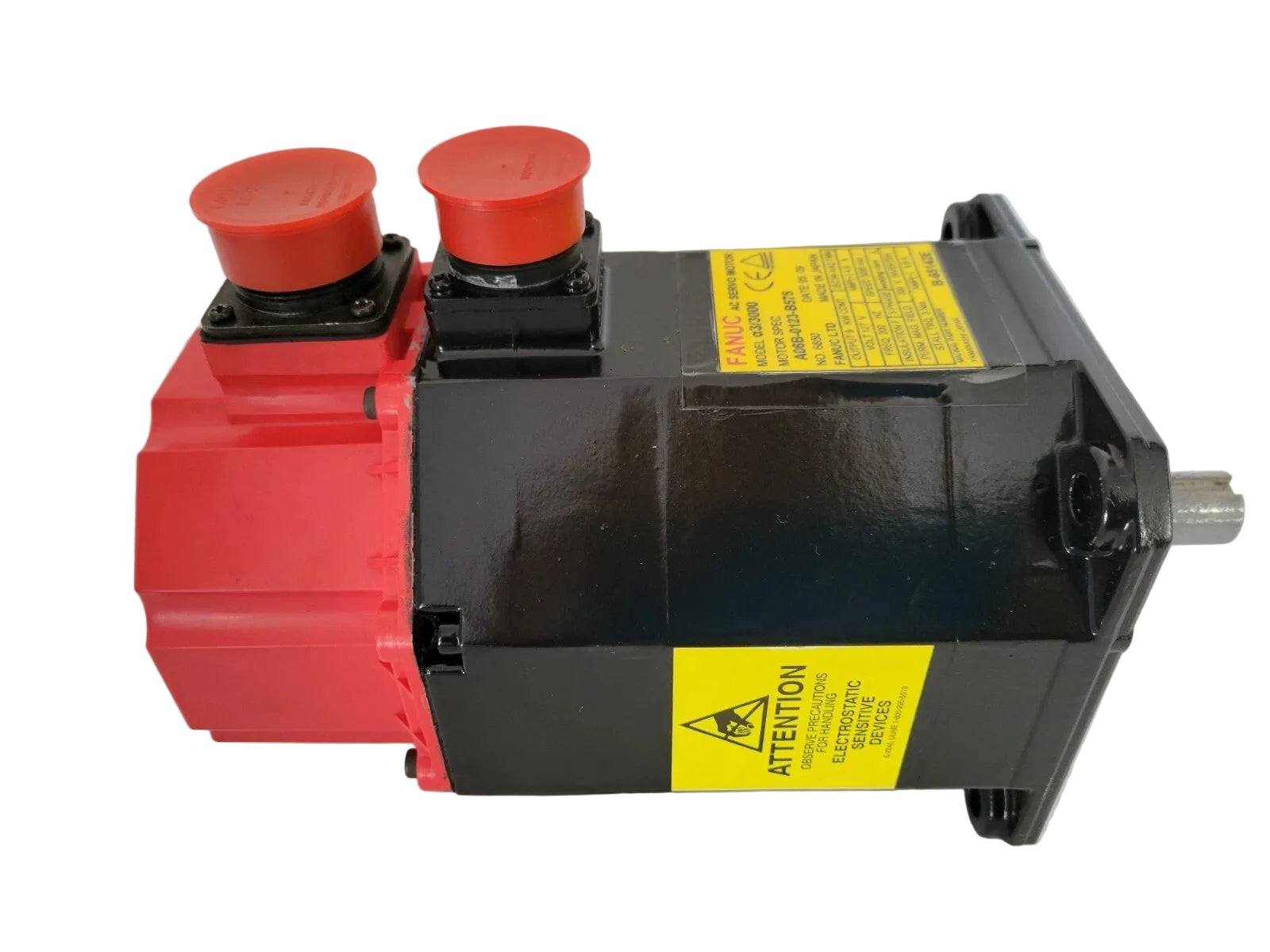

A06B-0123-B575 | Fanuc A3/3000 AC Servo Motor 0.9kW 3000RPM A64 Encoder
- Regular price
- $1,222.00
- Sale price
- $1,222.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: A06B-0123-B575
Description
The Fanuc A06B-0123-B575 is an AC servo motor designed for precision motion control in CNC machinery and automated systems. This A3/3000 model features a straight shaft configuration and A64 encoder for accurate positioning and speed regulation. With a rated power of 0.9 kW and 3000 RPM operating speed, it delivers consistent torque and reliable performance in industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fanuc |
| Category | Motors & Drives |
| Part Number | A06B-0123-B575 |
| Subcategory | AC Servo Motors |
| Motor Type | AC Servo Motor |
| Series | A3/3000 |
| Encoder Type | A64 Encoder |
| Shaft Type | Straight Shaft |
| Rated Power | 0.9 kW |
| Horsepower | 1.2 HP |
| Rated Speed | 3000 RPM |
| Stall Torque | 3 Nm |
| Rated Current | 4.6 A (RMS) |
| Voltage | 127 VAC |
| Phase | Three Phase |
| Application | CNC Machinery |
| Weight | 8 kg |
Information About A06B-0123-B575
The A06B-0123-B575 is a Fanuc AC servo motor from the A3/3000 series, engineered for integration with compatible Fanuc CNC controllers and servo amplifiers. It operates at 127 VAC, three-phase input, and is designed to provide stable torque output with a stall torque rating of 3 Nm. Equipped with an A64 encoder, the motor supports precise closed-loop feedback for accurate motion control and repeatability. Its straight shaft configuration allows direct mechanical coupling to ball screws, gear systems, and other drive components used in machining and automated production equipment.
Key Features:
- A3/3000 Series Motor: Designed for CNC axis drive and precision positioning applications.
- Rated Power 0.9 kW (1.2 HP): Supports reliable continuous-duty industrial operation.
- 3000 RPM Speed Rating: Enables high-speed rotational performance.
- Stall Torque 3 Nm: Provides stable holding and load-handling capability.
- A64 Encoder Feedback: Ensures accurate speed and position control in closed-loop systems.
- Straight Shaft Design: Allows secure and direct mechanical coupling.
- 127 VAC Three-Phase Operation: Compatible with designated Fanuc servo drive systems.
- 4.6 A (RMS) Current Rating: Supports controlled and efficient power consumption.
The A06B-0123-B575 delivers the reliability and precision required for CNC machining and high-accuracy motion control applications.
Description
The Fanuc A06B-0123-B575 is an AC servo motor designed for precision motion control in CNC machinery and automated systems. This A3/3000 model features a straight shaft configuration and A64 encoder for accurate positioning and speed regulation. With a rated power of 0.9 kW and 3000 RPM operating speed, it delivers consistent torque and reliable performance in industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fanuc |
| Category | Motors & Drives |
| Part Number | A06B-0123-B575 |
| Subcategory | AC Servo Motors |
| Motor Type | AC Servo Motor |
| Series | A3/3000 |
| Encoder Type | A64 Encoder |
| Shaft Type | Straight Shaft |
| Rated Power | 0.9 kW |
| Horsepower | 1.2 HP |
| Rated Speed | 3000 RPM |
| Stall Torque | 3 Nm |
| Rated Current | 4.6 A (RMS) |
| Voltage | 127 VAC |
| Phase | Three Phase |
| Application | CNC Machinery |
| Weight | 8 kg |
Information About A06B-0123-B575
The A06B-0123-B575 is a Fanuc AC servo motor from the A3/3000 series, engineered for integration with compatible Fanuc CNC controllers and servo amplifiers. It operates at 127 VAC, three-phase input, and is designed to provide stable torque output with a stall torque rating of 3 Nm. Equipped with an A64 encoder, the motor supports precise closed-loop feedback for accurate motion control and repeatability. Its straight shaft configuration allows direct mechanical coupling to ball screws, gear systems, and other drive components used in machining and automated production equipment.
Key Features:
- A3/3000 Series Motor: Designed for CNC axis drive and precision positioning applications.
- Rated Power 0.9 kW (1.2 HP): Supports reliable continuous-duty industrial operation.
- 3000 RPM Speed Rating: Enables high-speed rotational performance.
- Stall Torque 3 Nm: Provides stable holding and load-handling capability.
- A64 Encoder Feedback: Ensures accurate speed and position control in closed-loop systems.
- Straight Shaft Design: Allows secure and direct mechanical coupling.
- 127 VAC Three-Phase Operation: Compatible with designated Fanuc servo drive systems.
- 4.6 A (RMS) Current Rating: Supports controlled and efficient power consumption.
The A06B-0123-B575 delivers the reliability and precision required for CNC machining and high-accuracy motion control applications.
