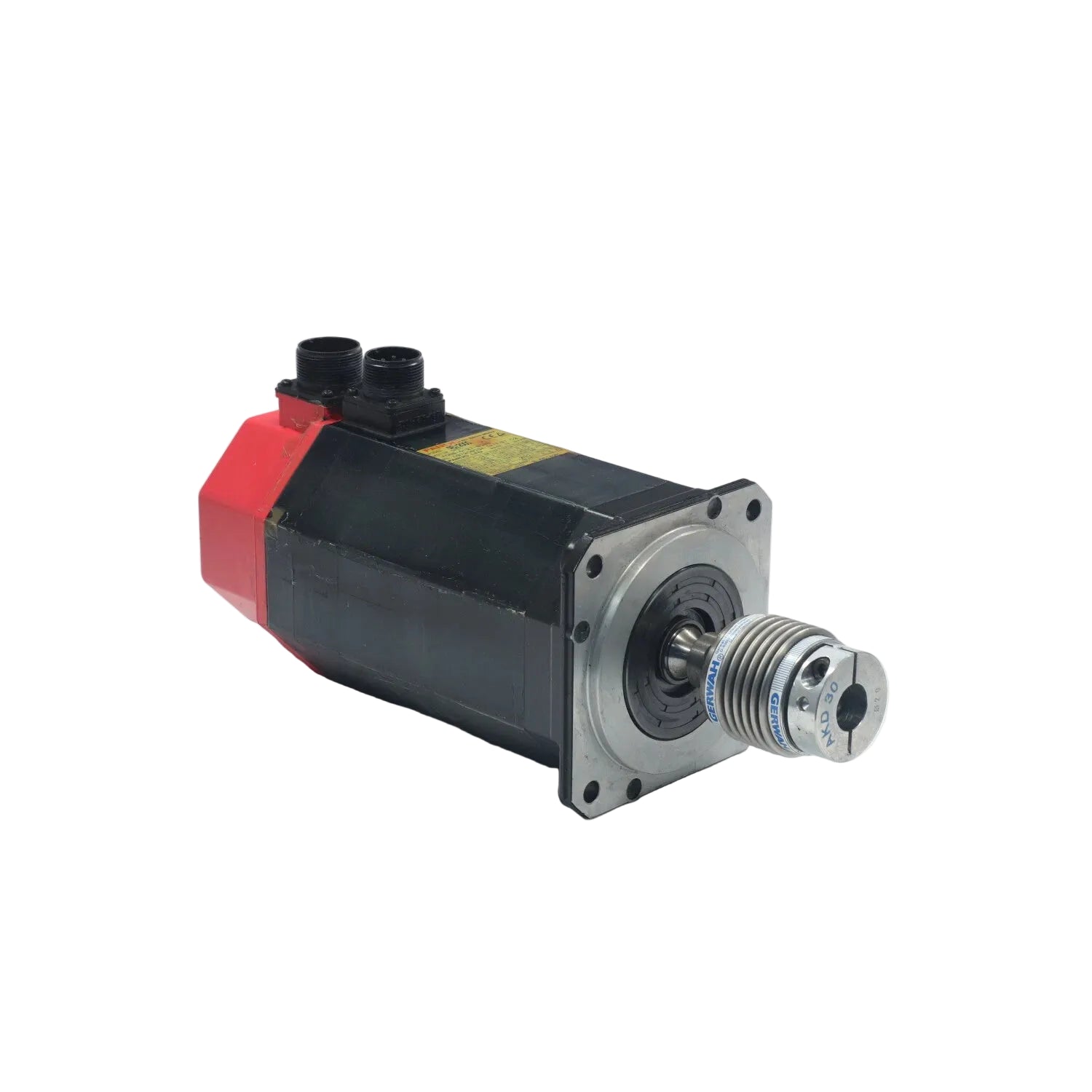

A06B-0127-B088 | FANUC Alpha 6/2000 0.6kW AC Servo Motor
- Regular price
- $2,899.00
- Sale price
- $2,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: A06B-0127-B088
Description
The FANUC A06B-0127-B088 is an Alpha 6/2000 series AC servo motor designed for CNC and industrial motion control systems. It delivers a continuous power output of 0.6 kW with peak torque up to 6 Nm and operates at speeds up to 2000 RPM. Built for 3-phase 140 VAC input, it supports precise positioning and stable torque performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | FANUC |
| Category | Servo Products |
| Part Number | A06B-0127-B088 |
| Subcategory | Servo Motor |
| Motor Series | Alpha 6/2000 |
| Frame Size | A6 |
| Continuous Power Rating | 0.6 kW |
| Peak Torque | 6 Nm |
| Maximum Speed | 2000 RPM |
| Rated Supply Voltage | 140 VAC |
| Operational Frequency | 133 Hz |
| Phase Configuration | 3-Phase AC |
| Continuous Current | 4.6 A RMS |
| Shaft Design | Tapered with Keyway |
| Enclosure Rating | IP67 |
| Cooling Method | Natural Convection |
| Manufacturer Status | Discontinued |
| Weight | 28.00 lbs |
Information About A06B-0127-B088
The A06B-0127-B088 belongs to the FANUC A06B product line and is classified within the Alpha 6/2000 motor series. It operates on 3-phase sinusoidal input at 140 VAC with an operational frequency of 133 Hz and a continuous current draw of 4.6 A RMS. The motor features a tapered shaft with keyway for secure mechanical coupling and is housed in an IP67-rated enclosure for protection against dust and water ingress. Designed with A6 frame dimensions and natural convection cooling, it integrates into CNC and automated machinery requiring controlled torque and speed.
Key Features:
-
0.6 kW Continuous Power: Supports precision motion applications.
-
6 Nm Peak Torque: Provides stable torque output under load.
-
2000 RPM Maximum Speed: Adjustable through compatible drive parameters.
-
140 VAC 3-Phase Input: Designed for sinusoidal industrial supply.
-
4.6 A RMS Current: Defined continuous operating current.
-
Tapered Shaft with Keyway: Enables secure mechanical integration.
-
IP67 Enclosure Rating: Protects against dust and water ingress.
-
Alpha 6/2000 Series: Compatible with FANUC Alpha drive systems.
The A06B-0127-B088 delivers the reliability and precision required for CNC servo motor and industrial motion control applications.
