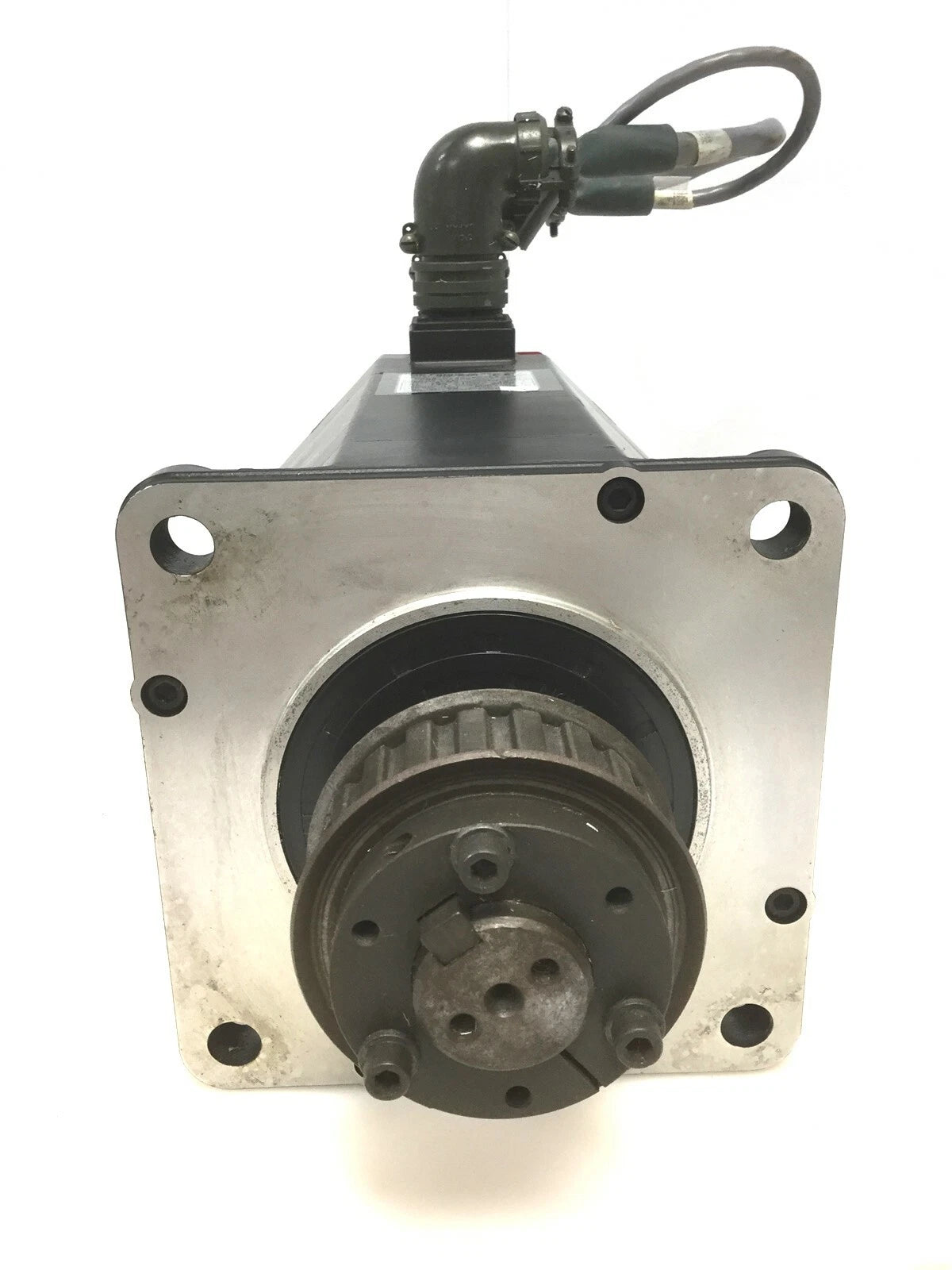

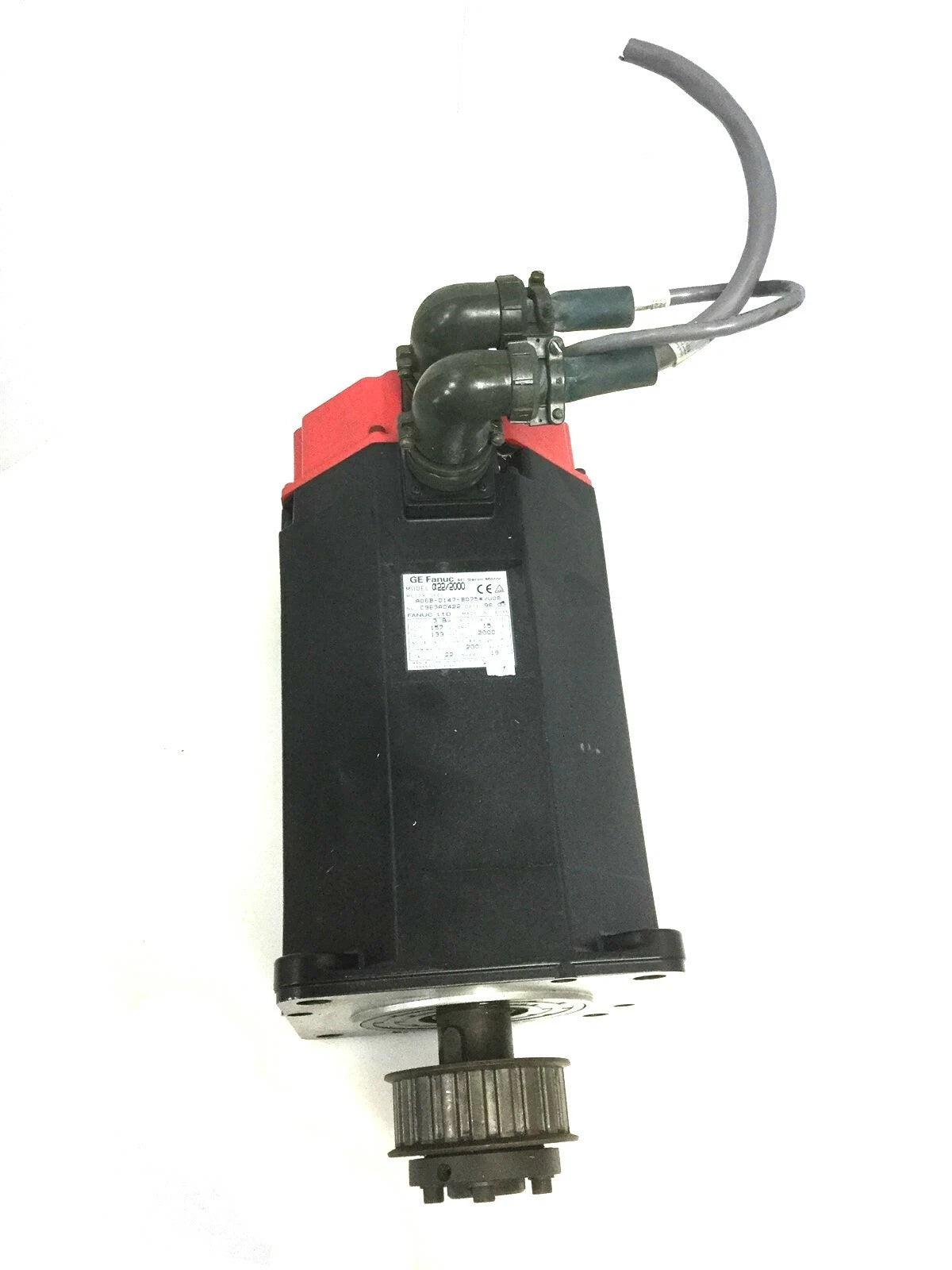

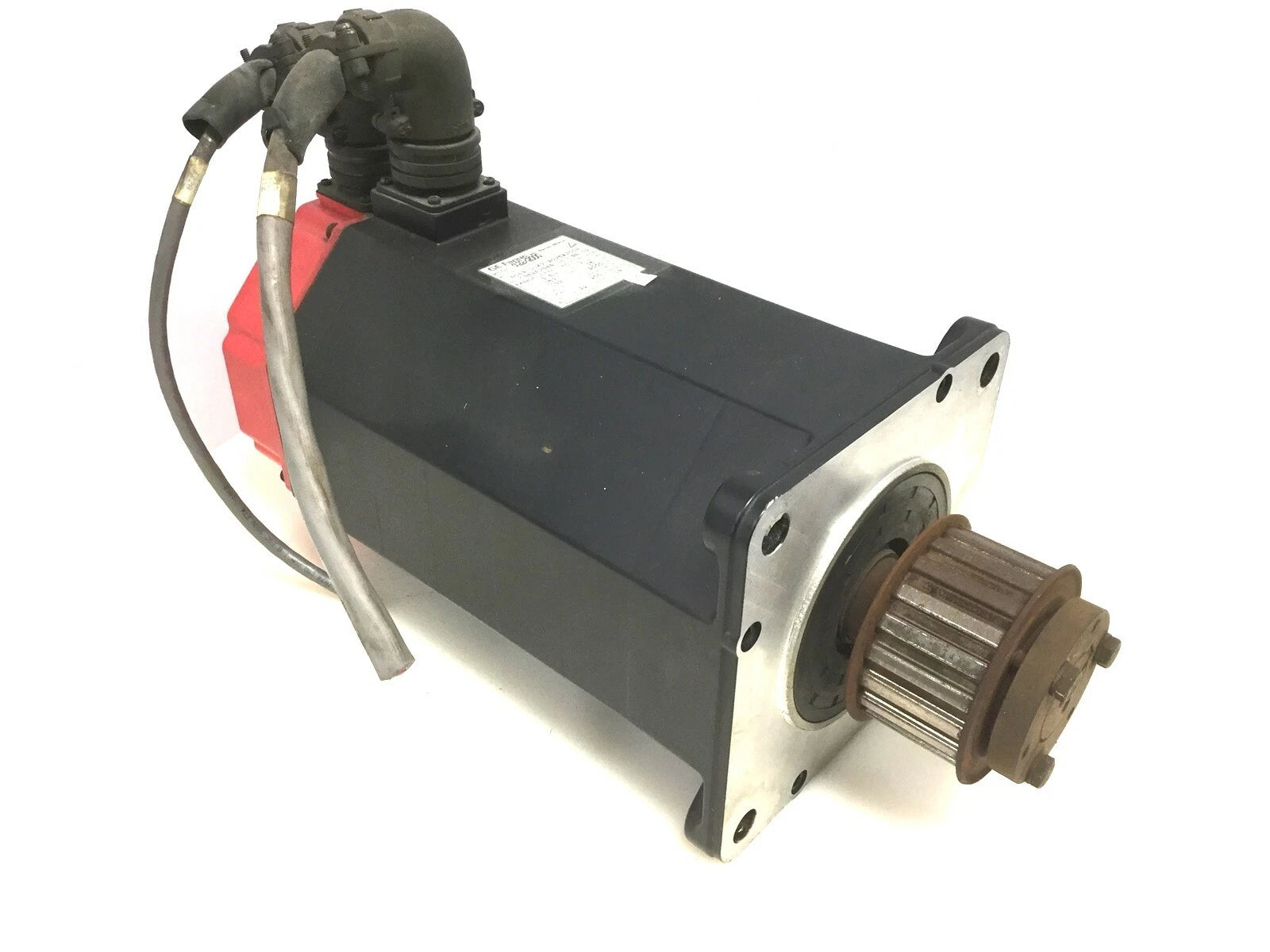

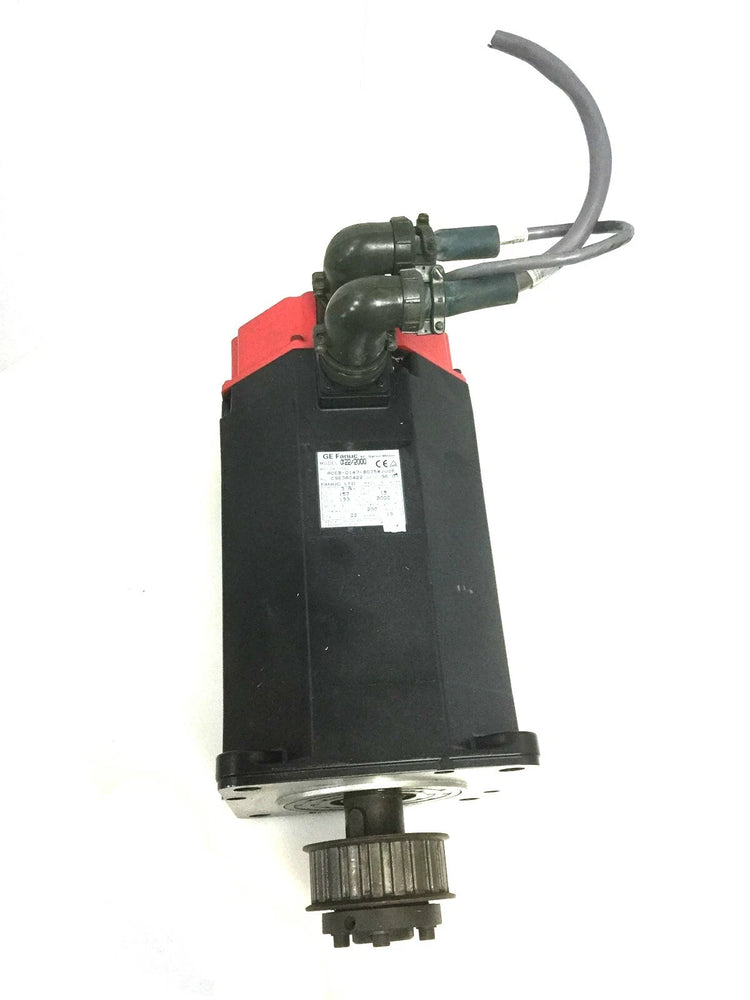

A06B-0147-B075 | Fanuc A22/2000 AC Servo Motor with A64 Encoder
- Regular price
- $1,567.00
- Sale price
- $1,567.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: A06B-0147-B075
Description
The Fanuc A06B-0147-B075 is an AC servo motor designed for high-torque CNC axis control and precision motion applications. This A22/2000 model features an A64 pulse encoder and straight shaft configuration for accurate closed-loop positioning. The Fanuc A06B-0147-B075 delivers stable performance and consistent torque output in demanding industrial machining environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fanuc |
| Category | Servo Products |
| Part Number | A06B-0147-B075 |
| Subcategory | Servo Motor |
| Motor Type | AC servo motor |
| Model | A22/2000 |
| Rated Speed | 2000 RPM |
| Rated Voltage | 157 VAC |
| Phase | 3 Phase |
| Current Rating | 15 A |
| Encoder Type | A64 pulse encoder |
| Shaft Type | Straight shaft |
| Application | CNC axis drive motor |
| Weight | 68.00 lbs |
Information About A06B-0147-B075
The A06B-0147-B075 is a Fanuc AC servo motor from the A22/2000 series, engineered for integration with compatible Fanuc servo amplifiers in CNC systems. Rated at 157 VAC, 3-phase operation with a 15 amp current specification, it supports controlled motion at a nominal speed of 2000 RPM. The built-in A64 pulse encoder provides precise feedback for accurate speed and position regulation. Designed for heavy-duty industrial use, this motor is commonly applied in machining centers and automated production equipment requiring reliable axis drive capability.
Key Features:
- A22/2000 AC Servo Motor: Designed for high-torque CNC motion control applications.
- A64 Pulse Encoder: Provides precise incremental position feedback.
- 2000 RPM Rated Speed: Optimized for stable and controlled machining operations.
- 157 VAC, 3-Phase Operation: Compatible with Fanuc servo drive systems.
- 15 Amp Current Rating: Supports demanding industrial loads.
- Straight Shaft Configuration: Enables direct coupling to mechanical drive systems.
- Closed-Loop CNC Integration: Ensures accurate axis positioning and speed control.
The A06B-0147-B075 delivers the reliability and precision required for CNC servo motor and axis drive applications.
