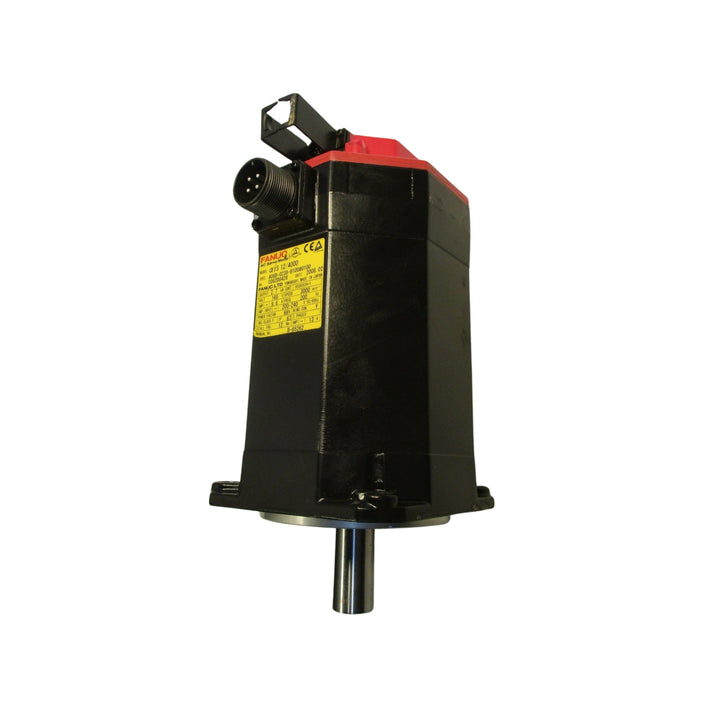

A06B-0238-B100 | FANUC AC Servo Motor AIS12/4000, 2.7kW, 3000RPM, A1000 Encoder
- Regular price
- $1,704.00
- Sale price
- $1,704.00
- Regular price
-
$852.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: A06B-0238-B100
Description
The FANUC A06B-0238-B100 is an AC servo motor model AIS12/4000 equipped with an A1000 encoder and straight shaft. With a rated output of 2.7 kW, 3000 RPM speed, and 168V operation, it is designed for precision CNC and automation applications requiring high reliability and performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | FANUC |
| Category | Servo Products |
| Part Number | A06B-0238-B100 |
| Subcategory | Servo Motor |
| Motor Model | AIS12/4000 |
| Motor Type | AC Servo |
| Output Power | 2.7 kW |
| Rated Speed | 3000 RPM |
| Rated Voltage | 168 V |
| Rated Frequency | 200 Hz |
| Phase | 3-Phase |
| Rated Current | 9.6 A |
| Stall Current | 13 A |
| Stall Torque | 12 Nm |
| Encoder | A1000 STR |
| Shaft Type | Straight shaft |
| Enclosure Rating | IP65 |
| Insulation Class | F (155°C / 311°F) |
| Power Factor | 98% |
| Cooling Method | Natural convection (fanless) |
| Standards | IEC60034-1 |
| Manual Reference | B-65262 |
| Dimensions | 16" x 9" x 9" (approx.) |
| Weight | 28 lbs (approx.) |
Information About A06B-0238-B100
The A06B-0238-B100 is part of FANUC’s αiS servo motor series, known for robust construction and precise motion control. This three-phase motor operates at 200 Hz frequency with a stall torque of 12 Nm and stall current of 13 A, making it well-suited for demanding machine tool environments. Built with IP65 enclosure protection and insulation class F, it is engineered for durability under continuous duty cycles. The integrated A1000 encoder ensures accurate positioning and feedback, while compliance with IEC60034-1 standards guarantees compatibility with global industrial requirements.
Key Features:
- Rated Output: 2.7 kW continuous power for industrial automation.
- High-Speed Performance: Supports speeds up to 3000 RPM at 200 Hz frequency.
- Encoder: A1000 integrated encoder provides precise position feedback.
- Straight Shaft Design: Optimized for standard CNC machine integration.
- Protection: IP65-rated enclosure safeguards against dust and coolant exposure.
- Durability: Class F insulation ensures thermal stability up to 155°C.
- Torque Capacity: 12 Nm stall torque with 13 A stall current.
- Standards Compliance: Built to IEC60034-1 specifications for reliability.
The A06B-0238-B100 delivers the reliability and precision required for CNC machining and advanced automation systems.
