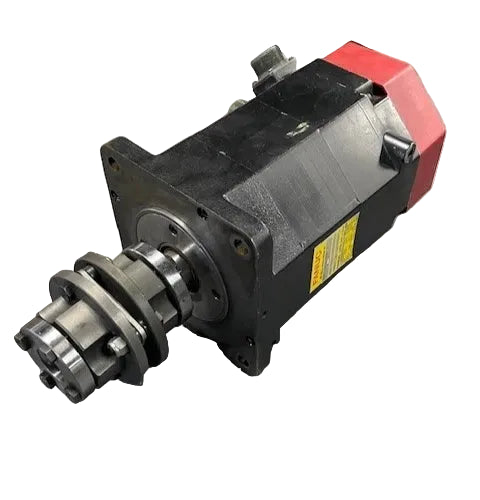

A06B-0501-B002 | FANUC Model 10 AC Servo Motor with 2500P Encoder 144 V 11A Three-Phase CNC Motion Drive
- Regular price
- $4,837.00
- Sale price
- $4,837.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: A06B-0501-B002
Description
The FANUC A06B-0501-B002 is an AC servo motor designed for high-precision motion control in CNC machining and industrial automation systems. This Model 10 servo motor provides reliable torque output, high-speed performance up to 2000 RPM, and integrated encoder feedback for accurate positioning. The A06B-0501-B002 is built for three-phase 144 V operation in demanding machine tool environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | FANUC |
| Category | Servo Motors |
| Part Number | A06B-0501-B002 |
| Subcategory | AC Servo Motor |
| Product Type | CNC Servo Motor |
| Motor Model | Model 10 |
| Voltage Rating | 144 V |
| Current Rating | 11 A |
| Phase Configuration | 3 Phase |
| Number of Poles | 8 Pole |
| Rated Speed | 2000 RPM |
| Torque Output | 12 Nm |
| Encoder Resolution | 2500P Encoder |
| Shaft Type | Straight Shaft |
| Operating Temperature Range | 0°C to 60°C |
| Humidity Rating | 80% RH (Non-Condensing) |
| Application Use | CNC Machines and Industrial Automation |
| Weight | 43.70 lbs |
Information About A06B-0501-B002
The A06B-0501-B002 is a FANUC Alpha AC servo motor engineered as part of the FANUC A06B motor line for CNC-controlled motion applications. It features a straight shaft design with an integrated 2500P encoder to support closed-loop positioning and responsive axis control. The motor operates at 144 V with an 11 A current rating across three phases, providing stable power delivery for industrial servo drives. Designed for reliable performance in production environments, it supports operation within standard temperature and humidity limits for machine tool automation systems.
Key Features:
-
FANUC AC Servo Motor Model 10: Designed for CNC axis motion control and servo drive integration.
-
High-Speed Performance Capability: Rated for operation up to 2000 RPM for dynamic machining applications.
-
Integrated Encoder Feedback: Includes 2500P encoder resolution for accurate positioning and control.
-
Three-Phase 144 V Operation: Supports standard industrial servo power configurations.
-
11 Amp Current Rating: Provides stable electrical performance for high-demand motion systems.
-
Straight Shaft Output Design: Built for direct coupling in CNC machine tool assemblies.
-
Eight-Pole Motor Construction: Optimized for smooth torque delivery and efficient servo response.
-
Industrial Environmental Rating: Suitable for controlled automation environments up to 60°C ambient temperature.
The A06B-0501-B002 delivers the reliability and precision required for CNC servo axis motion, machining automation, and industrial positioning control.
