A06B-0501-B755 | Fanuc AC Servo Motor 144V 2000RPM w/Brake
- Regular price
- $2,697.00
- Sale price
- $2,697.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: A06B-0501-B755
Description

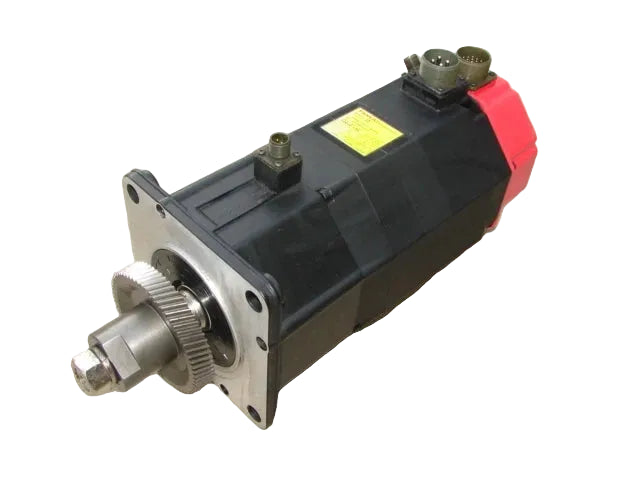

The Fanuc A06B-0501-B755 is a 3-phase AC servo motor engineered for precision motion control in CNC and industrial automation systems. Rated at 144 VAC and 2000 RPM, it delivers stable torque output with integrated Serial A encoder feedback. The motor includes an electromagnetic brake and tapered shaft for controlled stopping and secure mechanical coupling.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fanuc |
| Category | Servo Products |
| Part Number | A06B-0501-B755 |
| Subcategory | Servo Motor |
| Motor Type | AC Servo Motor |
| Phase | 3-Phase |
| Rated Voltage | 144 VAC |
| Rated Speed | 2000 RPM |
| Stall Torque | 12 Nm |
| Stall Current | 11 A |
| Number of Poles | 8 |
| Insulation Class | Class F (155°C) |
| Encoder Type | Serial A Pulse |
| Shaft Type | Tapered Shaft |
| Brake | Integrated Electromagnetic Brake |
| Ambient Temperature | Up to 40°C |
| Dimensions | 21" x 9" x 11" |
| Weight | 59.00 lbs |
Information About A06B-0501-B755
The A06B-0501-B755 is part of Fanuc’s A06B servo motor series and corresponds to a Model 10 configuration with an 8-pole design. It operates on a 3-phase AC supply and is built with Class F insulation for thermal durability up to 155°C. The motor features a Serial A pulse encoder to provide accurate speed and position feedback to compatible Fanuc servo amplifiers. Designed for CNC machinery and automated equipment, it supports consistent torque performance and controlled braking in demanding industrial environments.
Key Features:
-
3-Phase AC Operation: Designed for industrial servo drive systems.
-
2000 RPM Rated Speed: Supports precision motion applications.
-
12 Nm Stall Torque: Provides stable torque under load conditions.
-
11 A Stall Current: Rated for controlled high-load performance.
-
Serial A Encoder: Integrated pulse coder for position feedback.
-
Integrated Brake: Enables controlled stopping and holding capability.
-
8-Pole Motor Design: Enhances torque smoothness and efficiency.
-
Class F Insulation: Rated for temperatures up to 155°C.
The A06B-0501-B755 delivers the reliability and precision required for CNC servo motor control applications.
