A06B-6090-H003 | FANUC Alpha Series Servo Drive SVUC 1-12, 12A

Description

The FANUC A06B-6090-H003 is an Alpha Series servo amplifier unit designed to deliver precise motion control in CNC and industrial automation systems. This model SVUC 1-12 servo drive supports single-axis Alpha 3 and Alpha 6 motors, ensuring smooth operation and accurate torque control.

Technical Specifications

Information About A06B-6090-H003

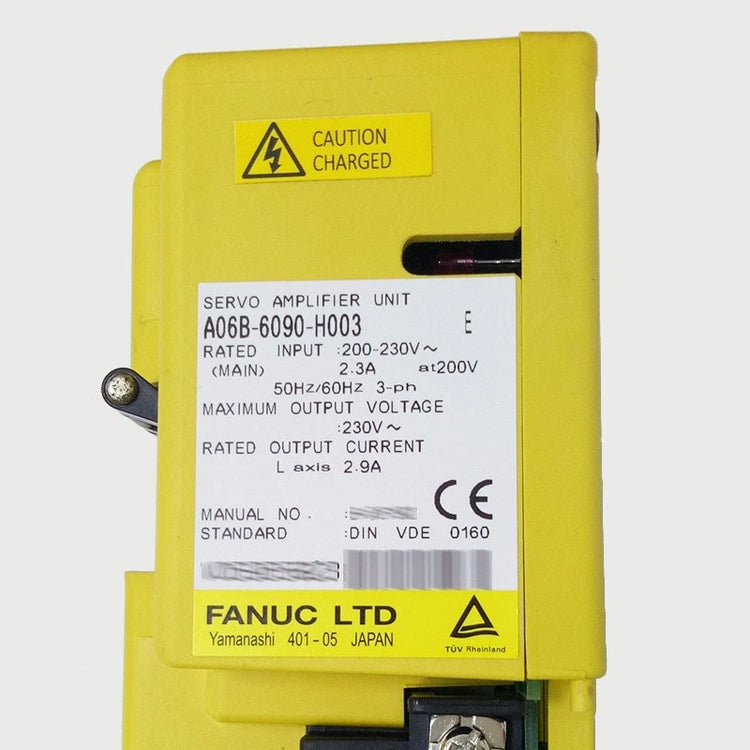

The A06B-6090-H003 is part of the FANUC Alpha Series servo amplifier family, specifically the A06B-6090 line. It is configured as a Model SVUC 1-12, suitable for powering CNC machinery and automated equipment requiring high reliability and efficiency. The unit is rated for 200–230V AC input at 2.3A and provides a maximum output voltage of 230V with a rated output current of 2.9A on the L-Axis. Although discontinued by the manufacturer, this servo drive remains widely used in industry due to its compatibility with FANUC Alpha 3 and Alpha 6 motors. Exchange options and repair services are commonly available, making it a viable solution for maintaining legacy systems.

Key Features:

• Alpha Series Integration: Designed for use with FANUC Alpha motors, especially Alpha 3 and Alpha 6.
• Rated Input: Operates on 200–230V AC at 2.3A for stable power delivery.
• Output Capacity: Provides up to 230V output with 2.9A rated current on the L-Axis.
• PWM Interface: Uses Pulse Width Modulation for precise motion control.
• Single-Axis Support: Optimized for driving individual servo axes in CNC machinery.
• Exchange Option: Requires return of the same model (A06B-6090-H003) for replacement.
• Discontinued Model: No longer manufactured, but surplus and repair support are available.
• Compact Build: Lightweight at 5.25 lbs for ease of integration.

The A06B-6090-H003 delivers the reliability and accuracy required for CNC machines and automation systems where stable servo performance is essential.
