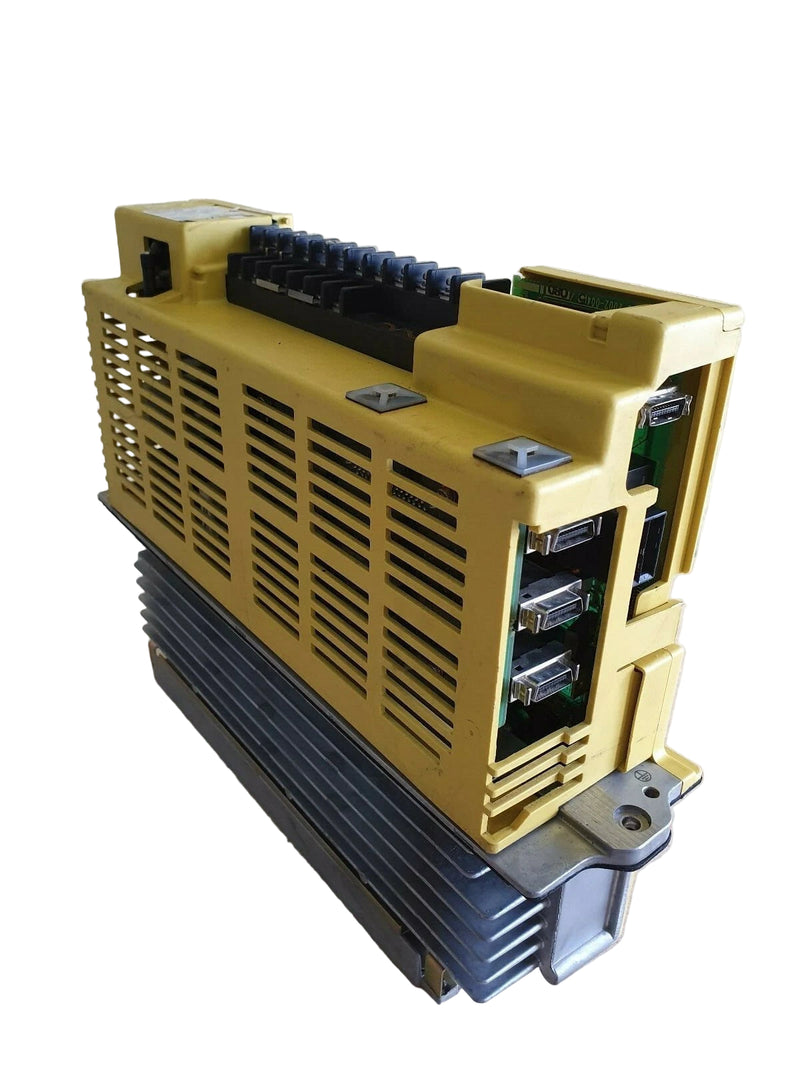

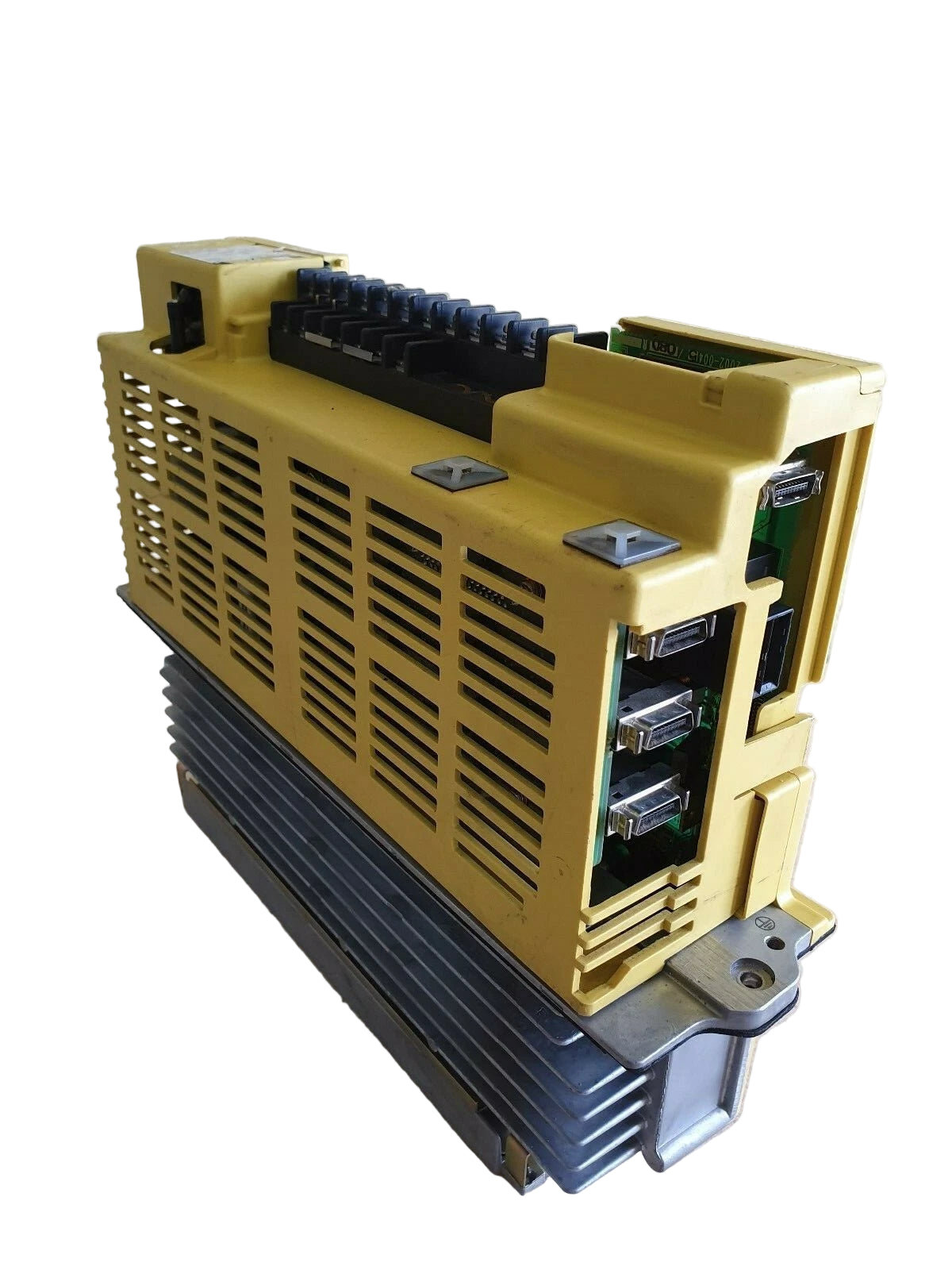

A06B-6090-H004 | FANUC Alpha SVUC 1-40 Servo Amplifier Module, 200–230V, 16A
- Regular price
- $2,474.00
- Sale price
- $2,474.00
- Regular price
-
$852.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: A06B-6090-H004
Description
The FANUC A06B-6090-H004 is a 2nd-generation Alpha SVUC servo amplifier module designed for CNC motion control. Operating at 200–230V AC with a rated current of 12A and L-axis capacity of 16A, it provides efficient and precise drive capability for industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | FANUC |
| Category | Servo Products |
| Part Number | A06B-6090-H004 |
| Subcategory | Servo Drive/Servo Control |
| Series | Alpha SVUC 1-40 |
| Type | Servo Amplifier Module |
| Input Voltage Range | 200–230 V AC |
| Rated Current | 12 A @ 200 V |
| Rated Output Current | L-axis: 16 A |
| Maximum Output Voltage | 230 V AC |
| Phase | 3-Phase |
| Frequency | 50/60 Hz |
| Interface | Type A and Type B feedback, PWM control |
| Supported Systems | FANUC CNC controllers and Alpha servo units |
| Cooling Method | Forced-air cooling (fan-assisted) |
| Application | CNC machining, robotics, industrial automation |
| Documentation | Manual B-65322 |
| Status | Discontinued by manufacturer |
| Weight | 10.69 lbs (approx.) |
Information About A06B-6090-H004
The A06B-6090-H004 belongs to the FANUC Alpha servo amplifier family and is part of the SVUC 1-40 series. It is compatible with both FANUC Type A and Type B feedback interfaces, ensuring flexibility across different CNC configurations. This unit supports 3-phase 200–230V input and delivers a regulated 230V output, optimized for reliable axis control. Designed with PWM interface technology, it ensures smooth and accurate servo performance. The module integrates seamlessly with FANUC CNC controllers and servo systems, making it an essential replacement or upgrade component for a wide range of manufacturing applications.
Key Features:
- Alpha SVUC Module: 2nd-generation amplifier in the Alpha servo drive family.
- Dual Interface Support: Operates with FANUC Type A and Type B feedback systems.
- Rated Input: 200–230V AC, 3-phase, with 50/60 Hz frequency compatibility.
- Output Current: Rated 12A at 200V with L-axis maximum capacity of 16A.
- PWM Interface: Provides smooth and efficient control of CNC servo axes.
- CNC Integration: Fully compatible with FANUC CNC controllers for precision automation.
- Reliable Performance: Designed for high-duty industrial use with long operational life.
- Discontinued Legacy Part: Still widely used in maintaining legacy CNC systems.
The A06B-6090-H004 delivers the reliability and accuracy required for CNC machining centers, robotics, and automation lines.
