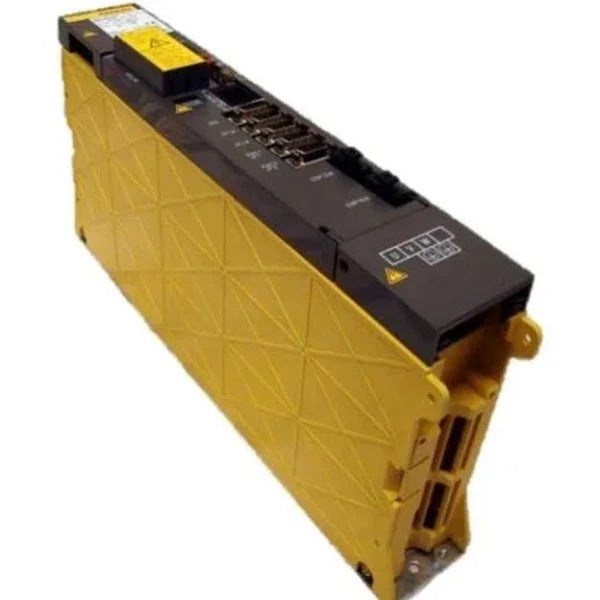

A06B-6096-H203 | GE Fanuc Dual-Axis CNC Servo Amplifier Module For Alpha Servo Systems
- Regular price
- $2,544.00
- Sale price
- $2,544.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: A06B-6096-H203
Description
The GE Fanuc A06B-6096-H203 is a dual-axis servo amplifier module designed for precise motor control in CNC systems. It supports Alpha servo motors and ensures stable, accurate motion control during demanding machining operations. This module integrates directly with GE Fanuc control platforms to maintain consistent system performance and operational reliability.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE Fanuc |
| Category | Servo Drives |
| Part Number | A06B-6096-H203 |
| Subcategory | Servo Amplifier Module |
| Product Series | A06B-6096 |
| Model | SVM2-20/20 |
| Type | Servo Amplifier Module |
| Application | Dual Axis Alpha Servo Drive |
| Compatible CNC Controls | GE Fanuc 15i, 16i, 18i, 20i, 21i, A/B/C systems |
| Control Bus | FANUC Serial Servo Bus (FSSB) |
| FSSB Channels | Dual channels (L and M) |
| Rated Input Voltage | 283–325 V |
| Power Rating | 2.5 kW |
| Maximum Output Voltage | 230 V |
| Rated Output Current | 5.9 A per axis |
Information About A06B-6096-H203
The A06B-6096-H203 is a servo amplifier module from the GE Fanuc A06B-6096 series, based on the SVM2-20/20 design for dual-axis motion control. It is engineered for installation within CNC drive cabinets, featuring a robust construction that supports continuous industrial operation. The module communicates with compatible GE Fanuc CNC systems through the FANUC Serial Servo Bus using dedicated L and M channels. It is commonly applied in machining centers and automated production equipment where synchronized axis control and precise positioning are required.
Key Features
- Dual-axis servo drive design: Enables independent and coordinated control of two Alpha servo motor axes.
- FANUC FSSB communication interface: Supports high-speed, stable data exchange via dual serial channels.
- Broad CNC compatibility: Designed to integrate with multiple generations of GE Fanuc CNC controls.
- Wide input voltage tolerance: Operates reliably within a 283–325 V supply range.
- Rated power output: Provides 2.5 kW to support demanding motion control applications.
- Controlled output voltage: Delivers up to 230 V for accurate and consistent motor operation.
- Balanced current delivery: Supplies 5.9 A per axis to maintain uniform drive performance.
The A06B-6096-H203 delivers the reliability and precision required for dual-axis CNC motion control in industrial machining environments.
