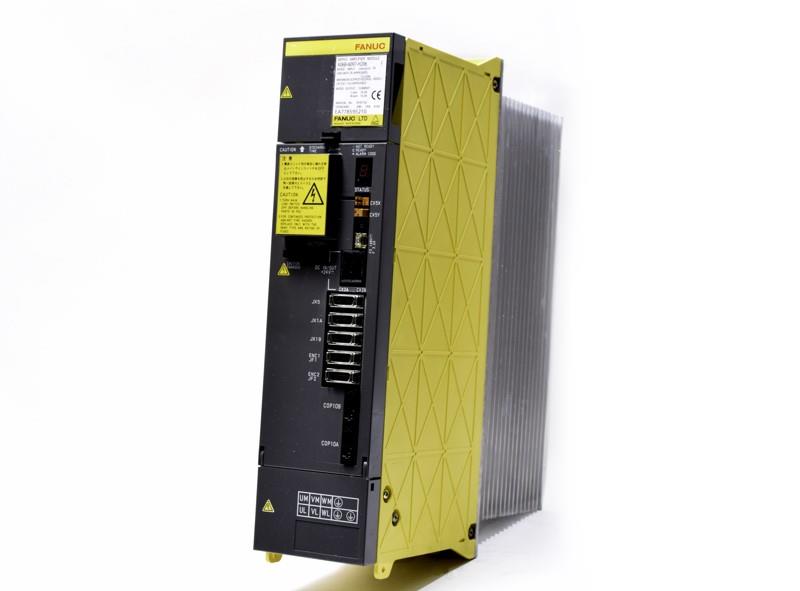

A06B-6097-H206 | Fanuc Alpha Dual-Axis Servo Amplifier SVM2-60/60HV FSSB
- Regular price
- $8,799.00
- Sale price
- $8,799.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: A06B-6097-H206
Description
The Fanuc A06B-6097-H206 is a dual-axis Alpha servo amplifier module designed for precision motion control in CNC machine tools. With fiber optic FSSB interface and high-voltage operation, it provides reliable performance for demanding industrial automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fanuc |
| Category | Servo Products |
| Part Number | A06B-6097-H206 |
| Subcategory | Servo Drive/Servo Control |
| Series | Alpha |
| Module Type | SVM2-60/60HV Dual-Axis Servo Amplifier |
| Input Voltage | 400 VAC (566–651 V range documented) |
| Max Output Voltage | 460 VAC |
| Output Current | 16.3 A per axis (dual-channel operation) |
| Rated Power | 12 kW |
| Interface | FSSB fiber optic |
| Frequency | Up to 8 kHz switching |
| Cooling Method | External heatsink with forced-air cooling |
| Protection | Overcurrent, overvoltage, undervoltage, thermal |
| Compatible Motors | Fanuc Alpha a12/3000HV, a22/2000HV |
| Mounting | Rack-mounted, vertical orientation |
| Dimensions | 430 × 220 × 100 mm |
| Environmental Rating | IP20 |
| Operating Temp | 0 °C to 50 °C |
| Storage Temp | -20 °C to 60 °C |
| Humidity | ≤90% RH non-condensing |
| Efficiency | ~95% |
| Production Status | Discontinued by Manufacturer |
| Weight | 16.01 lbs (≈7.3 kg) |
Information About A06B-6097-H206
The A06B-6097-H206 belongs to Fanuc’s Alpha series servo modules, developed for multi-axis CNC systems requiring high speed and accurate positioning. This SVM2-60/60HV unit is built with two channels in a compact 90 mm housing, optimized for Alpha a12/3000HV and a22/2000HV servo motors. It features an integrated external heatsink for cooling and operates via the FSSB fiber optic interface, ensuring fast and stable communication with Fanuc controllers. Although discontinued by the manufacturer, it remains a vital replacement component for legacy CNC equipment.
Key Features:
- Dual Axis Design: Controls two servo motor axes within one compact module.
- Alpha Series Technology: Optimized for use with Fanuc Alpha AC servo motors.
- High Voltage Operation: Rated for 400 VAC input with robust power handling.
- FSSB Interface: Fiber optic communication ensures fast and reliable data transfer.
- Cooling System: External heatsink and forced-air cooling for stable operation.
- Integrated IPM Module: Delivers efficient and protected power management.
- Protection Features: Safeguards against overcurrent, overvoltage, undervoltage, and thermal faults.
- Legacy Part: Discontinued but widely used as a replacement in existing CNC systems.
The A06B-6097-H206 delivers the reliability and control precision required for multi-axis CNC machining.
