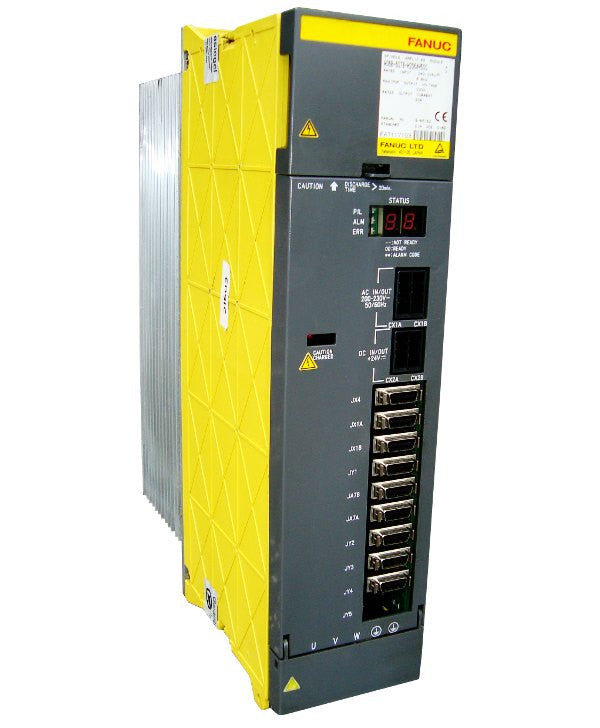

A06B-6102-H206#H520 | GE Fanuc Alpha Series Spindle Amplifier, 11 kW CNC Drive
- Regular price
- $3,499.00
- Sale price
- $3,499.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: A06B-6102-H206#H520
Description
The GE Fanuc A06B-6102-H206#H520 is an Alpha Series spindle amplifier engineered for precise spindle motor control in CNC applications. It delivers a rated output of 11 kW with high current capability to support stable and accurate machining operations. The A06B-6102-H206#H520 integrates directly into GE Fanuc CNC systems for reliable high-performance spindle control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE Fanuc |
| Category | Servo Products |
| Part Number | A06B-6102-H206#H520 |
| Subcategory | CNC Converter |
| Series | Alpha |
| Power supply | 200–230 VAC, 3-phase, 50/60 Hz |
| Rated output power | 11 kW |
| Maximum output power | 15 kW |
| Continuous output current | 17 A |
| Maximum output current | 24 A |
| Speed control range | 0…6000 rpm |
| Communication interface | RS-232 (built-in) |
| Installation type | Indoor use only |
| Ambient operating temperature | 0…45 °C |
| Permissible humidity | ≤90% (non-condensing) |
| Certifications | CE |
| Dimensions (W × H × D) | 200 × 375 × 180 mm |
Information About A06B-6102-H206#H520
The A06B-6102-H206#H520 is part of the GE Fanuc Alpha Series of spindle amplifiers developed for advanced CNC drive systems. It features a compact, industrial-grade design optimized for three-phase power input and continuous high-load operation. The amplifier is compatible with GE Fanuc Alpha spindle motors and integrates seamlessly with CNC controllers through its built-in serial communication interface. It is typically used in machining centers, lathes, and other CNC-controlled equipment where precise speed regulation, torque stability, and system reliability are critical, utilizing advanced power electronics and closed-loop spindle control technology.
Key Features:
- Alpha Series spindle control: Designed specifically for GE Fanuc CNC spindle applications.
- High power output: Supports demanding machining operations with stable power delivery.
- Wide speed control range: Enables precise spindle speed regulation from low to high RPM.
- Robust current capacity: Handles continuous and peak current demands reliably.
- Integrated serial communication: Supports system configuration and diagnostics via RS-232.
- Compact industrial enclosure: Optimized for space-efficient CNC cabinet installation.
- CE-certified design: Complies with applicable European safety and performance standards.
The A06B-6102-H206#H520 delivers the reliability and precision required for CNC spindle motor control in high-performance machining environments.
