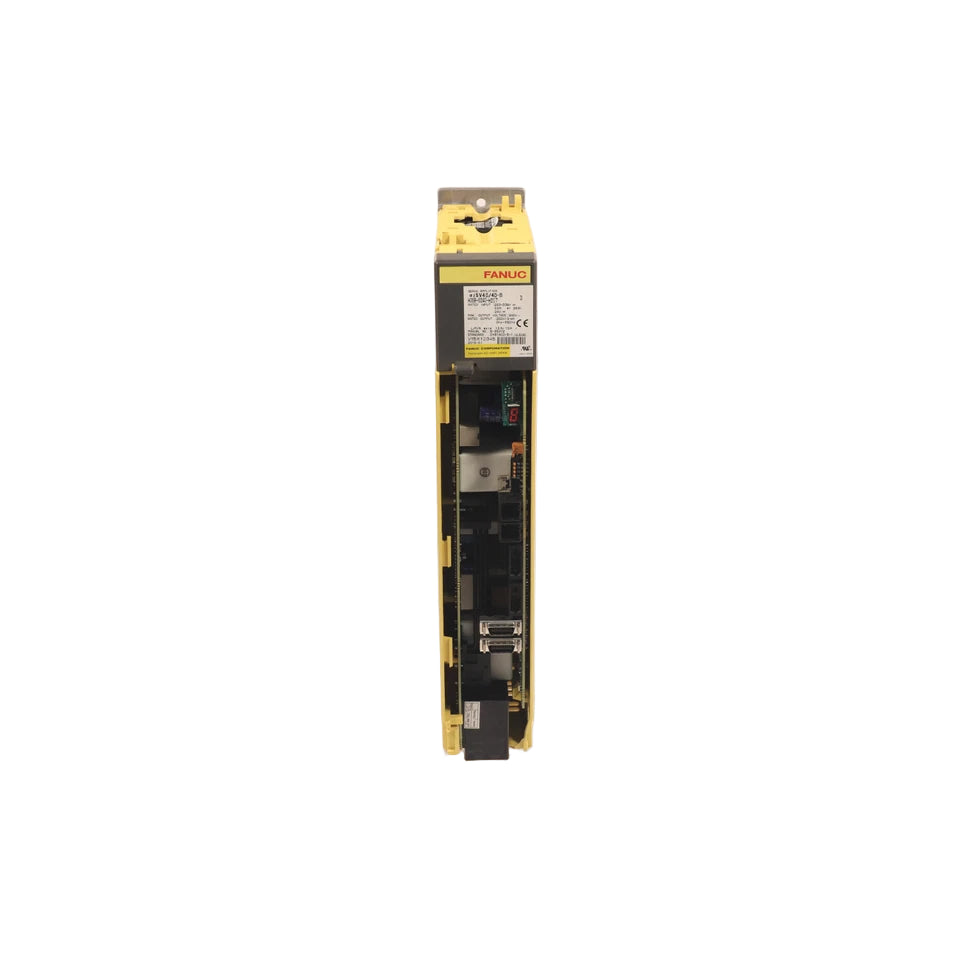

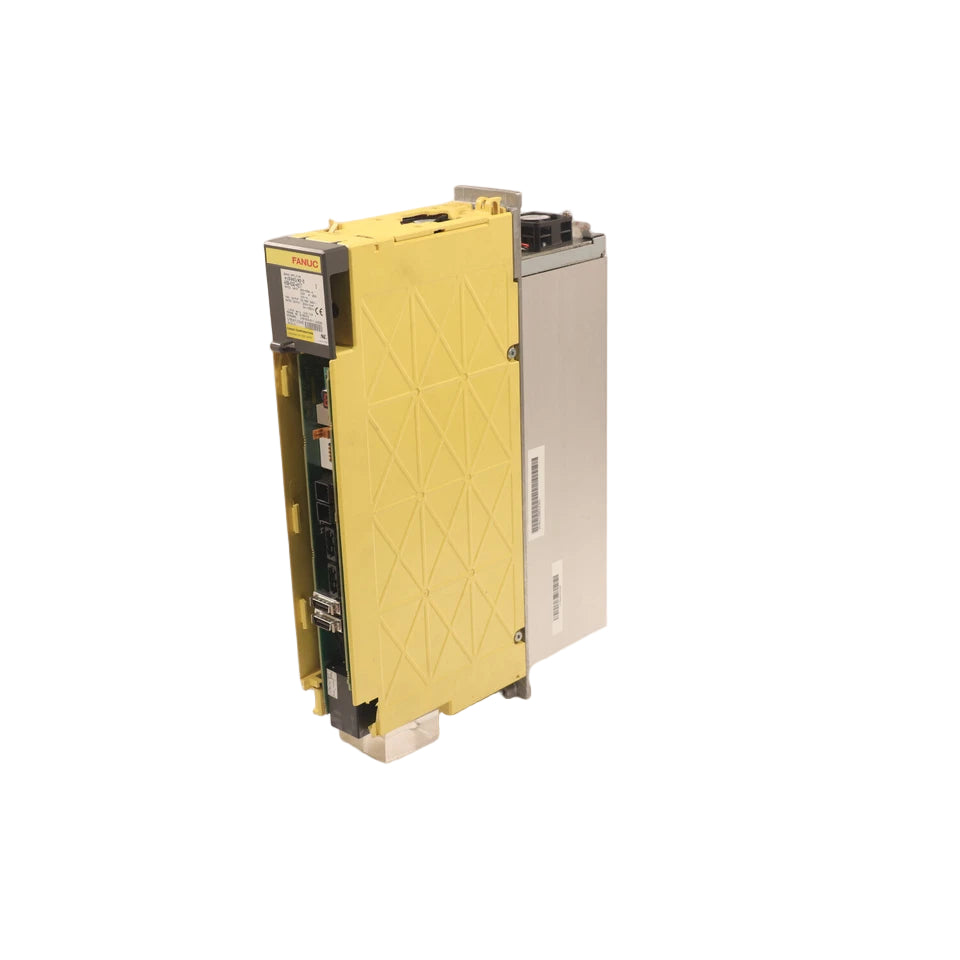

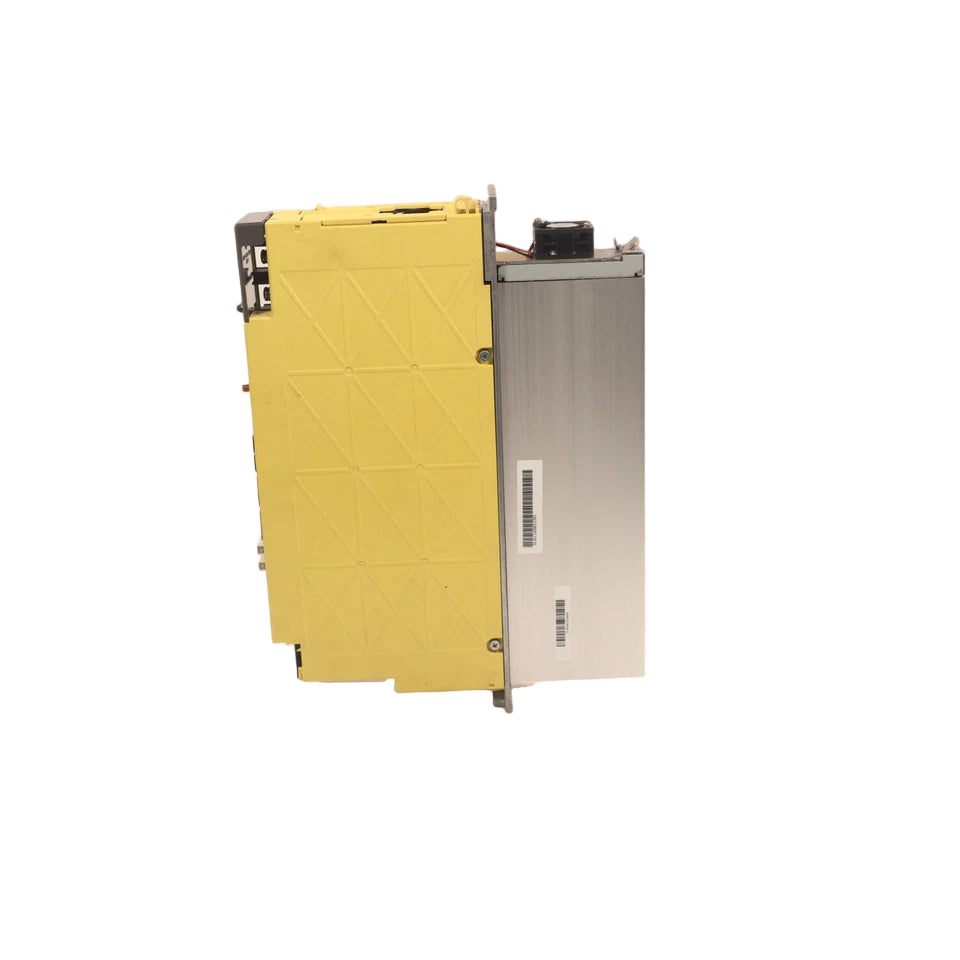

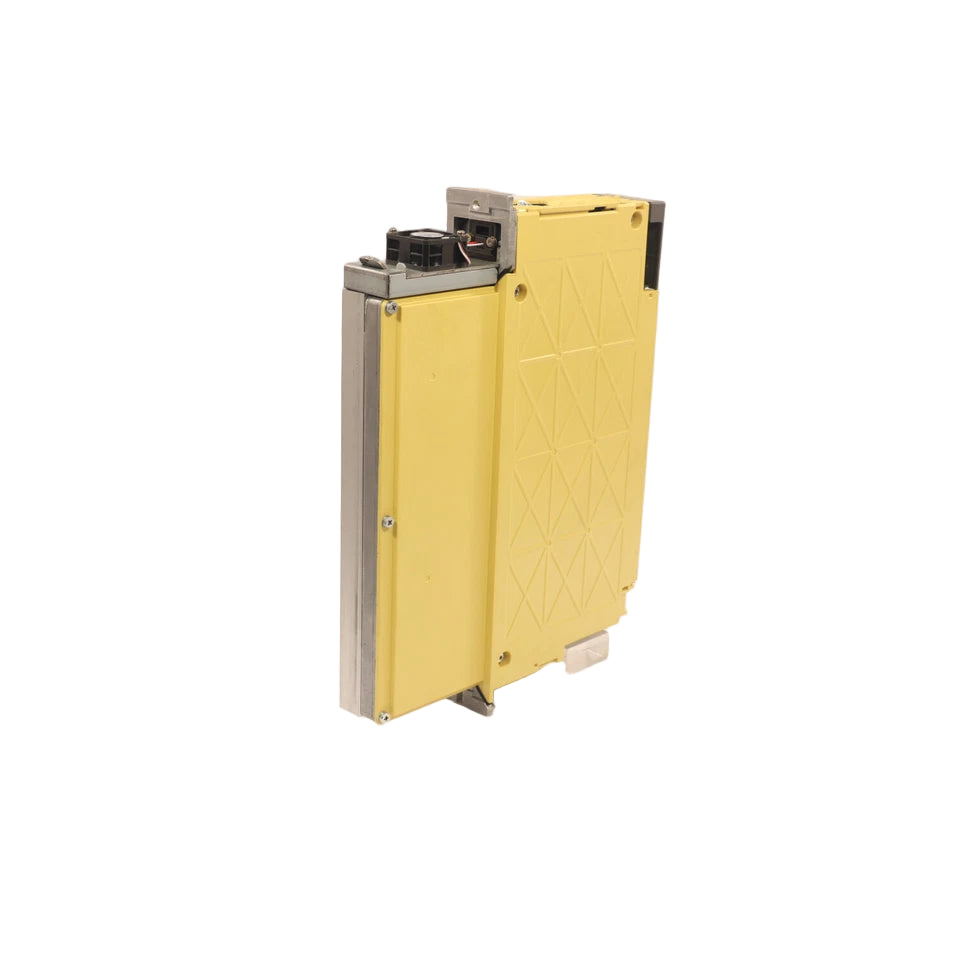

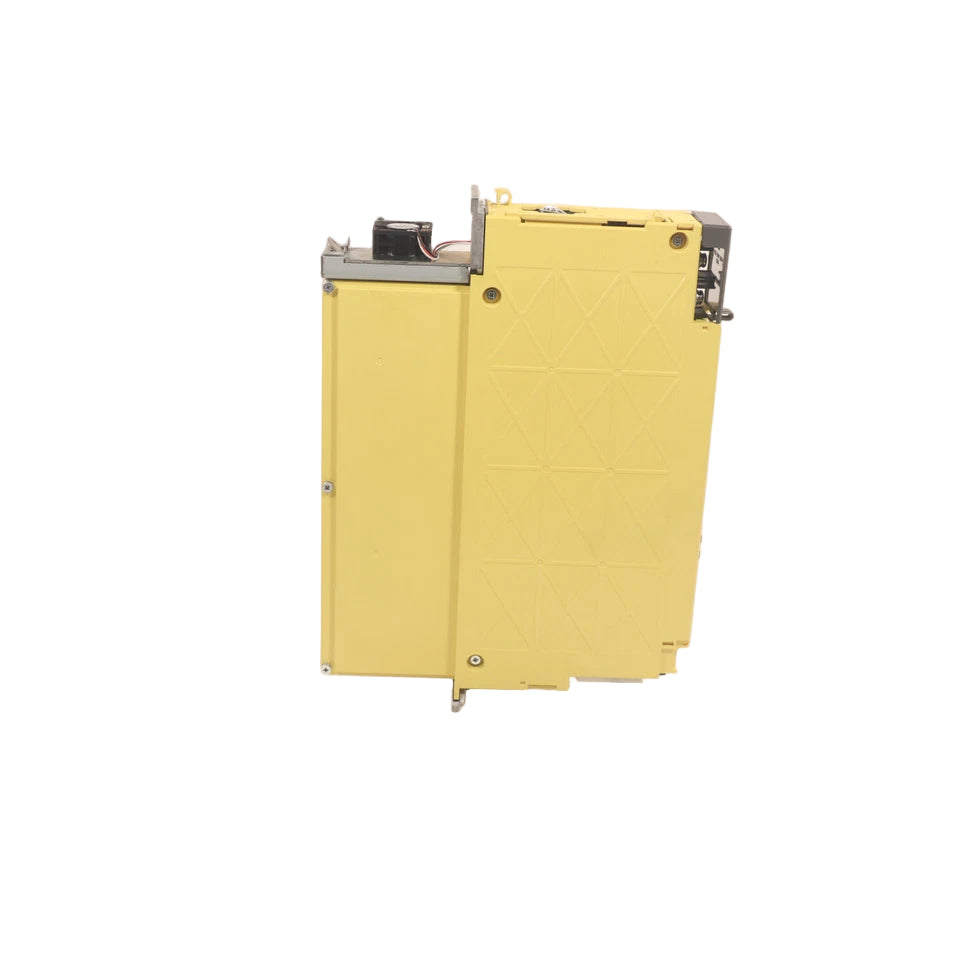

A06B-6240-H207 | FANUC AISV Dual Axis Servo Amplifier Module 40/40-B
- Regular price
- $3,977.00
- Sale price
- $3,977.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: A06B-6240-H207
Description
The FANUC A06B-6240-H207 is a dual-axis servo amplifier module from the AISV 40/40-B series. Designed to regulate precise motor control, it provides efficient power delivery with stable operation in CNC and automation environments. With its durable design and reliable performance, it supports demanding industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | FANUC |
| Category | Servo Products |
| Part Number | A06B-6240-H207 |
| Subcategory | Servo Drive / Servo Control |
| Series | A06B AISV Series |
| Model Type | AISV 40/40-B Dual Axis Servo Amplifier |
| Controlled Axes | 2 (L-axis and M-axis) |
| Rated Output Power | 9 kW |
| Input Voltage Range | 283–339 VAC |
| Power Supply Voltage | 200–240 VAC (3-phase) |
| Rated Output Current | 13 A per axis |
| Nominal Current Limit | 40 A per axis |
| Maximum Output Voltage | 240 VAC |
| Output Frequency Range | 0–550 Hz |
| Power Frequency | 50/60 Hz |
| Cooling Method | Internal and external cooling fans |
| Ambient Operating Temp. | 0°C to 55°C (non-condensing) |
| Storage Temperature | -20°C to 60°C (non-condensing) |
| Vibration Resistance | 0.5G or less |
| Origin | Japan |
| Weight | 10.14 lbs (4.6 kg) |
Information About A06B-6240-H207
The A06B-6240-H207 is part of FANUC’s A06B AISV servo amplifier family, specifically configured for dual-axis control. It is engineered to drive and manage servo motors with precise current regulation, supporting automation systems across a wide range of CNC machinery. This module operates within an input voltage range of 283–339 VAC and offers a rated power output of up to 9 kW. With built-in cooling fans and protection features, the A06B-6240-H207 ensures stable and efficient functionality even under heavy-duty conditions. Its compatibility with FANUC automation systems makes it a reliable choice for replacement, repair, or system upgrades.
Key Features:
- Dual-Axis Operation: Controls two servo motor axes simultaneously for efficient motion control.
- High Power Output: Rated for up to 9 kW, meeting the requirements of industrial CNC applications.
- Wide Input Range: Operates between 283 and 339 VAC with 200–240 VAC supply compatibility.
- Precise Current Regulation: Rated at 13 A output per axis, with a nominal current limit of 40 A.
- Flexible Frequency Control: Supports 0–550 Hz output range for versatile applications.
- Efficient Cooling Design: Equipped with internal and external cooling fans for thermal stability.
- Industrial Durability: Built for vibration resistance (0.5G or less) and reliable operation in varied environments.
- Temperature Resilience: Operates from 0°C to 55°C and can be stored at -20°C to 60°C non-condensing.
The A06B-6240-H207 delivers the reliability and precision required for high-performance CNC automation.
