A16B-1000-0010/08F | FANUC System 3 Master PCB for 9-/12-inch CRT Displays
- Regular price
- $1,849.00
- Sale price
- $1,849.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: A16B-1000-0010/08F
Description

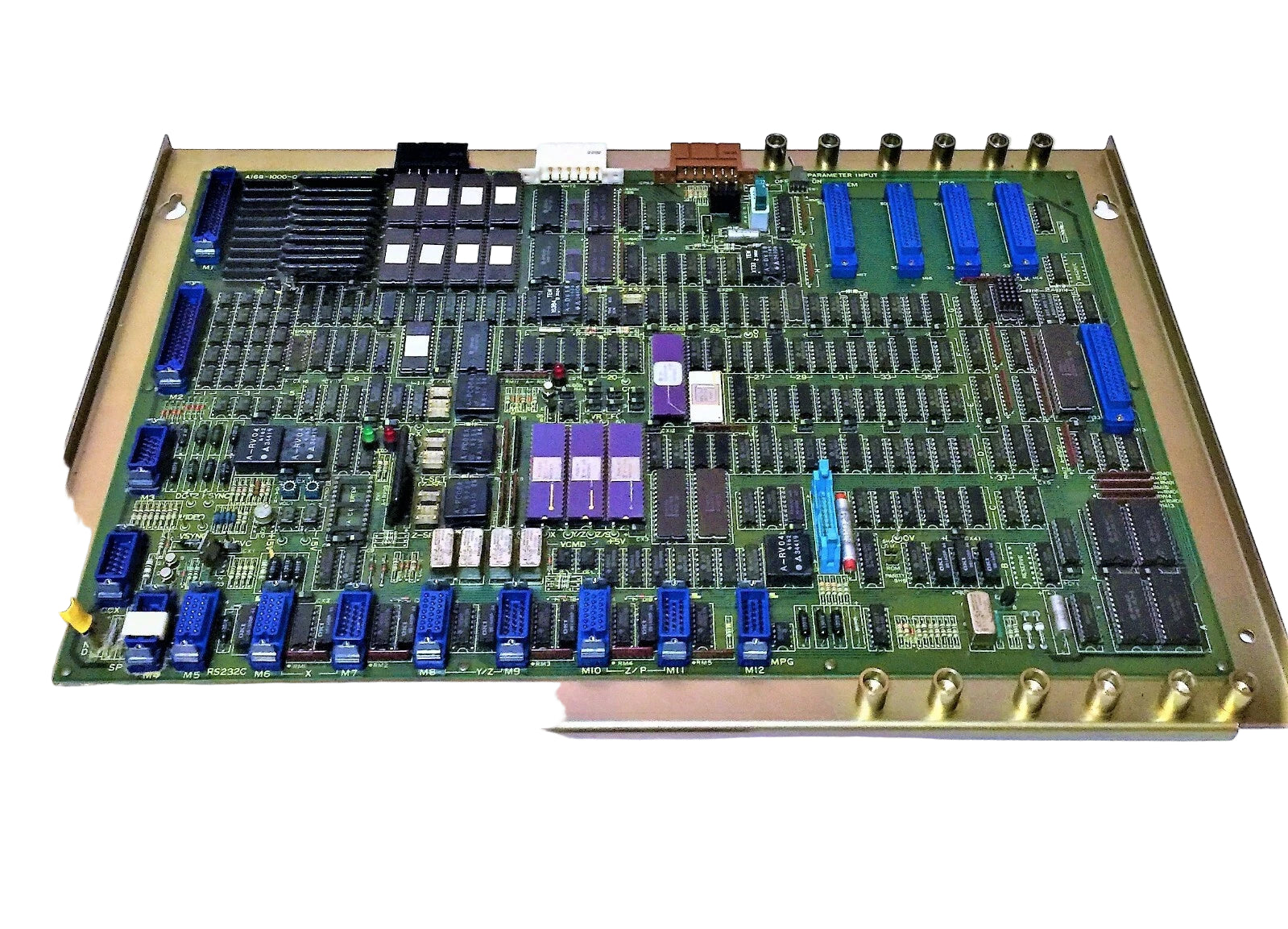

The FANUC A16B-1000-0010/08F is a master control board (Master PCB) for the System 3 series. It generates graphics output for 9- or 12-inch CRT displays in both monochrome and color (with optional video hardware). This PCB is critical for System 3M / 3T / 3TC / 3TF controllers, providing the interface between the operator display and control logic.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | FANUC |
| Category | CNC Control Boards |
| Part Number | A16B-1000-0010/08F |
| Subcategory | Master PCB / Master Board |
| Series | A16B-1000 (System 3 Master) |
| Product Type | Control Master PCB |
| Compatible Controllers | FANUC System 3: 3M, 3T, 3TC, 3TF |
| Display Compatibility | 9-inch or 12-inch CRT monitors |
| Graphics Mode | Monochrome (standard), Color via accessory module |
| Input Voltage Rating | ~380-480 VAC (three-phase) |
| Operating Temperature | −10 to +50 °C (non-condensing) |
| Storage Temperature | −20 to +60 °C |
| Vibration Resistance | ~0.5 G or less |
| Weight | ~7.19 lbs (3.26 kg) |
Information About A16B-1000-0010/08F
The A16B-1000-0010/08F belongs to FANUC’s A16B-1000 series of master control electronics, used in the System 3 control platforms. It acts as the central processing/display controller, routing and rendering output to CRT monitor(s) and handling display signals. Because it’s a “master board,” many other modules (I/O boards, motion boards, display/video boards) depend on it to complete system functionality. It accepts high-voltage AC input (≈ 380-480 VAC, often three-phase), making it suitable for industrial applications. The board is available in new or refurbished condition and is often delivered with warranty. When installed, parameters and programs must be reloaded, and jumpers or socketed chips may need to be transferred from the previous board.
Key Features:
- System 3 Compatibility: Designed for FANUC System 3 controllers: 3M, 3T, 3TC, 3TF.
- Graphical Output: Supports monochrome and, via optional video hardware, color graphics for CRT displays.
- Display Sizes Supported: 9-inch and 12-inch CRT monitors.
- High-Voltage AC Input: Operates with 380-480 VAC, suitable for typical industrial power setups.
- Wide Operating Temperature Range: Approximately −10 to +50 °C in operation.
- Compact & Light: About 3.26 kg (≈7.19 lbs), easing handling and installation.
- Parameter Reload Required: Requires reloading parameters and programs when installed.
The A16B-1000-0010/08F delivers the reliability and interface functionality required for System 3 based industrial CNC operations.
