A16B-1200-0800 | FANUC Dual-Axis Digital Servo Command Board for S Series Drives
- Regular price
- $2,899.00
- Sale price
- $2,899.00
- Regular price
-
$852.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: A16B-1200-0800
Description

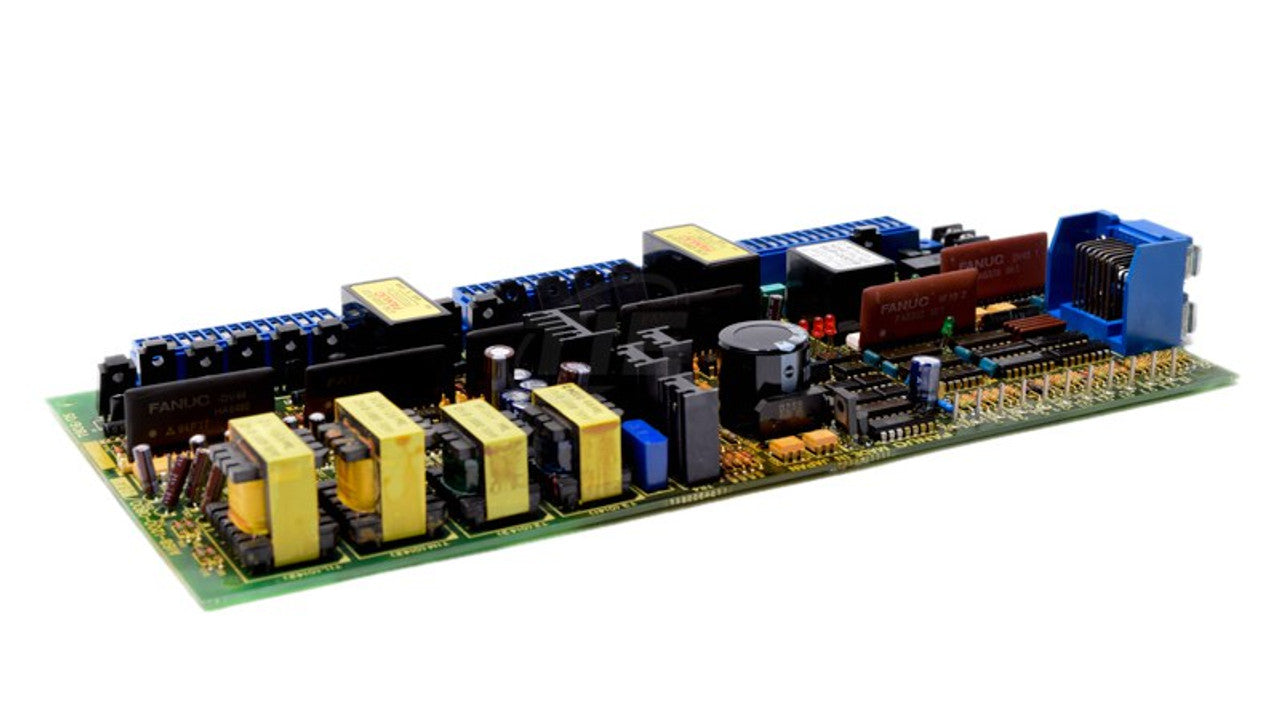

The FANUC A16B-1200-0800 is a dual-axis digital servo command PCB designed for integration with FANUC S series AC servo drives. It provides precise digital control of two servo channels, making it essential for CNC applications requiring accurate and stable multi-axis motion control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | FANUC |
| Category | Servo Products |
| Part Number | A16B-1200-0800 |
| Subcategory | Servo Add-On Module/Board |
| Product Type | Digital Servo Command PCB |
| Control Channels | Dual-axis (2-axis) |
| Drive Compatibility | FANUC A06B-6058-H22x S series AC servo drives |
| CNC System Support | FANUC 0-B, 0-C, 15 series |
| Supported Motors | FANUC 4-0S through 10S/3000 models |
| Control Method | Digital servo signal processing |
| Mounting | Top-mounted on drive unit |
| Application | CNC machine tools, precision automation |
| Status | Discontinued by manufacturer |
| Country of Origin | Japan |
| Cooling Requirement | System-integrated airflow |
| Reliability Rating | Industrial-grade continuous duty |
| Weight | 1.52 lbs (approx.) |
Information About A16B-1200-0800
The A16B-1200-0800 is the last-generation twin-axis control board developed for FANUC’s S series servo drives, such as the A06B-6058-H22x models. It mounts directly on top of the drive and interfaces with CNC systems like FANUC 0-B, 0-C, and 15 series controllers. Supporting servo motors from models 4-0S through 10S/3000, this PCB ensures smooth command execution and reliable servo operation. Known for its rugged design and compatibility, it remains a critical replacement part in maintaining legacy FANUC CNC systems.
Key Features:
- Dual-Axis Control: Manages two servo channels simultaneously for CNC precision.
- Digital Servo Command: Provides accurate and stable digital signal processing.
- Drive Compatibility: Designed for FANUC A06B-6058-H22x S series AC servo drives.
- CNC Integration: Interfaces with FANUC 0-B, 0-C, and 15 control systems.
- Motor Support: Compatible with servo motors ranging from 4-0S up to 10S/3000.
- Rugged PCB Design: Built for long-term use in industrial machining environments.
- Discontinued Legacy Part: Essential for maintaining and repairing older FANUC systems.
- Reliable Operation: Ensures precise and efficient motion control for high-accuracy machining.
The A16B-1200-0800 delivers the reliability and precision required for CNC machine tool operations using legacy FANUC S series servo drives.
