A16B-2202-0432 | Fanuc Automation PC Board Drive Control
- Regular price
- $2,245.00
- Sale price
- $2,245.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: A16B-2202-0432
Description

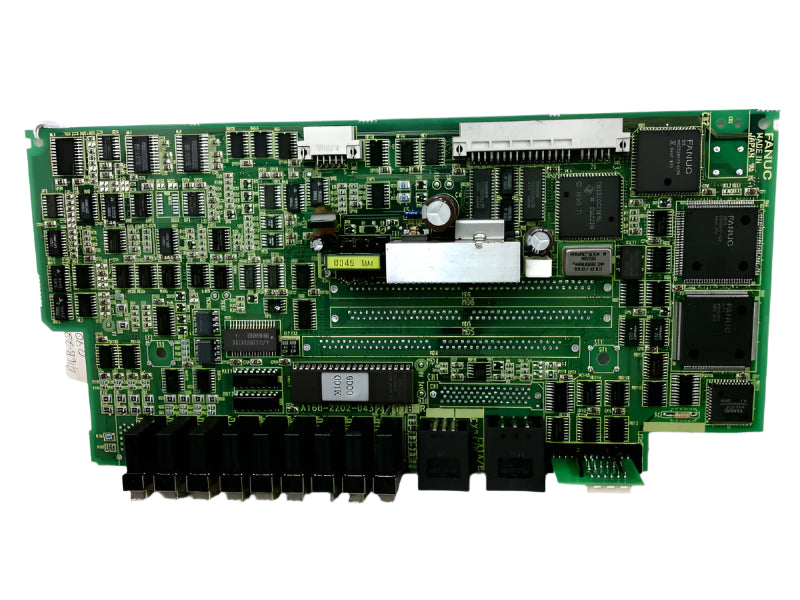

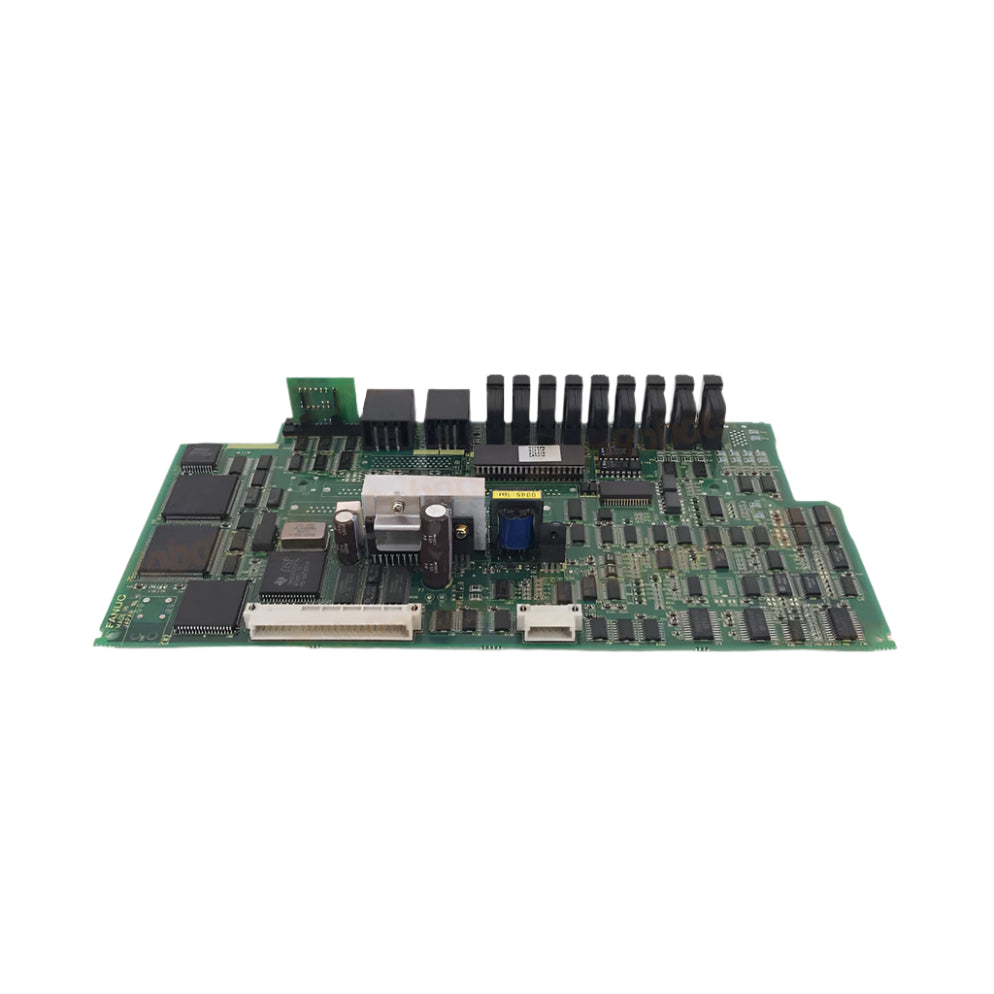

The A16B‑2202‑0432 is a Fanuc Alpha Spindle Drive Control PCB used in 6088-series spindle amplifier modules.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fanuc |
| Category | Servo Products |
| Part Number | A16B-2202-0432 |
| Subcategory | Servo Add-On Module/Board |
| Type | PC Board |
| Function | Spindle Drive Control |
| Board Type | PCB – Spindle Amplifier Module SPM-15 to SPM-55 |
| Series Compatibility | Fanuc 6088 Series Spindle Drives |
| System Type | CNC |
| Application | Alpha Series Spindle Amplifier Control |
| Mounting Location | Internal PCB for Fanuc Alpha Spindle Module |
| Typical Power Range | Supports spindle modules rated 15 kW to 55 kW |
| Input Voltage Support | 200 VAC / 400 VAC Systems |
| Weight | 0.99 lbs |
Information About A16B-2202-0432
The A16B-2202-0432 is a high-performance Fanuc Alpha spindle drive control board designed for use in 6088-series spindle amplifier modules, specifically the SPM-15 to SPM-55 range. Acting as the command interface for high-power spindle operations, this PCB manages speed, torque, and feedback control in 200 VAC and 400 VAC CNC drive systems. Built to operate within Fanuc’s precision Alpha drive architecture, it ensures responsive spindle performance across high-speed machining and turning operations. Although discontinued by Fanuc, it remains widely available through third-party refurbishers and repair providers.
Key Features:
- Alpha Spindle Drive Integration: Central control PCB for Fanuc Alpha SPM spindle modules, enabling closed-loop spindle speed and torque regulation.
- High-Power Compatibility: Supports spindle amplifier modules ranging from 15 kW to 45 kW, ideal for heavy-duty CNC applications.
- Dual Voltage Support: Designed to operate in both 200 VAC and 400 VAC system environments, increasing installation flexibility.
- Precision Spindle Control: Manages motor feedback, vector control signals, and spindle speed regulation in real-time machining.
- Compact PCB Design: Lightweight (~1 lb / 0.45 kg) and easily serviceable within the amplifier housing of Fanuc 6088-series drives.
- Fanuc OEM Design: Originally manufactured in Japan to Fanuc’s industrial-grade quality standards, now supported via certified refurbishment.
The Fanuc A16B-2202-0432 remains a vital spindle drive component within the Fanuc Alpha ecosystem, delivering fast response, dependable torque control, and seamless CNC integration. Ideal for retrofitting, repair, or maintenance of high-performance spindle systems, it ensures consistent precision in mission-critical machining environments.
