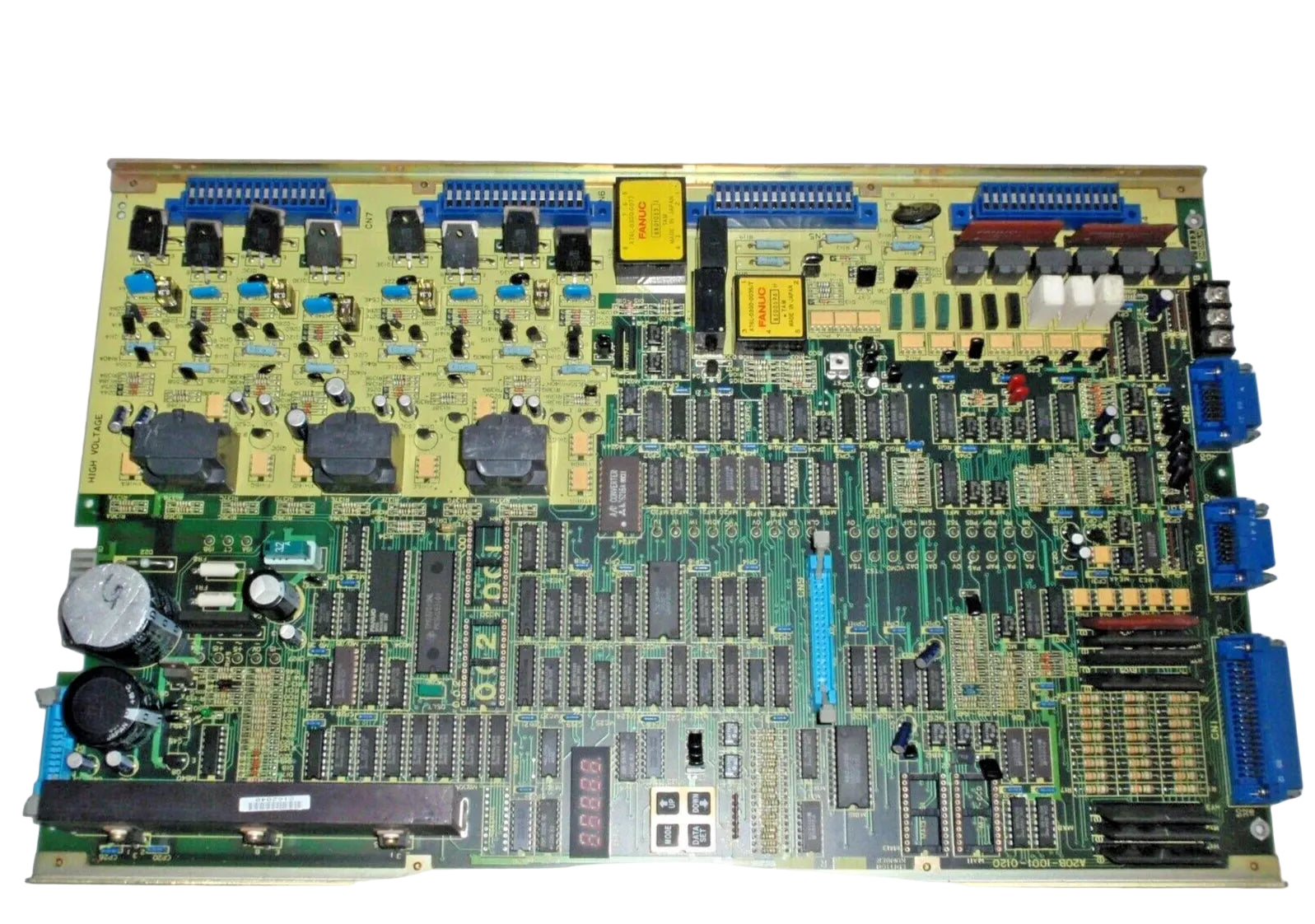

A20B-1001-0120 | FANUC Digital AC Spindle Drive PCB

A20B-1001-0120 | FANUC Digital AC Spindle Drive PCB

Part #: A20B-1001-0120 Manufactured by: Fanuc

Regular price: $4,547.00
Sale price: $4,547.00
Regular price

1 in Stock

Condition: New-Surplus Original Box

Shipping calculated at checkout.

Product variants:

Quantity:

Product Overview

The A20B-1001-0120 is a FANUC digital AC spindle drive PCB engineered for accurate spindle speed and torque control. It is... Read more

We accept:

Talk to a real expert.

+1 (828) 222-3490

sales@iqelectro.com

Mon–Sat, 7:00 AM – 8:00 PM (EST)

IQElectro 2-Year Warranty

Warranty for Product #: A20B-1001-0120

IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms

2-3 Day Free Shipping

Packed Ready to Ship

24/7 Expert Support

Return within 30-Days

IQElectro is Not an authorized distributor for Fanuc

Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: A20B-1001-0120

Description / Specifications

Description

The FANUC A20B-1001-0120 is a digital AC spindle drive PCB designed for precision spindle speed and torque control in CNC systems. It is typically used with the FANUC A06B-6055-H002 AC spindle drive and provides digital feedback-based performance management.

Technical Specifications

Condition	Discontinued by Manufacturer
Brand	FANUC
Category	Servo Products
Part Number	A20B-1001-0120
Subcategory	Servo Add-On Module/Board
Product Type	Digital AC Spindle Drive PCB
Series	Series 20
Compatible Drive	A06B-6055-H002
Input Voltage	200–240 V AC
Power Output Support	Up to 5 kW
Operating Temperature	0°C to 45°C
Humidity Range	20% to 95% RH (Non-condensing)
Mounting Type	Cabinet or Panel Mounted
Weight	2.65 lbs

Information About A20B-1001-0120

The A20B-1001-0120 belongs to the FANUC Series 20 and functions as a spindle drive control board within CNC automation systems. It manages spindle speed and torque through digital control architecture, ensuring accurate and stable machine performance.

This PCB is commonly paired with the FANUC A06B-6055-H002 spindle drive unit. It operates within a 200V to 240V AC input range and supports spindle applications up to 5 kW. Designed for cabinet or panel mounting, the board is suitable for industrial environments operating between 0°C and 45°C with non-condensing humidity conditions.

Key Features:

Digital Spindle Control: Provides spindle speed and torque regulation via digital feedback.
Series 20 Platform: Part of the FANUC A20B control board series.
Spindle Drive Compatibility: Typically used with A06B-6055-H002.
200–240V AC Operation: Designed for standard industrial CNC power systems.
Up to 5 kW Output Support: Suitable for mid-range spindle applications.
Flexible Cooling Options: Fan or heat-sink based cooling depending on installation.
Control Cabinet Installation: Designed for panel or cabinet mounting.
Industrial Operating Range: Operates from 0°C to 45°C.
CNC Integration: Intended for spindle control in machining environments.

The A20B-1001-0120 delivers reliable digital spindle drive control for FANUC CNC systems.
