A9K-RSP-4G | Cisco Route Switch Processor
- Regular price
- $384.00
- Sale price
- $384.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: A9K-RSP-4G
Description

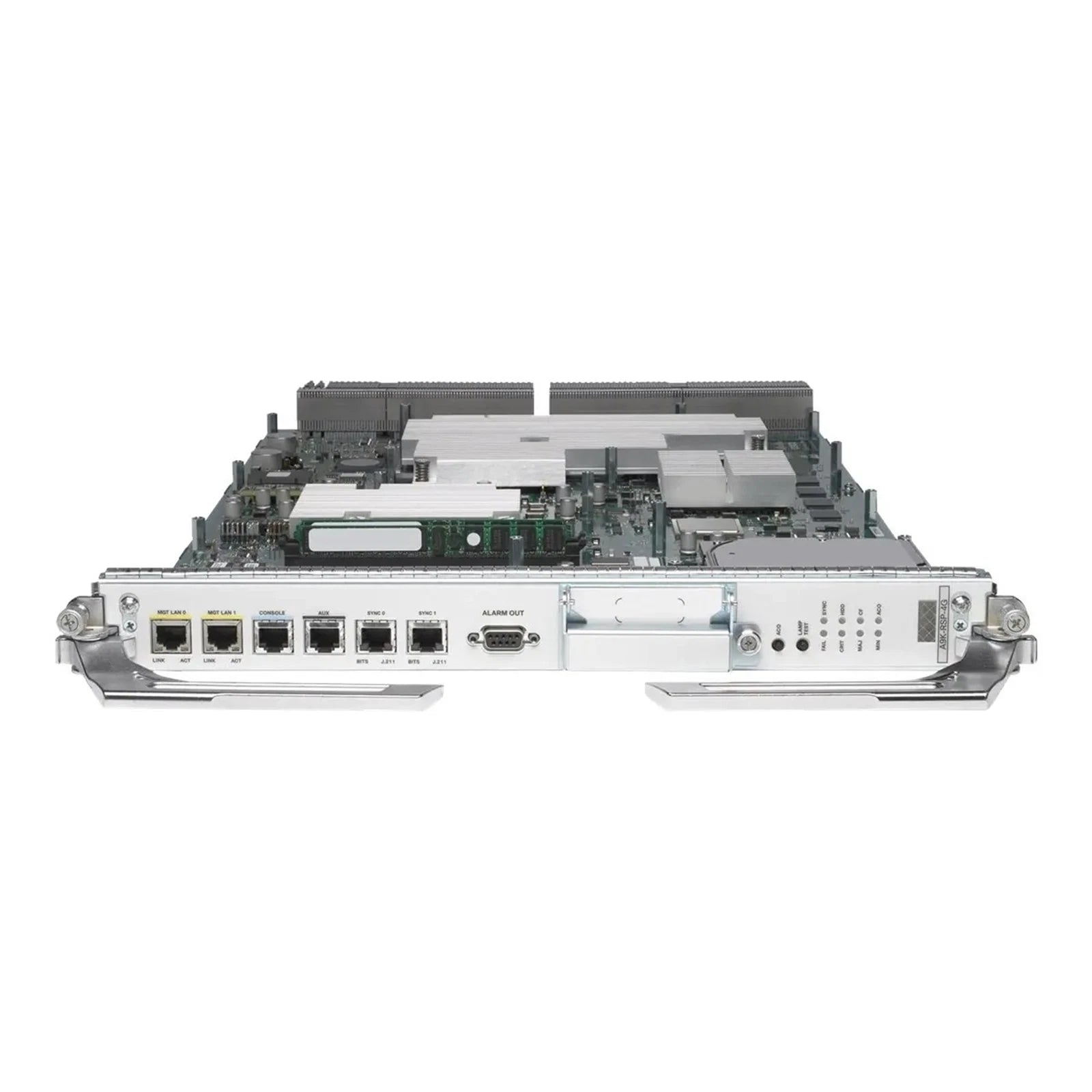

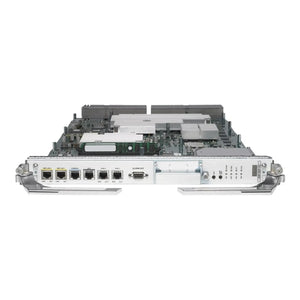

The Cisco A9K-RSP-4G is a Route Switch Processor designed for the ASR 9000 Series routers, providing control plane and management functions.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Network Hardware
|
| Part Number | A9K-RSP-4G |
| Subcatecory |
Route Switch Processor (RSP)
|
| CPU | High-performance dual-core processors |
| Memory Internal | ◦ 4-GB Error-Correcting Code (ECC)-protected DRAM for A9K-RSP-4G ◦ Hard disk: 40-GB SAS HDD ◦ 4-GB eUSB Flash memory |
| Memory External | ◦ 1-GB Compact Flash ◦ Timing (two independent clock source connections) ◦ RJ-45 connector for external timing reference interfaces (for example, BITS/SSU) |
| Management | ◦ Two 10/100/1000 BASE-T (RJ-45) LAN management ports ◦ One console port ◦ One auxiliary port |
| Alarms | Alarm outputs: Critical alarm (CR), major alarm (MJ), and minor alarm (MN) |
| LEDs | ◦ Amber alarm cut-off (ACO) and lamp test ◦ System synchronization alarm (SYNC) ◦ Compact Flash activity (CF) ◦ Hard Disk Drive (HDD) ◦ Fan tray visual indicator (UFAN/LFAN) |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Management Ports | 1x RJ45 Management, 2x Gigabit Management, 2x RJ45 Management |
| Hard Drive | HDD - 40 GB x 1 |
| DRAM | 4 GB |
| Flash | 1 GB |
| Weight | 10 lbs |
Information About A9K-RSP-4G
The A9K-RSP-4G is a high-performance Route Switch Processor designed for Cisco ASR 9000 Series routers. It provides centralized control and data forwarding, offering scalable performance and advanced service capabilities for service provider and enterprise networks.
Key Features:
- Type: Route Switch Processor (RSP)
- Fabric Capacity: 4 Gbps per slot
- CPU: Multicore processor for efficient control-plane processing
- Memory: High-capacity DRAM for routing operations
- Interfaces Supported: MPLS, IPv4, IPv6, Layer 2/3 VPNs
- High Availability: Supports In-Service Software Upgrade (ISSU), Non-Stop Routing (NSR), and Non-Stop Forwarding (NSF)
- Compatibility: Cisco ASR 9000 Series chassis
- Installation: Field-replaceable unit (FRU) for easy maintenance and redundancy
- Durability: Designed for continuous operation in demanding network environments
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Compliance: Meets Cisco and industry standards for performance and reliability
The A9K-RSP-4G enhances routing scalability, resiliency, and service flexibility, making it essential for high-performance and mission-critical network deployments.
