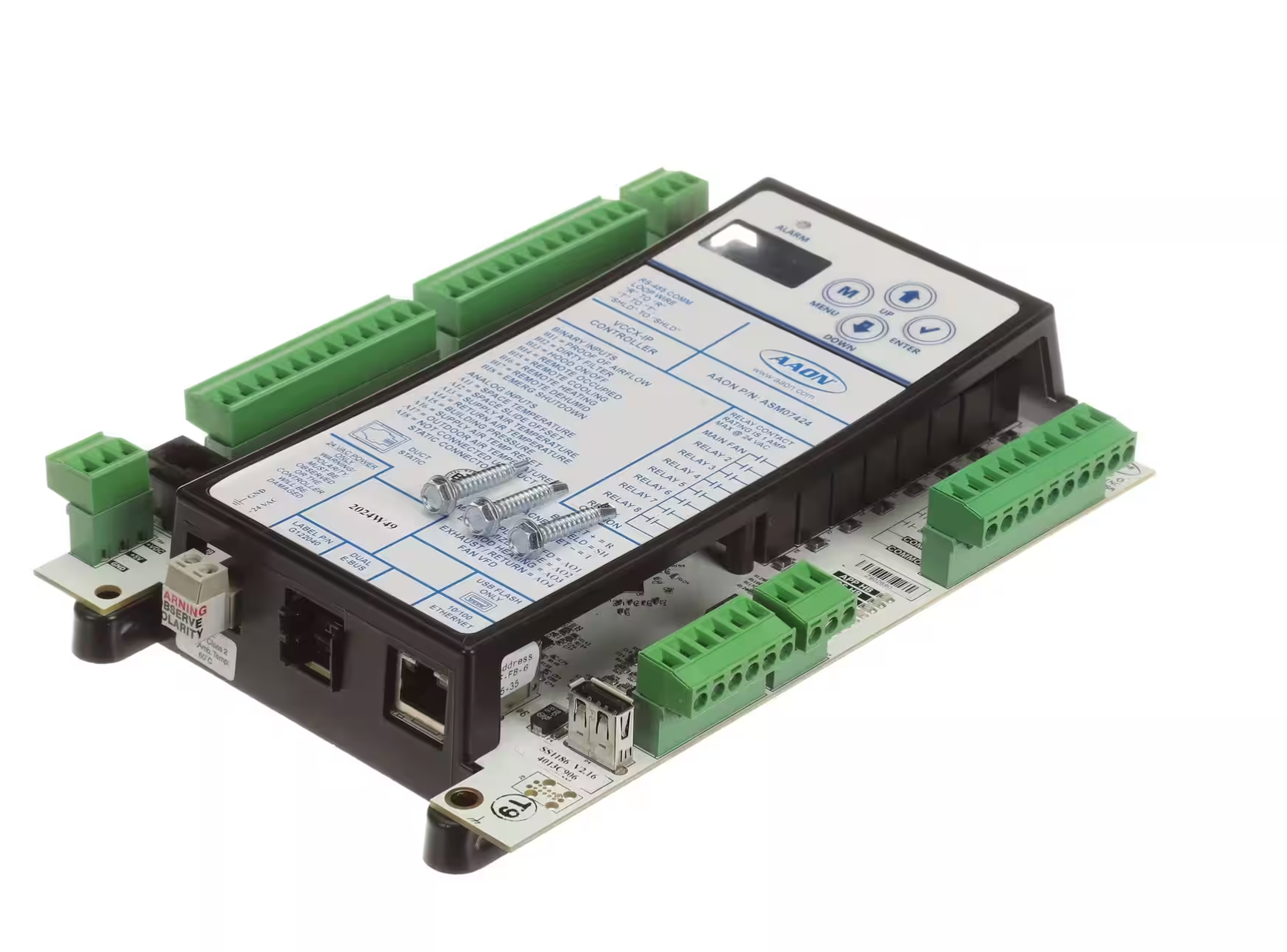

AAON ASM07424 VCCX-IP HVAC Controller Module with BACnet

AAON ASM07424 VCCX-IP HVAC Controller Module with BACnet

Part #: ASM07424 Manufactured by: AAON

Regular price: $1,999.00
Sale price: $1,999.00
Regular price

1 in Stock

Condition: New-Surplus Original Box

Shipping calculated at checkout.

Product variants:

Quantity:

Product Overview

The AAON ASM07424 is a VCCX-IP HVAC controller module equipped with extensive I/O and multiple building automation communi... Read more

We accept:

Talk to a real expert.

+1 (828) 222-3490

sales@iqelectro.com

Mon–Sat, 7:00 AM – 8:00 PM (EST)

IQElectro 2-Year Warranty

Warranty for Product #: ASM07424

IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms

2-3 Day Free Shipping

Packed Ready to Ship

24/7 Expert Support

Return within 30-Days

IQElectro is Not an authorized distributor for AAON

Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: ASM07424

Description / Specifications

Description

AAON ASM07424 is an OEM VCCX-IP controller module designed for advanced control of compatible AAON commercial HVAC equipment. It provides analog, binary, and relay I/O along with BACnet/IP, BACnet MS/TP, WattComm, and E-BUS connectivity for HVAC control and building automation integration.

Technical Specifications

Condition	New/Never Used Surplus
Brand	AAON
Category	HVAC & Building Automation
Part Number	ASM07424
Subcategory	HVAC Controller
Product Type	Controller Module
Controller Model	VCCX-IP
Operating Power	18–30 VAC
Power Consumption	15 VA Maximum
Analog Inputs	8
Binary Inputs	8
Analog Outputs	4
Relay Outputs	8 Configurable
Network Interface	Ethernet
Communication Protocols	BACnet/IP, BACnet MS/TP, WattComm
E-BUS Expansion Ports	2
USB Update Support	Yes
Operating Temperature	-22°F to 158°F
Operating Humidity	0–95% RH, Non-Condensing
Application	Commercial HVAC Control & Building Automation
Weight	0.84 lbs

Information About ASM07424

The ASM07424 is an AAON VCCX-IP controller designed as the central control platform for compatible commercial HVAC systems. It incorporates the control functionality and operating sequences associated with the VCCX platform while adding Ethernet-based BACnet/IP communication. Multiple communication interfaces and E-BUS expansion ports allow the controller to integrate with building automation networks, communicating sensors, and compatible expansion modules.

Key Features:

VCCX-IP Control Platform: Designed for advanced control of compatible AAON commercial HVAC equipment.
BACnet/IP Connectivity: On-board Ethernet port provides direct connection to BACnet/IP networks.
BACnet MS/TP Support: Provides an additional interface for integration with compatible building automation networks.
Multiple I/O Channels: Includes 8 analog inputs, 8 binary inputs, 4 analog outputs, and 8 relay outputs.
E-BUS Expansion: Two E-BUS ports support compatible communicating sensors and expansion modules.
WattComm Connectivity: Retains AAON's standard WattComm connection for compatible control systems.
USB Software Updates: Supports controller software updates using a flash drive through the onboard USB interface.
Commercial HVAC Control: Supports centralized equipment management and control sequences within compatible AAON systems.

The ASM07424 delivers the communication, expansion, and HVAC control functionality required for compatible AAON commercial systems.
