AAON WattMaster OE391-12 Modular Service Tool Operator Interface
- Regular price
- $1,072.00
- Sale price
- $1,072.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: OE391-12
Description

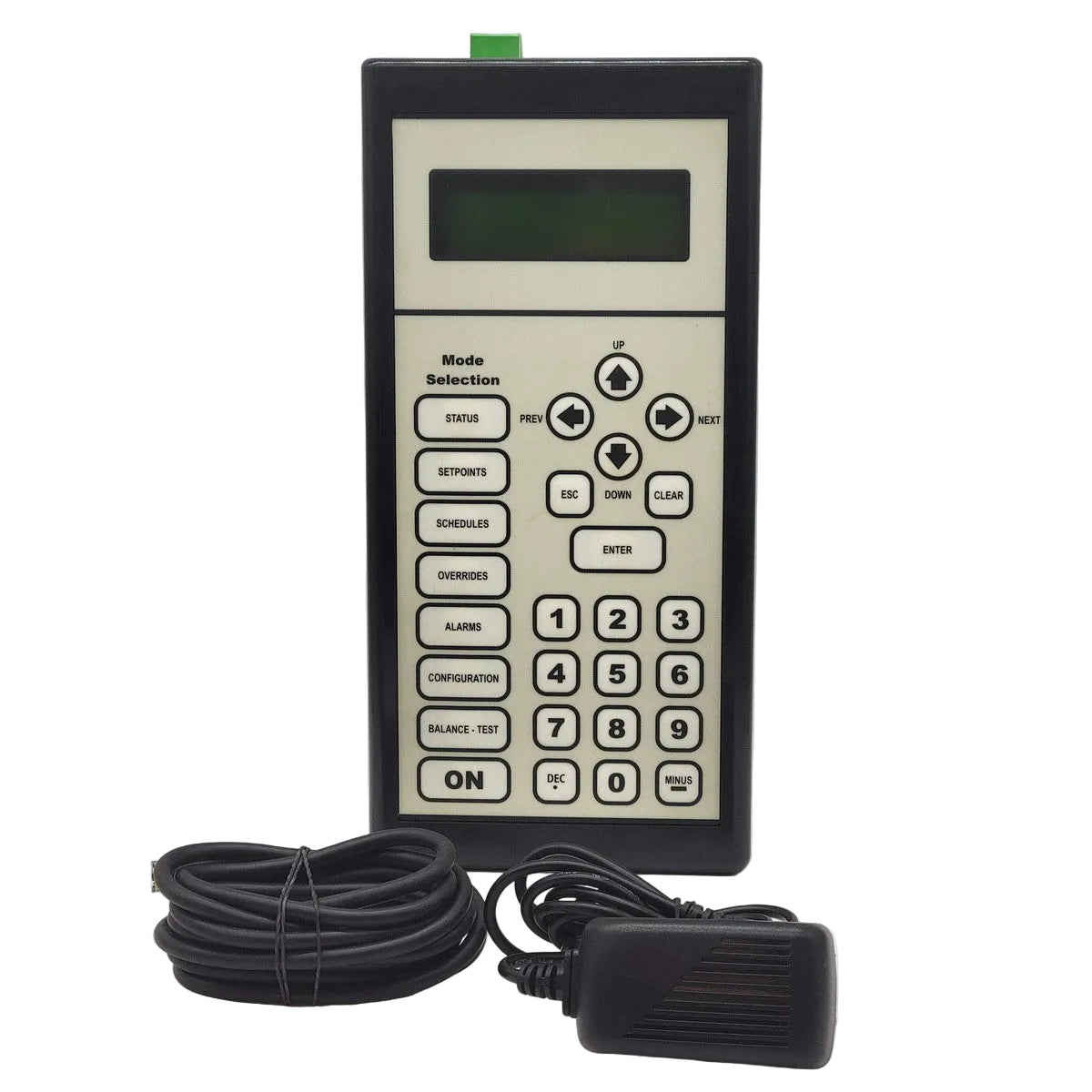

AAON WattMaster OE391-12 is a handheld Modular Service Tool and operator interface designed for direct access to compatible AAON HVAC control systems. It allows service technicians to view controller status, configure operating parameters, and adjust system setpoints through a portable 4-line LCD interface and 27-key membrane keypad.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | AAON / WattMaster |
| Category | HMI / MMI / OIT |
| Part Number | OE391-12 |
| Subcategory | Machine Tool Read Out |
| Product Type | Modular Service Tool / Operator Interface |
| Interface Type | Handheld |
| Display Type | LCD |
| Display Format | 4 Lines × 20 Characters |
| Keypad | 27-Key Membrane Keypad |
| Power Source | Battery Powered |
| Enclosure Material | Plastic |
| Primary Functions | Status Monitoring, Configuration, Setpoint Adjustment |
| Compatible Controllers | VCCX2, VCC-X, VCM-X, VCM-X E-BUS, SA E-BUS, RNE, VCB-X, VCM, VAV/CAV, MUA II, VAV/Zone |
| Replacement / Successor | ASM01895 |
| Additional Cross References | V28140, R83010 |
| Weight | 2.67 lbs |
Information About OE391-12
Key Features:
- Handheld Service Interface: Provides portable access to compatible AAON and WattMaster HVAC controllers.
- Controller Status Monitoring: Allows technicians to view operating status and controller information directly in the field.
- Setpoint Adjustment: Supports configuration and adjustment of controller operating setpoints.
- 4-Line LCD Display: Features a 4-line by 20-character display for viewing system information.
- 27-Key Membrane Keypad: Provides dedicated controls for menu navigation, data selection, and parameter entry.
- Broad Controller Compatibility: Supports multiple AAON control platforms including VCCX2, VCC-X, VCM-X, and VCB-X.
- Battery-Powered Operation: Portable power design supports convenient field service and troubleshooting.
- Protective Enclosure: Black plastic housing and clear display cover protect the operator interface during regular service use.
The OE391-12 delivers the portable monitoring, configuration, and diagnostic functionality required for compatible AAON and WattMaster HVAC control systems.
