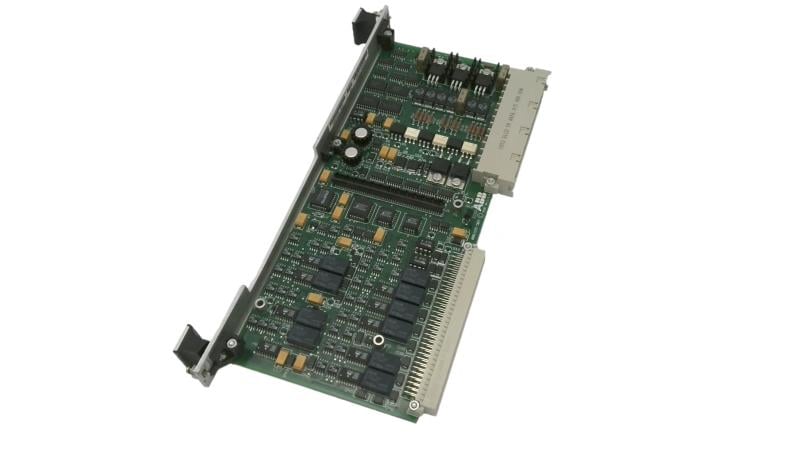

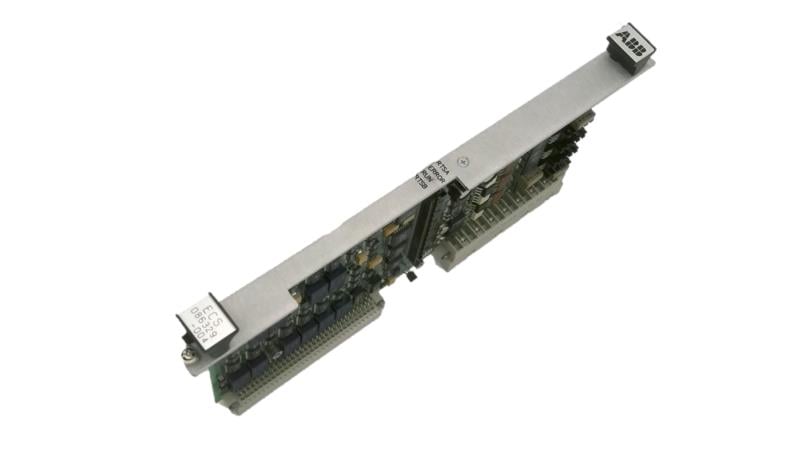

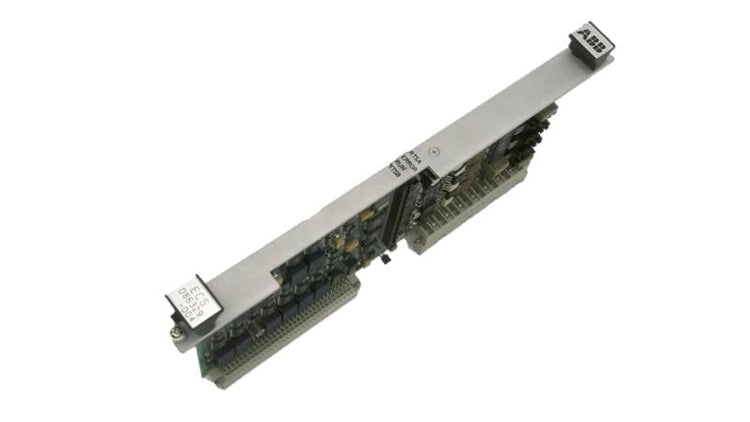

ABB 086329-004 End Column Sensor Printed Wiring Assembly Control Board
- Regular price
- $5,785.00
- Sale price
- $5,785.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 086329-004
Description
The ABB 086329-004 is an End Column Sensor printed wiring assembly used in compatible ABB AccuRay quality control and scanner-frame systems. It provides end-column sensing and signal interfacing functions required for position monitoring within supported industrial measurement equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Drives |
| Part Number | 086329-004 |
| Subcategory | Control/Interface Board |
| Alternate Part Number | 086329004 |
| Product Type | End Column Sensor Module |
| Assembly Type | Printed Wiring Assembly |
| System Designation | ECS |
| Catalog Description | PWA, ECS, END COL SNSR |
| Associated System | ABB AccuRay / HKQCS |
| Application | End-Column Sensing and Monitoring |
| Installation Type | Internal Electronic Board |
| Length | Approximately 153 Millimeters |
| Height | Approximately 10 Millimeters |
| Lifecycle Status | Discontinued by Manufacturer |
| Weight | 0.57 lbs |
Information About 086329-004
The 086329-004 is an ABB End Column Sensor module identified as a printed wiring assembly within the ECS hardware family. Its manufacturer description is PWA, ECS, END COL SNSR, and the component is associated with ABB AccuRay and HKQCS equipment. The board is installed as an internal sensing and interface component rather than operating as a standalone controller. It is legacy hardware used for maintaining compatible scanner-frame and quality-control installations.
Key Features:
- End Column Sensing: Provides sensing functions associated with the end-column section of compatible ABB equipment.
- Printed Wiring Assembly: Constructed as an electronic board assembly for internal system installation.
- ECS Hardware: Identified as part of the ABB End Column Sensor hardware family.
- AccuRay Application: Associated with ABB AccuRay quality-control and scanner-frame equipment.
- Internal Interface Function: Supports signal interfacing between end-column sensing hardware and the associated control system.
- Spare Part Design: Intended as a replacement component for compatible legacy ABB equipment.
- Compact Construction: Manufacturer-derived records specify dimensions of approximately 153 × 3 × 10 millimeters.
- Legacy Component: Industrial service records identify the 086329-004 as discontinued by the manufacturer.
The 086329-004 delivers the reliability and precision required for end-column sensing and position monitoring in compatible ABB industrial measurement systems.
