Product Description P/N: 1SAJ510000R0600
Description

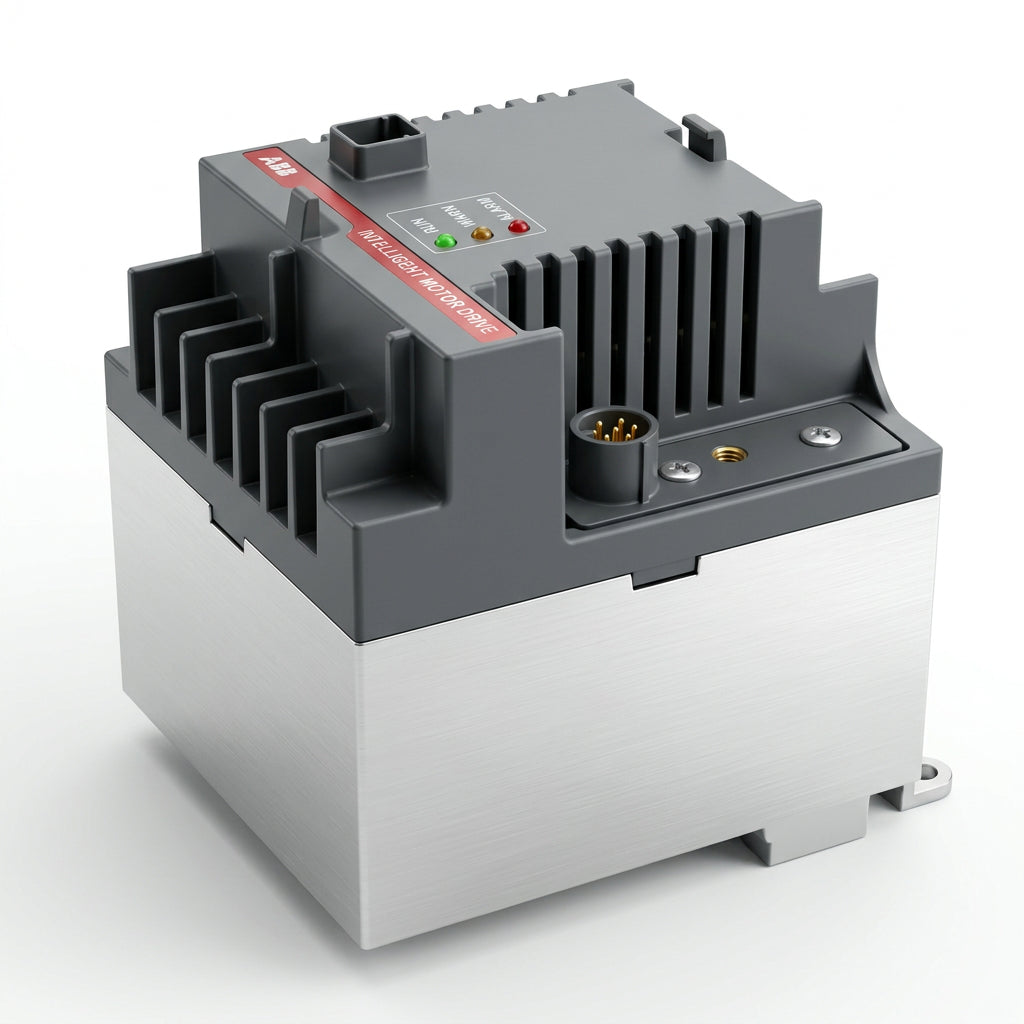

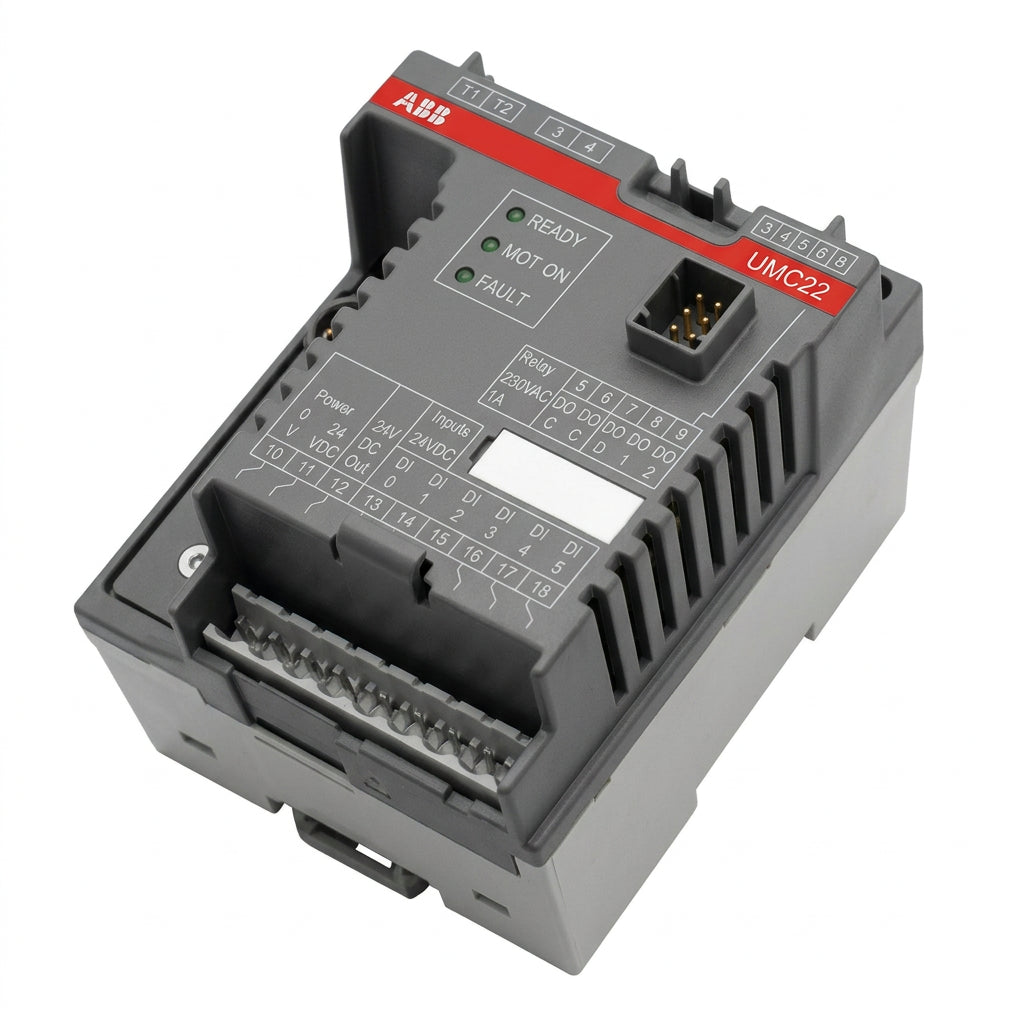

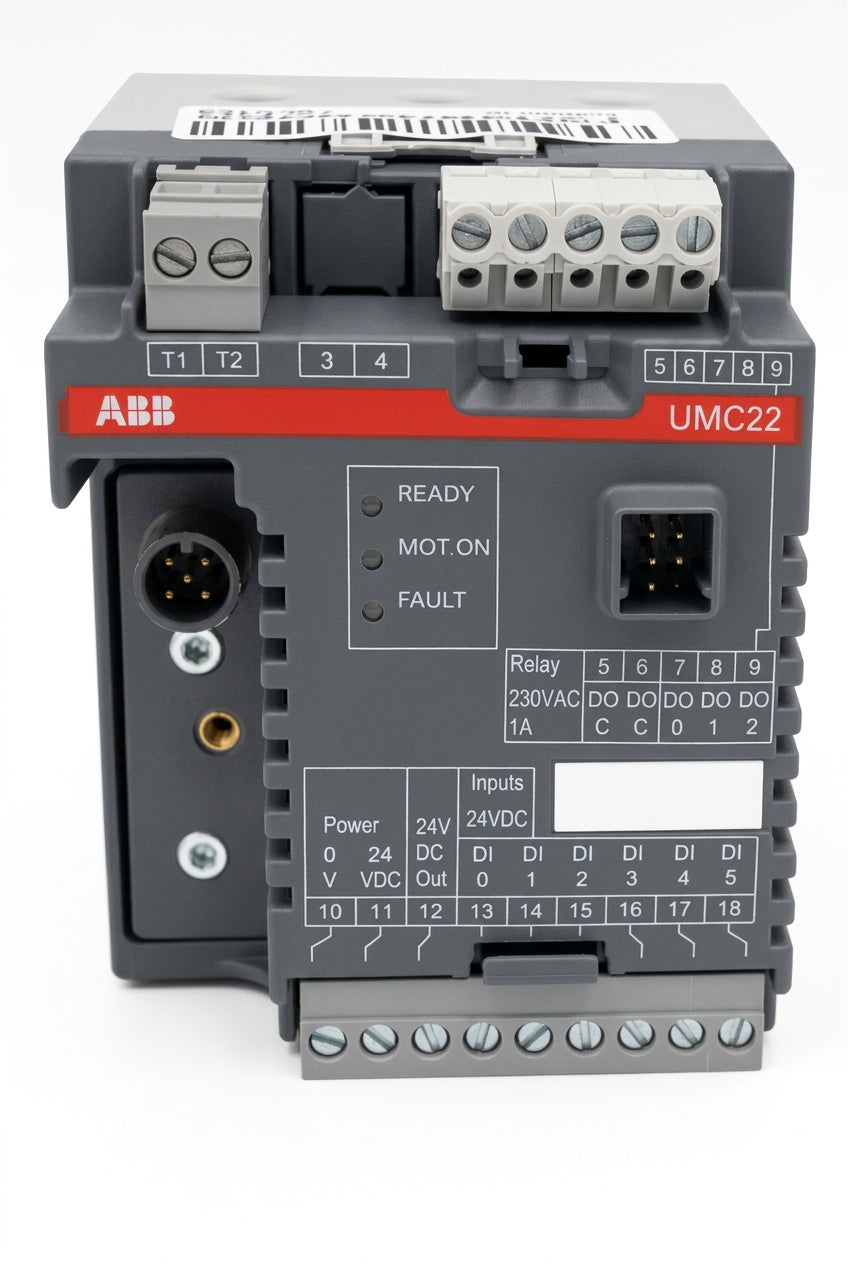

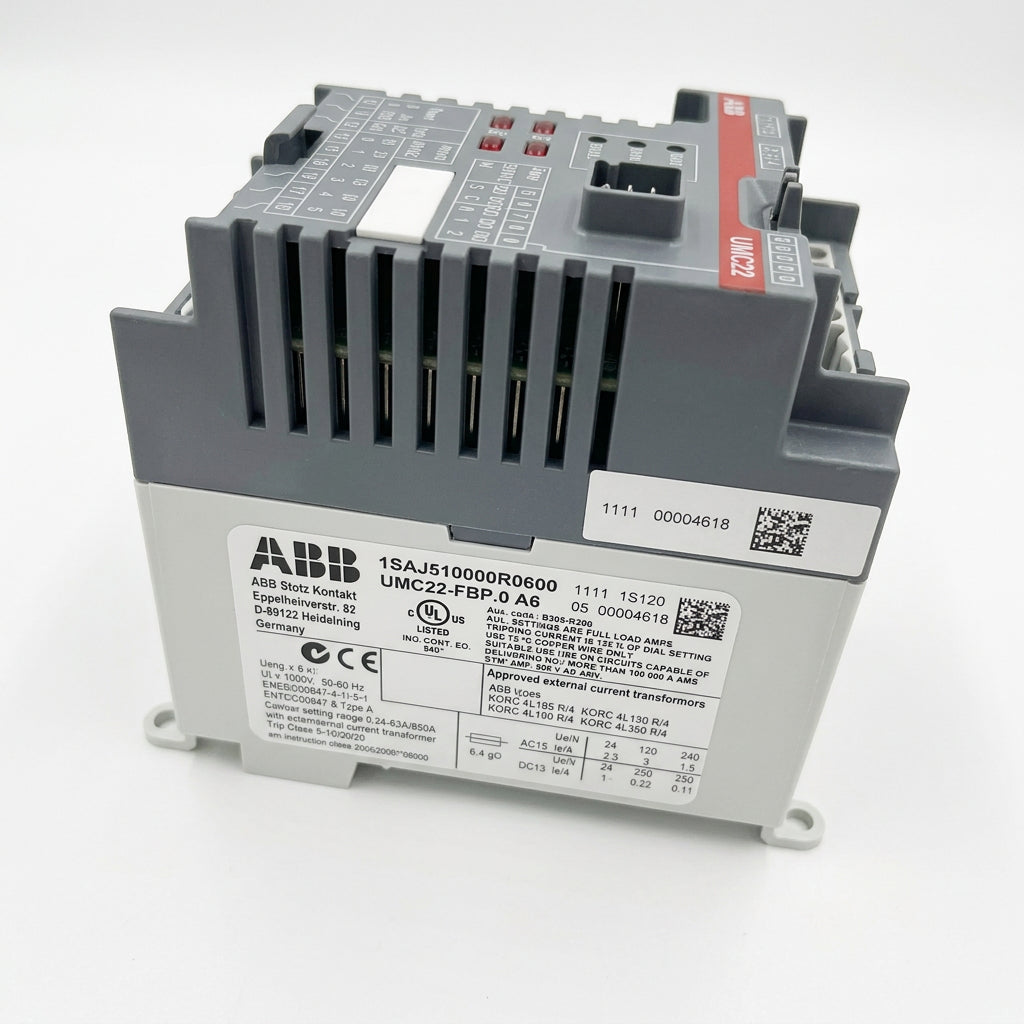

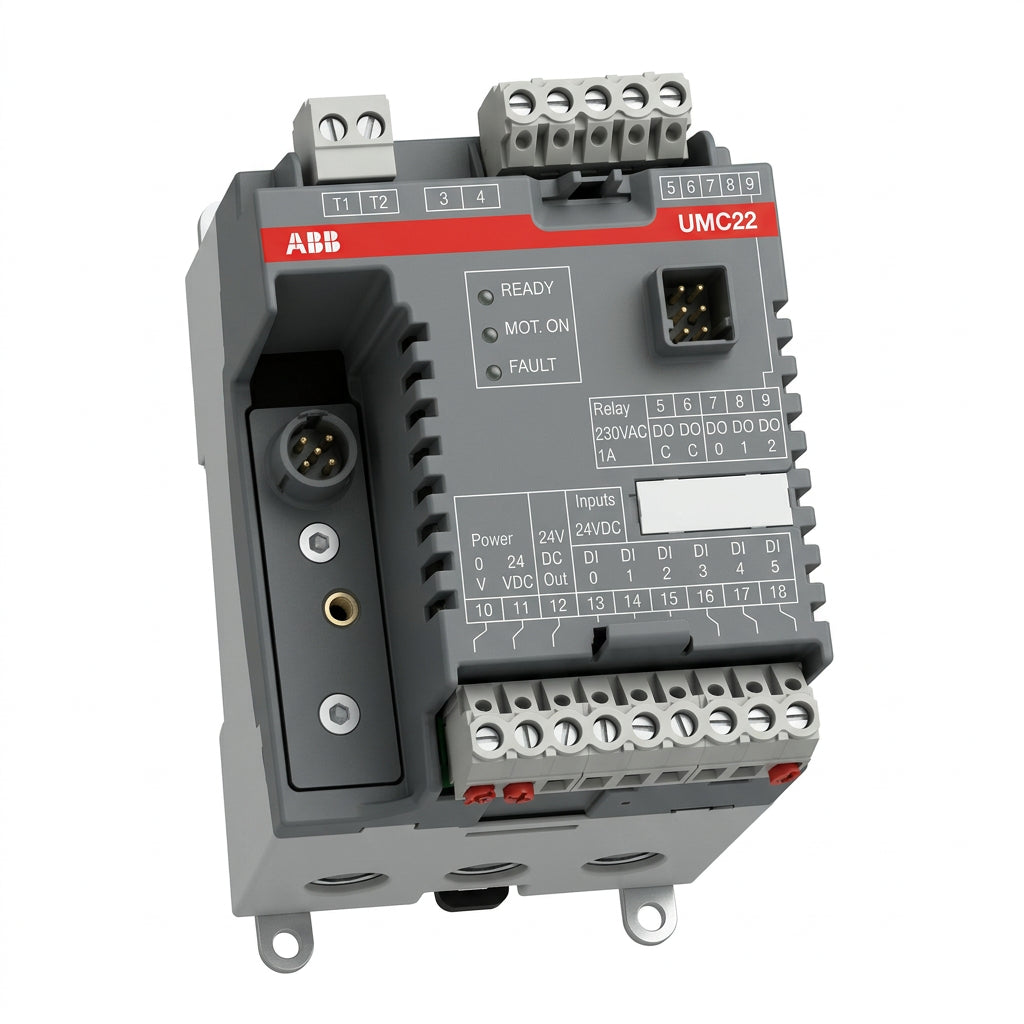

The ABB 1SAJ510000R0600 is a UMC22-FBP.0 universal motor controller designed to provide electronic protection and control for three-phase motors. It uses current transformers, digital inputs, and relay outputs to support motor monitoring, control functions, and integration into industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Motor Control |
| Part Number | 1SAJ510000R0600 |
| Subcategory | Universal Motor Controllers |
| Product Type | UMC22-FBP.0 universal motor controller |
| Motor Application | Three-phase AC motors |
| Digital Inputs | 6 |
| Relay Outputs | 3 |
| Dimensions (W × H × D) | 70 × 90 × 90 mm |
| EAN | 4013614393433 |
| Weight | 0.79 lb |
Information About 1SAJ510000R0600
The 1SAJ510000R0600 belongs to ABB’s Universal Motor Controller UMC22 range. It provides electronic motor protection using through-hole current transformers and includes six digital inputs and three relay outputs for control and status functions. Pre-programmed starter functions simplify configuration for common motor-control applications. An optional LCD panel can be used for parameterization and local operation.
Key Features:
-
Three-Phase Motor Protection: Provides electronic protection for compatible three-phase motors.
-
Current Transformer Measurement: Uses through-hole current transformers to monitor motor current.
-
Six Digital Inputs: Supports external control signals and motor-status monitoring.
-
Three Relay Outputs: Provides relay-based control and signaling functions.
-
Pre-Programmed Starter Functions: Simplifies setup for supported motor-starting applications.
-
Optional LCD Panel: Enables local parameterization and operation when the compatible panel is fitted.
-
Industrial Automation Integration: Supports integration into motor-control and automation systems.
-
Compact Design: Measures approximately 70 × 90 × 90 mm for installation in suitable control panels.
The ABB 1SAJ510000R0600 delivers motor protection and control functionality for industrial machinery, motor-driven equipment, and automation systems.
