ABB 1SDA038323R1 Geared Motor Operator for Circuit Breakers
- Regular price
- $855.00
- Sale price
- $855.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1SDA038323R1
Description

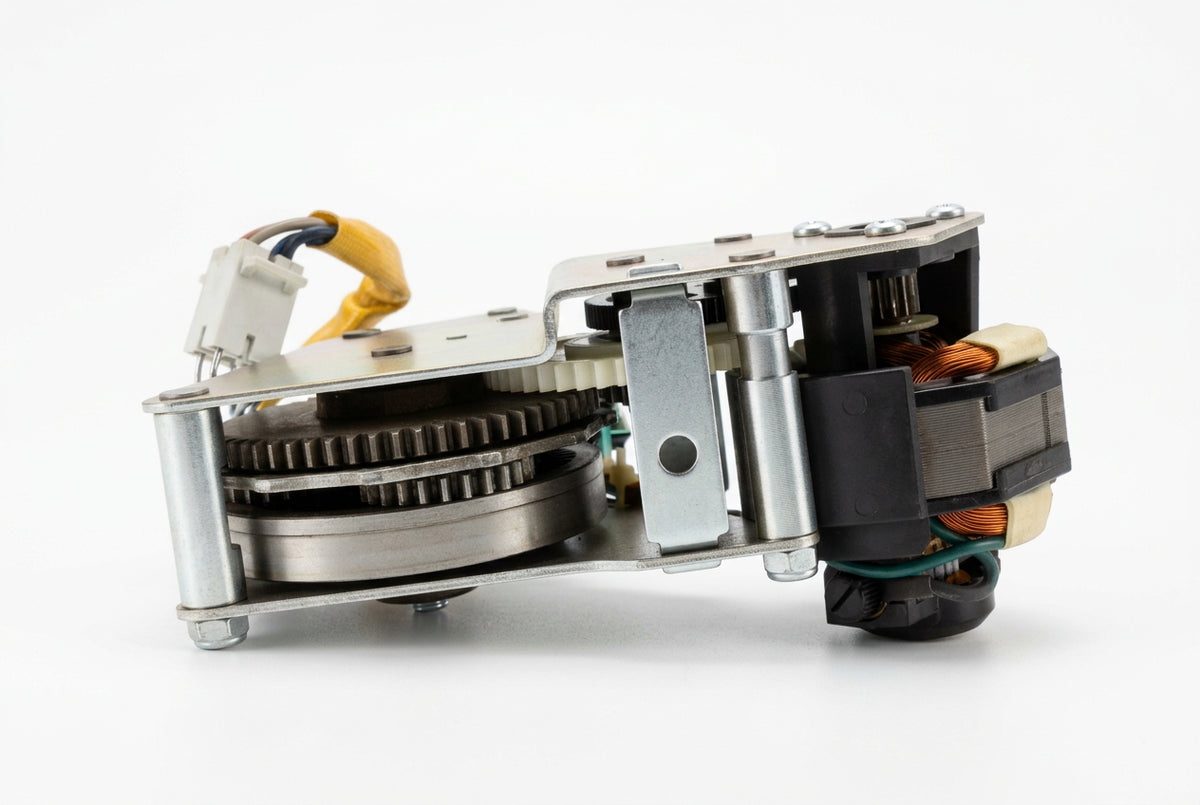

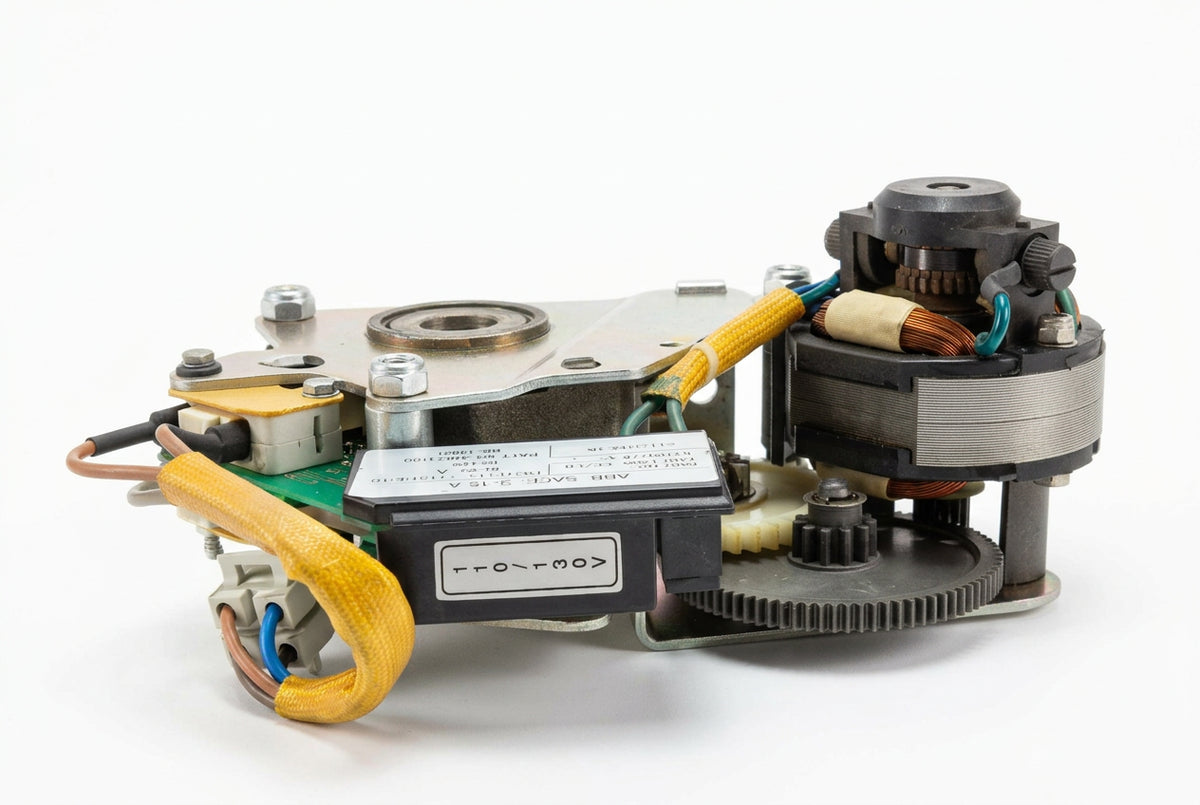

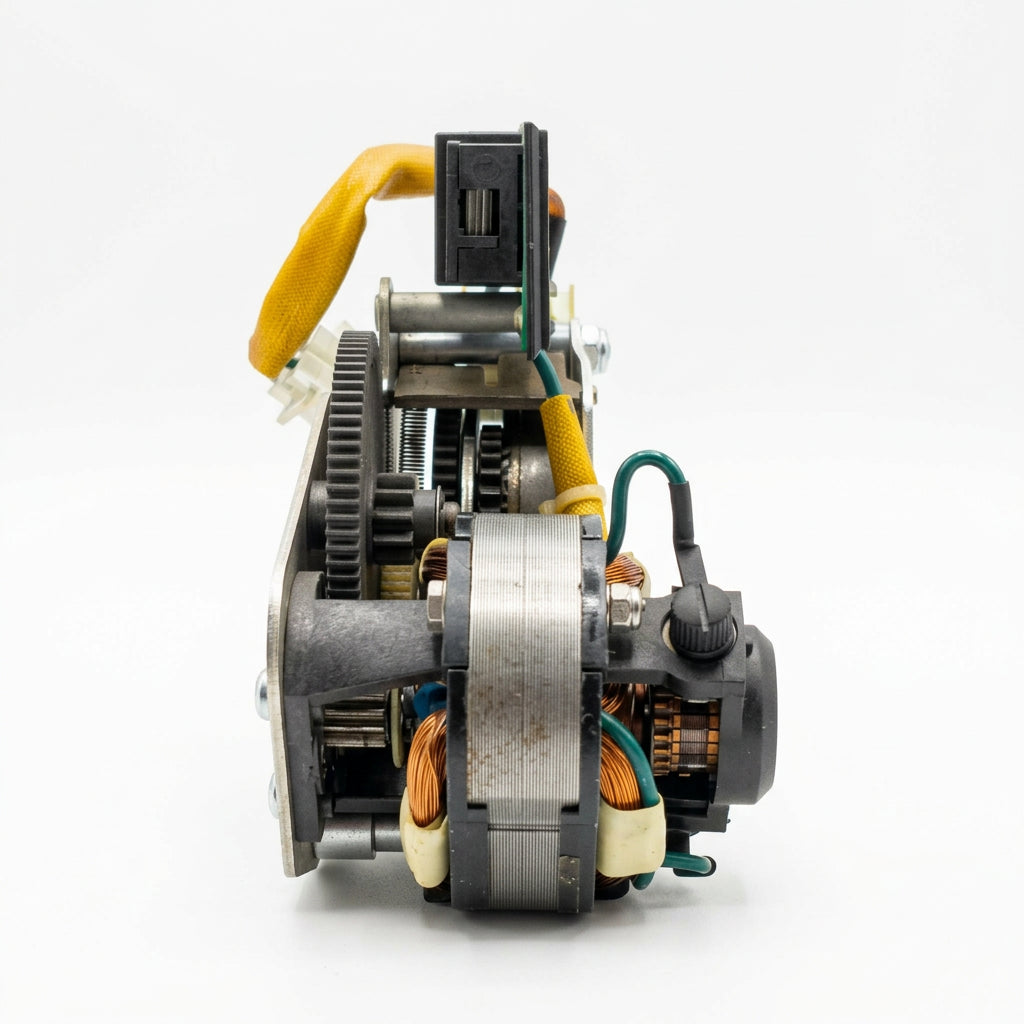

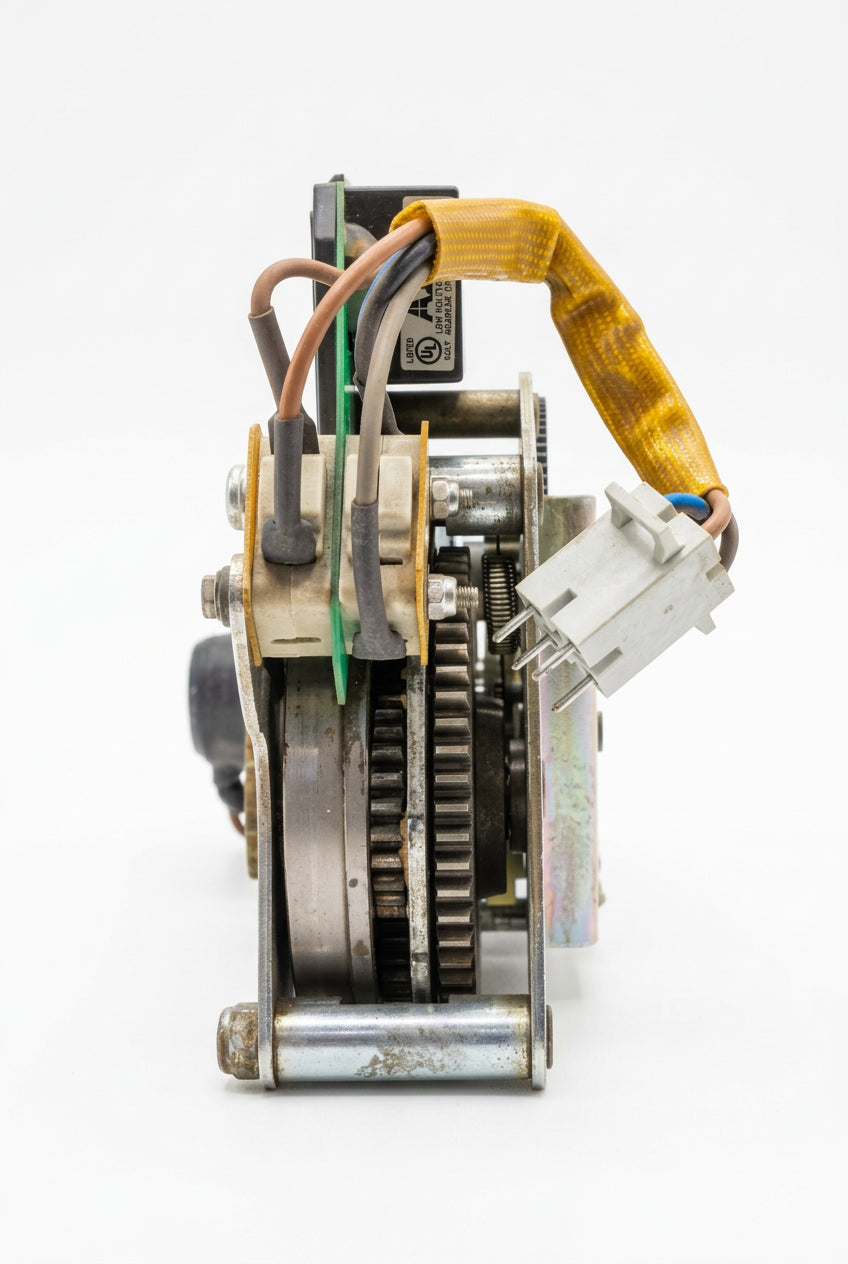

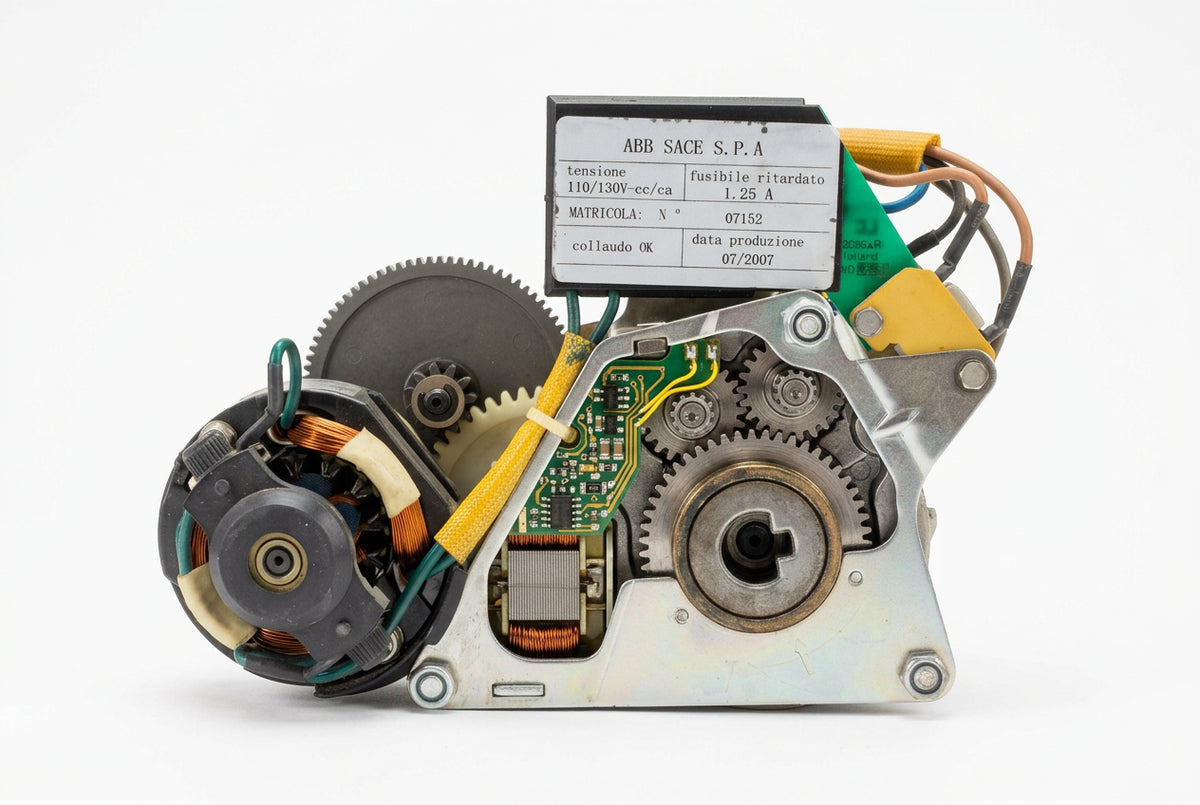

The ABB 1SDA038323R1 is a geared motor operator designed to automatically charge the closing springs of compatible SACE Emax and Tmax T low-voltage circuit breakers. Operating on a 100–130 V AC/DC supply, it supports remote breaker operation and includes electrical indication to signal when the closing springs are charged.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Circuit Breaker Accessories |
| Part Number | 1SDA038323R1 |
| Subcategory | Motor Operators |
| Product Type | Geared motor operator |
| Application | Automatic closing-spring charging |
| Supply Voltage | 100–130 V AC/DC |
| Frequency | 50/60 Hz |
| Compatible Breaker Frames | E1, E2, E3, E4, E6, T8 |
| Charged-Spring Indication | Limit contact and microswitch |
| Required Fuse | 1.25 A time-delay fuse |
| Net Weight | 2.20 lb |
Information About 1SDA038323R1
The 1SDA038323R1 is a circuit breaker accessory in ABB’s Emax range of low-voltage power distribution equipment. Its geared motor mechanism automatically charges the breaker’s closing springs, reducing the need for manual charging. The unit is designed for compatible E1, E2, E3, E4, E6, and T8 breaker frames. A limit contact and microswitch provide electrical indication when the springs are fully charged.
Key Features:
-
Automatic Spring Charging: Motorizes the charging of circuit breaker closing springs.
-
100–130 V AC/DC Supply: Supports the specified AC or DC control supply range.
-
Emax Compatibility: Designed for compatible ABB SACE Emax circuit breakers.
-
Tmax T Compatibility: Suitable for specified Tmax T8 applications.
-
Charged-Spring Indication: Includes electrical signaling when the springs are charged.
-
Limit Contact: Supports breaker mechanism status indication.
-
Geared Motor Mechanism: Provides powered spring charging for remote operation.
-
Industrial Accessory: Designed for integration into compatible low-voltage breaker assemblies.
The ABB 1SDA038323R1 delivers automatic spring charging and status indication for compatible industrial circuit breaker systems.
