ABB 1SVR011700R0000 CC-E/STD Universal Analog Signal Converter
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1SVR011700R0000
Description
The ABB 1SVR011700R0000 is a universal analog signal converter that adapts voltage and current signals between field devices and control equipment. Operating from a 24 VDC supply, it provides three-way electrical isolation between the input, output, and power supply circuits. Its selectable ranges support signal matching in industrial monitoring and automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Signal Conditioning |
| Part Number | 1SVR011700R0000 |
| Subcategory | Analog Signal Converters |
| Product Range | CC-E |
| Type Designation | CC-E/STD |
| Rated Supply Voltage | 24 VDC |
| Input Voltage Ranges | 0–5 V; 0–10 V |
| Input Current Ranges | 0–20 mA; 4–20 mA |
| Output Voltage Ranges | 0–5 V; 0–10 V |
| Output Current Ranges | 0–20 mA; 4–20 mA |

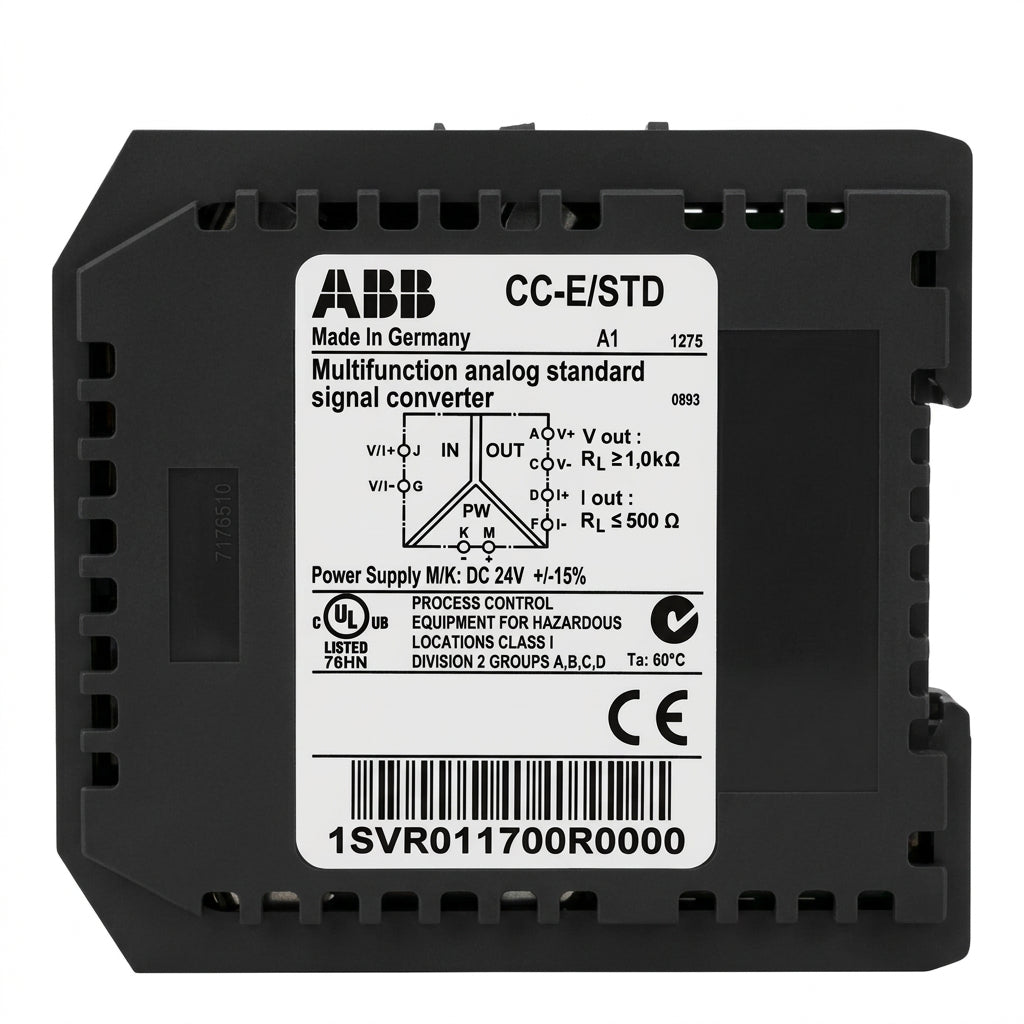

| Electrical Isolation | Three-way isolation between input, output, and supply |
| Range Configuration | Lateral DIP switches |
| Calibration Adjustment | Front-mounted gain and offset potentiometers |
| Power Indication | Green LED |
| Dimensions (W × H × D) | 22.5 × 75 × 107 mm |
| Weight | 0.088 kg (0.194 lb) |
Information About 1SVR011700R0000

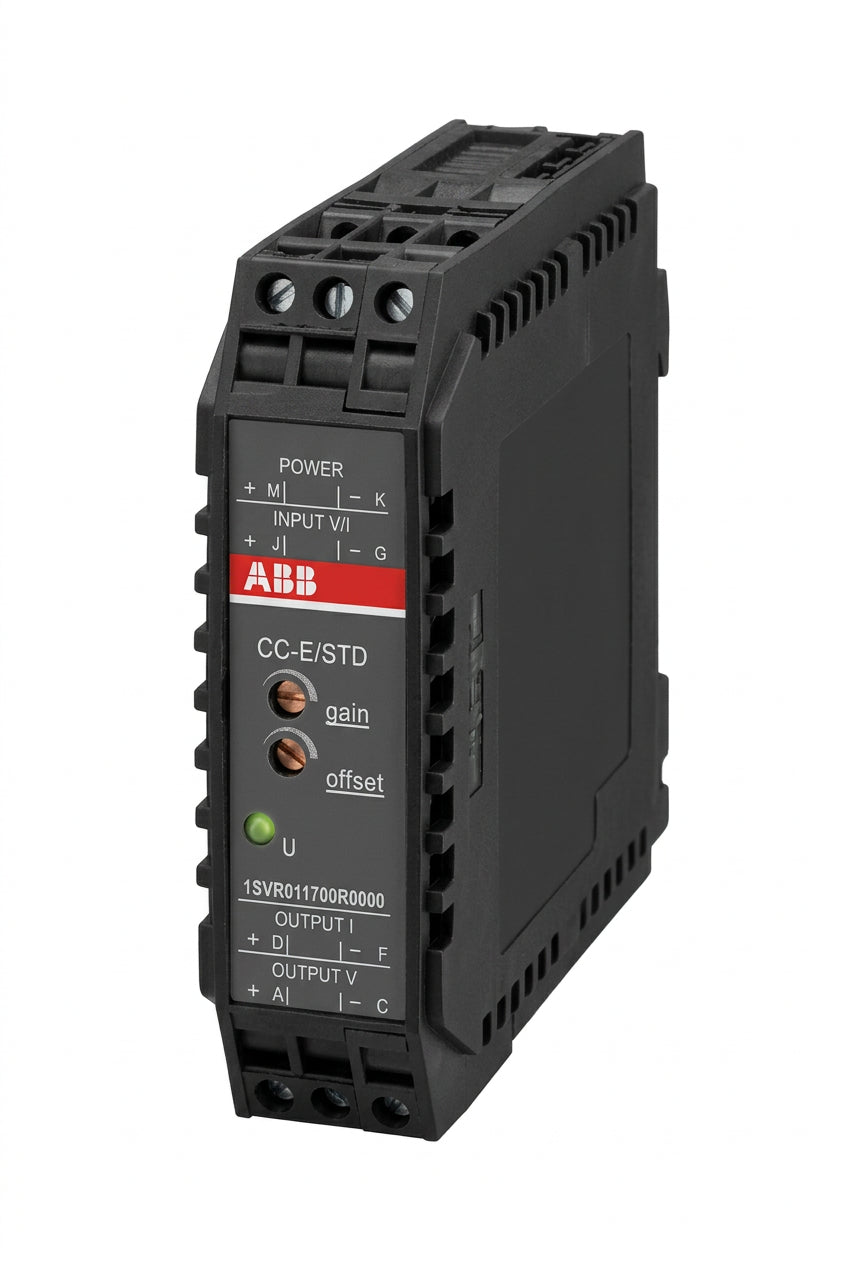

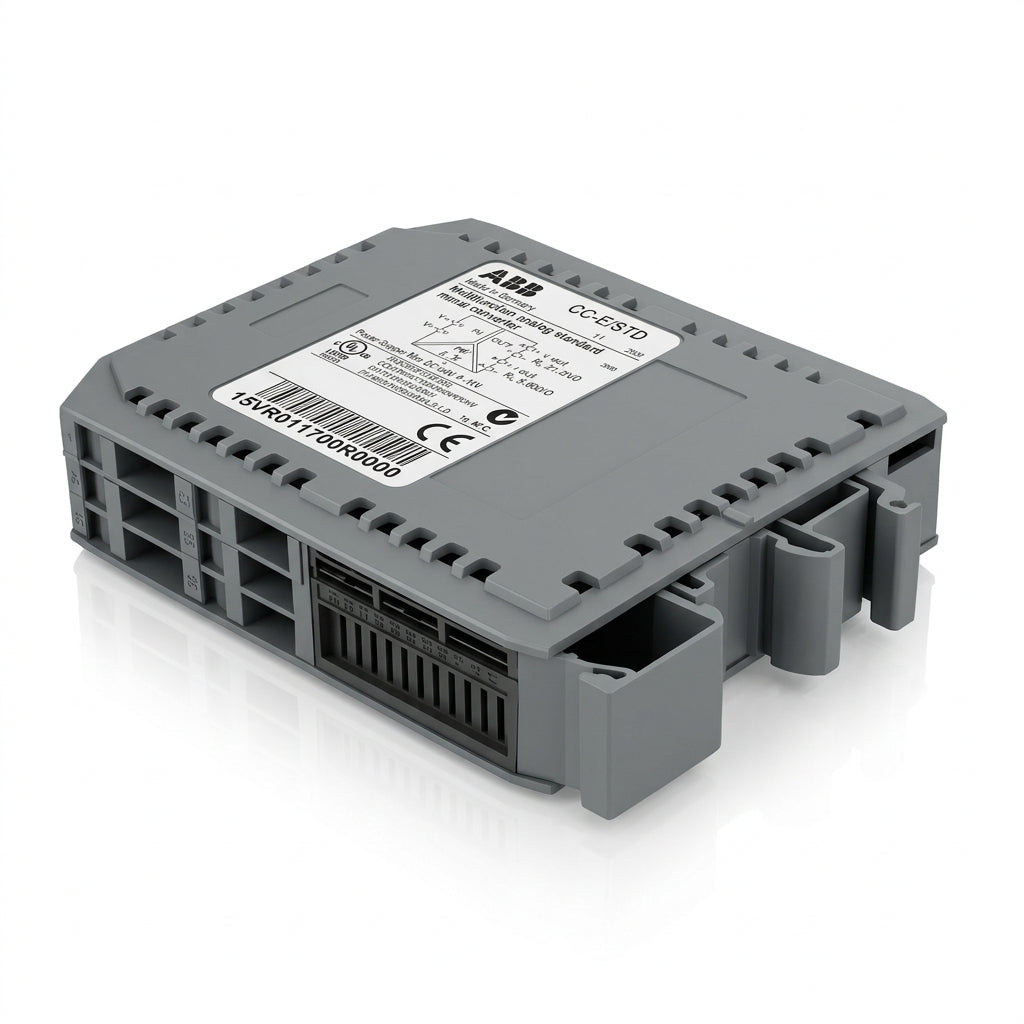

The 1SVR011700R0000 is part of ABB’s CC-E range and carries the CC-E/STD product designation. Its 22.5 mm-wide housing provides a compact interface for installations requiring analog signal conditioning. Side-accessible DIP switches select the input and output ranges, while front-mounted potentiometers adjust gain and offset. A green LED indicates applied supply voltage, helping personnel check power status during commissioning and maintenance.
Key Features:
- Universal Signal Conversion: Adapts standard analog voltage and current signals to the receiving equipment’s required range.
- Selectable Inputs: Accepts 0–5 V, 0–10 V, 0–20 mA, or 4–20 mA input signals.
- Selectable Outputs: Provides 0–5 V, 0–10 V, 0–20 mA, or 4–20 mA output signals.
- Three-Way Isolation: Electrically separates the input, output, and supply circuits.
- DIP Switch Configuration: Allows input and output range selection through accessible lateral switches.
- Gain and Offset Adjustment: Uses front-mounted potentiometers to fine-tune signal scaling.
- Supply Status Indication: Displays the presence of operating power through a green LED.
- Compact Housing: Measures 22.5 mm wide for installations with limited panel space.
The 1SVR011700R0000 delivers the reliability and precision required for isolated analog signal conversion in industrial control systems.
