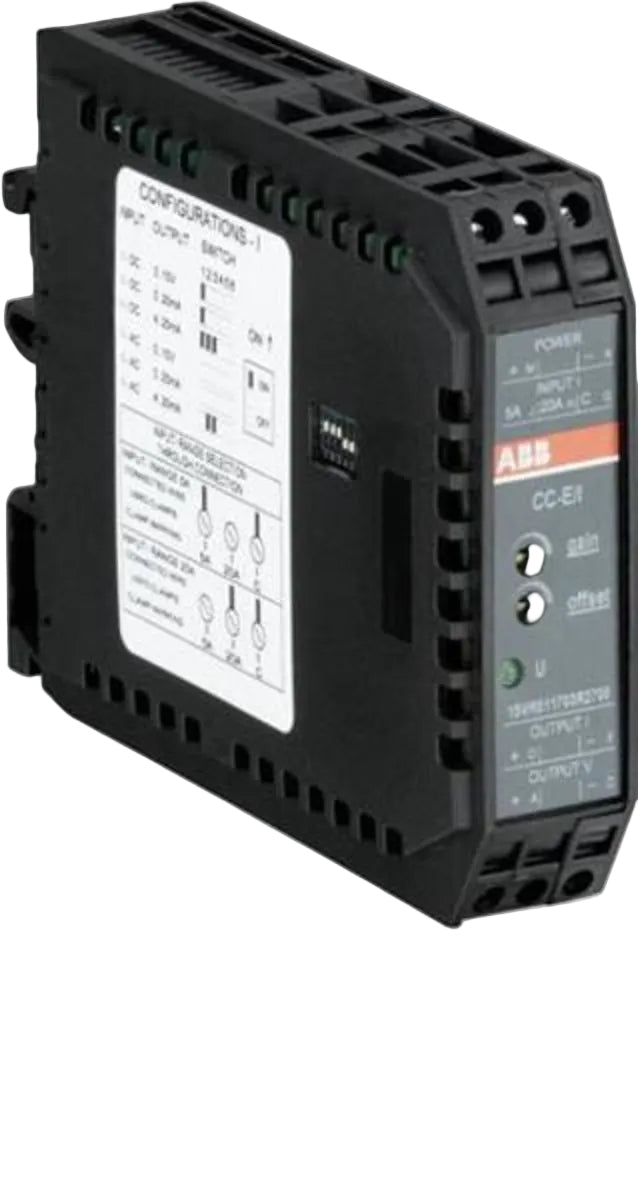

ABB 1SVR011772R2300 CC-E IAC/I AC Current Signal Converter
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1SVR011772R2300
Description
The ABB 1SVR011772R2300 is a CC-E IAC/I current measuring converter designed to convert an AC current input into a standardized 4–20 mA analog output. It accepts selectable 0–5 A or 0–20 A AC input signals and operates from a 24 VDC control supply, making it suitable for industrial measurement, monitoring, and control applications. The converter provides electrical isolation between the input, output, and supply circuits and is designed for DIN-rail installation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Industrial Automation |
| Part Number | 1SVR011772R2300 |
| Subcategory | Signal Converters |
| Product Type | Analog Current Measuring Converter |
| Type Designation | CC-E IAC/I |
| Input Signal | 0–5 A / 0–20 A AC |
| Output Signal | 4–20 mA |
| Control Supply Voltage | 24 VDC |
| Electrical Isolation | Three-way galvanic isolation |
| Isolation Rating | 1.5 kV |
| Mounting | DIN Rail |
| Protection Rating | IP20 |
| Dimensions | 22.5 × 75 × 107 mm |
| Operating Temperature | -20 to +60°C |
| Application | AC Current Measurement and Signal Conversion |
| EAN | 4013614352225 |
| Weight | 0.203 lb |
Information About 1SVR011772R2300
The 1SVR011772R2300 belongs to ABB's CC-E range of analog signal converters and is designated as the CC-E IAC/I current converter. It measures sinusoidal AC current and provides two selectable input ranges, 0–5 A and 0–20 A AC, with a standardized 4–20 mA output signal. The device uses a 24 VDC control supply and provides three-way electrical isolation between the input, output, and supply circuits, with isolation specified at 1.5 kV. Its compact housing is designed for DIN-rail mounting and measures approximately 22.5 mm wide, 75 mm high, and 107 mm deep.
Key Features:
- AC Current Measurement: Converts sinusoidal AC current signals into a standardized analog output for monitoring and control applications.
- Selectable Input Range: Supports 0–5 A AC and 0–20 A AC input ranges through the appropriate terminal connection.
- 4–20 mA Output: Provides a standardized current output signal suitable for PLCs, controllers, monitoring equipment, and instrumentation.
- 24 VDC Supply: Operates from a 24 VDC control supply for integration into industrial control panels.
- Three-Way Electrical Isolation: Provides galvanic isolation between the input, output, and supply circuits to separate the connected signal paths.
- DIN-Rail Mounting: Uses a compact enclosure designed for installation on standard DIN rails inside control cabinets.
- Front Adjustment Controls: Includes adjustment and operating elements on the front side for convenient configuration and operation.
- Compact Construction: Measures approximately 22.5 × 75 × 107 mm, allowing installation where panel space is limited.
The 1SVR011772R2300 delivers the signal conversion and electrical isolation required for AC current measurement, industrial process monitoring, instrumentation, and control-panel applications.
