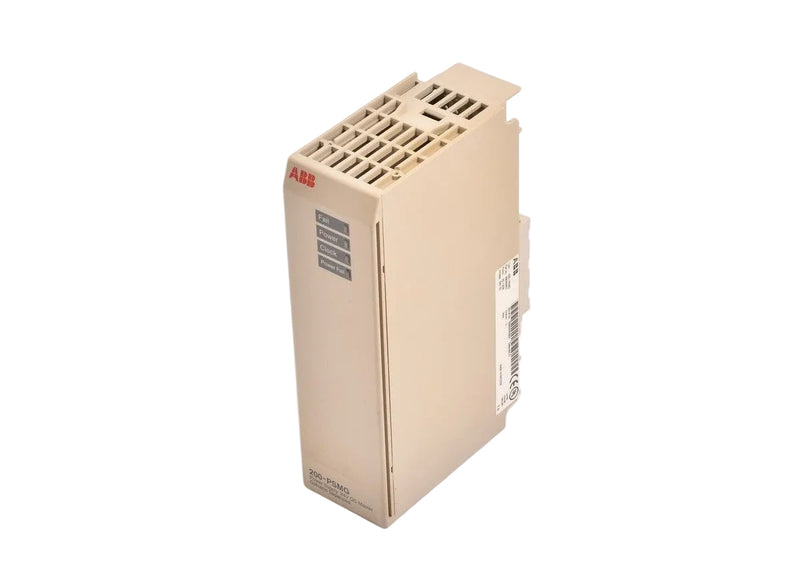

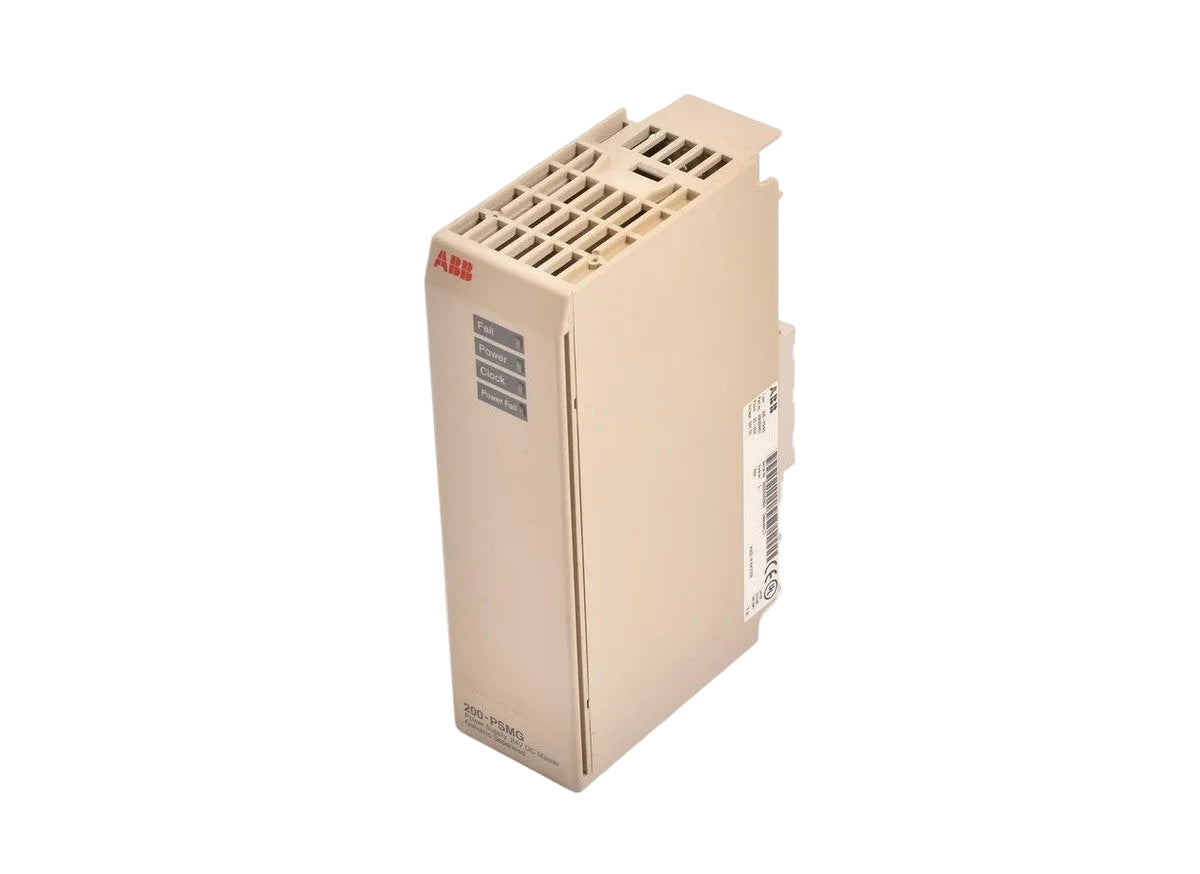

ABB 200-PSMG Series 200 Master Power Supply Module
- Regular price
- $755.00
- Sale price
- $755.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 200-PSMG
Description
ABB 200-PSMG is the master internal power supply unit for the ABB Series 200 central control system. It accepts an external 24 VDC supply and generates a galvanically isolated 7–9 VDC output for supplying the central system and associated I/O units.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Industrial Automation |
| Part Number | 200-PSMG |
| Subcategory | Power Supply Modules |
| Product Type | Series 200 Master Power Supply Unit |
| Input Voltage | 24 VDC |
| Input Range | 19.2–30 VDC |
| Maximum Input Current | 1.3 A |
| Output Voltage | 7–9 VDC |
| Maximum Output Current | 2.2 A |
| Output Current with PSSG | 1.8 A |
| Galvanic Isolation | 500 VAC RMS between input and output |
| Power-Fail Detection | Yes |
| Input Fuse | 2 A slow-blow |
| Inrush Current | Maximum 4 A for 10 ms |
| Dimensions | 45 × 163 × 91 mm |
| Mounting | ABB Series 200 backplane |
| Weight | 0.17 kg |
Information About 200-PSMG
The 200-PSMG is part of ABB’s Series 200/SattCon 200 central automation platform and functions as the primary internal power supply. Only one 200-PSMG is used as the master supply in a system, while additional 200-PSSG units can be installed when higher capacity or redundancy is required. The unit includes power-fail detection that senses loss of the 24 VDC input and provides a power-fail signal to the control system. Its regulated output is distributed through the system backplane to compatible central-system and I/O modules.
Key Features:
- Master Power Supply: Provides the primary internal power source for the Series 200 central system.
- 24 VDC Input: Accepts an external 24 VDC supply within the specified input range.
- Isolated Output: Generates a galvanically isolated 7–9 VDC system supply.
- 2.2 A Output: Provides up to 2.2 A output current under the specified operating configuration.
- Power-Fail Detection: Detects 24 VDC supply failure and provides a dedicated PF output.
- System Distribution: Supplies compatible central-system and I/O modules through the backplane.
- Status Indicators: Includes LEDs for power, clock, initialization/fail, and power-fail status.
- Series 200 Compatibility: Designed specifically for ABB Series 200 automation systems.
The 200-PSMG delivers the reliability and precision required for internal power distribution and control-system operation in ABB Series 200 automation systems.
